1. What is the main function of the 1734-EPAC module?

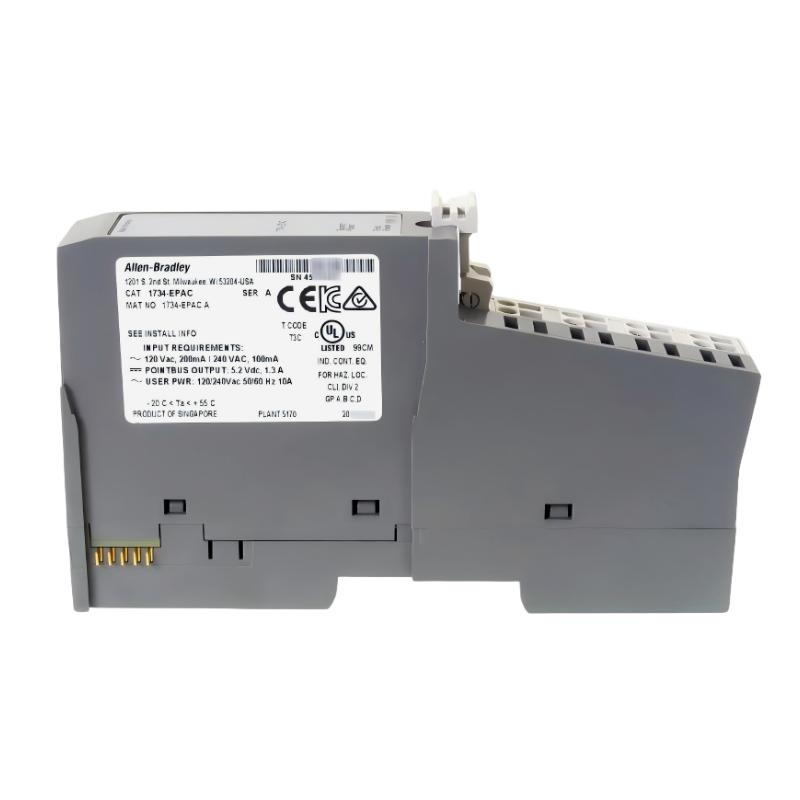

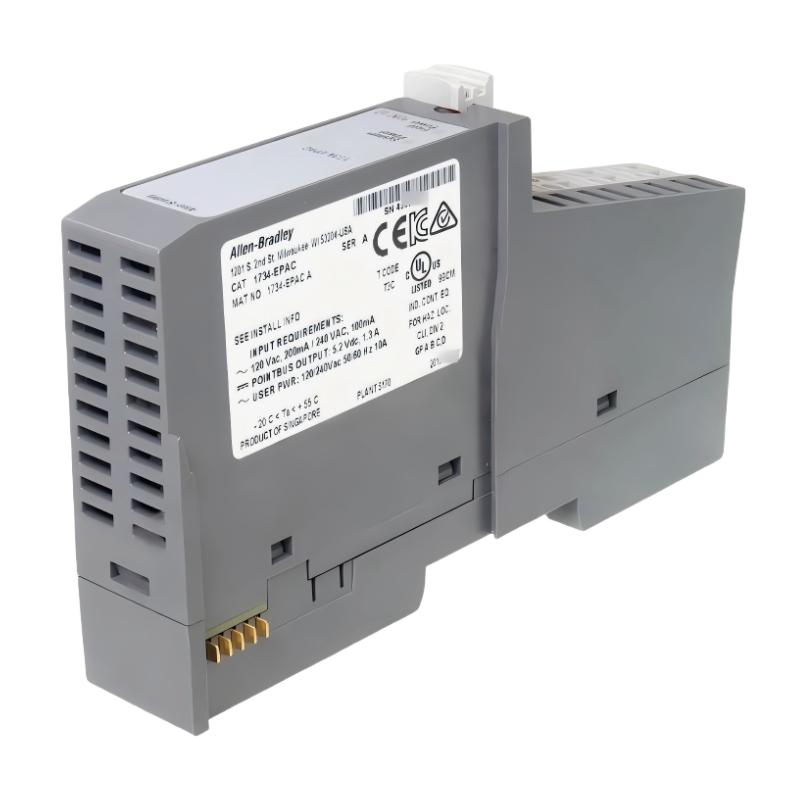

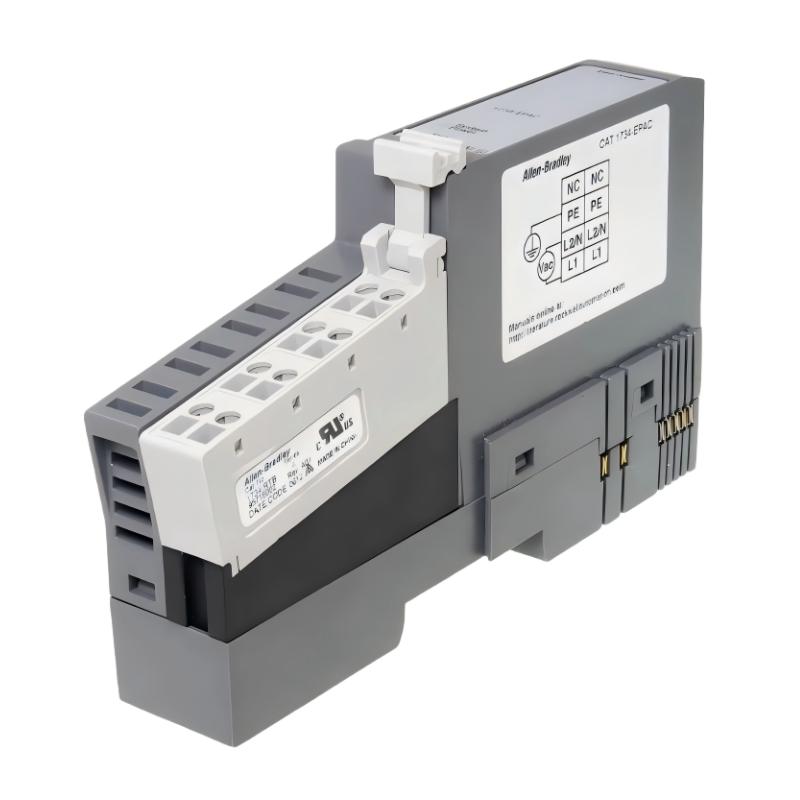

The 1734-EPAC is an AC extended power supply module designed for the Allen-Bradley POINT I/O system. Its main function is to bring AC power into the I/O assembly and distribute it across multiple power segments. It enables scalable power architecture so that larger I/O systems can be reliably supplied without overloading a single power source.

2. How is this AC version different from DC power modules?
Unlike DC versions that require a 24V DC input, the EPAC module operates directly from AC power. This makes it suitable for installations where AC mains power is readily available in the control cabinet, reducing the need for additional DC power supplies in certain system designs.

3. Why is power segmentation important in POINT I/O systems?
Power segmentation divides a large I/O system into multiple independently powered sections. If a fault such as overload or short circuit occurs in one segment, it is isolated and does not affect the entire system. This improves system resilience and reduces downtime in industrial applications.

4. What systems is this module compatible with?
The 1734-EPAC is designed for use with the Allen-Bradley POINT I/O platform. It works with a wide range of I/O modules including digital, analog, and specialty modules, making it suitable for flexible and scalable distributed control architectures.

5. What should be considered during installation?
The module must be installed on a DIN rail inside a properly ventilated industrial control cabinet. Proper AC wiring practices must be followed, and the module should be kept separate from high-voltage or high-noise cables to reduce electromagnetic interference and ensure stable operation.

6. How does power segmentation improve system reliability?
By isolating different I/O groups into separate power domains, the system ensures that electrical faults remain confined to a single segment. This prevents cascading failures and allows the rest of the system to continue operating normally, improving overall uptime.

7. Can this module be replaced while the system is running?
Depending on the system configuration and safety requirements, limited maintenance operations may be possible. However, in most industrial environments, power-down procedures are recommended before replacement to ensure operator safety and system integrity.

8. What happens if the module fails?
If the 1734-EPAC fails, only the associated power segment is affected. Other segments of the POINT I/O system continue to operate normally. This segmented architecture helps maintain partial system functionality even during component failures.
