1. What is the main function of the 1734-TOP3?

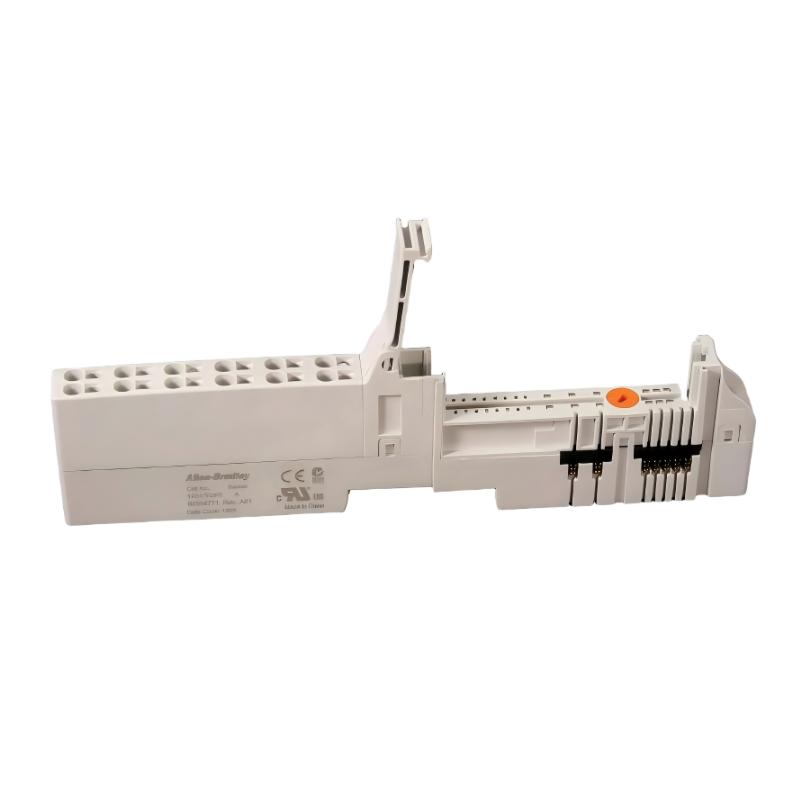

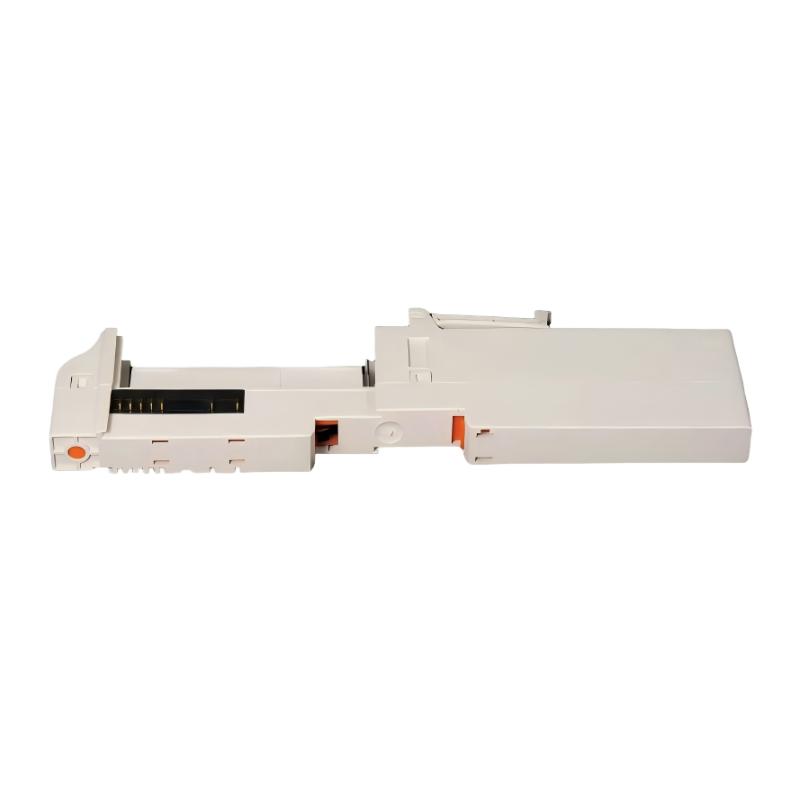

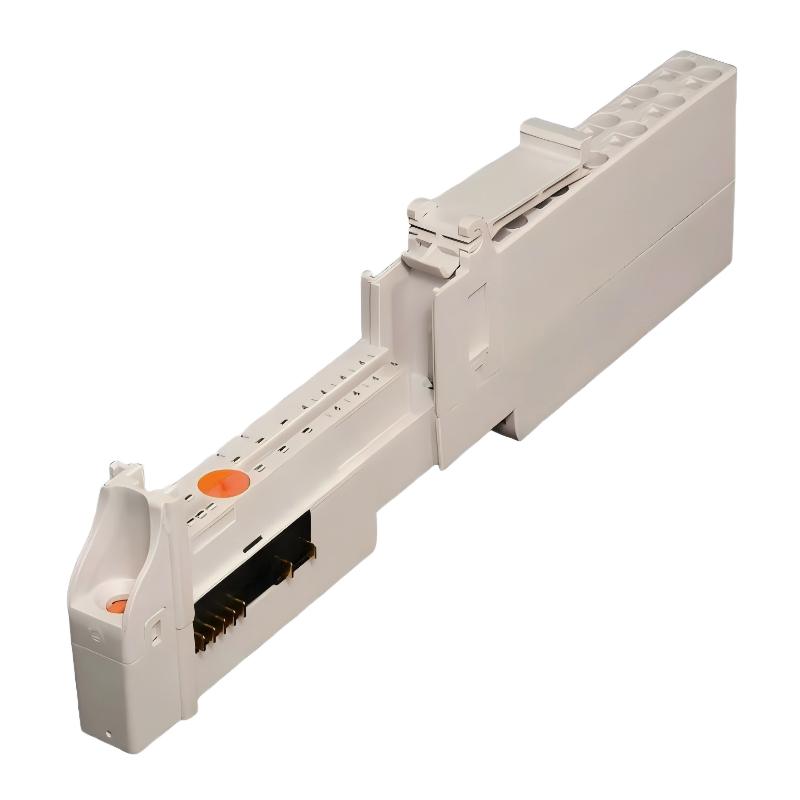

The 1734-TOP3 is a terminal base used in the Allen-Bradley POINT I/O system. Its main function is to provide a secure electrical interface for I/O modules, including signal, power, and communication connections. It acts as the physical termination point for field wiring, ensuring stable and organized connections between field devices and the I/O system.

2. Why is a terminal base used in POINT I/O systems?
The terminal base separates field wiring from the electronic I/O module. This design allows technicians to replace or upgrade I/O modules without disturbing existing wiring. It significantly reduces downtime, simplifies maintenance, and minimizes the risk of wiring errors during service operations.

3. What types of signals can be connected through this terminal base?
The 1734-TOP3 supports connections for digital input/output signals and certain analog signals, depending on the installed I/O module. It provides standardized terminal points that ensure consistent wiring practices across different industrial applications.

4. What should be considered during installation?
The terminal base must be securely mounted on a DIN rail inside a properly grounded control cabinet. All wiring should follow the recommended industrial wiring standards, with attention to correct terminal assignment, tight connections, and proper cable management to avoid signal instability.

5. Does module replacement require rewiring?
No. One of the key advantages of the 1734-TOP3 design is that it allows I/O modules to be replaced without removing field wiring. The electronic module can be unplugged from the base while all wiring remains intact, significantly improving maintenance efficiency.

6. What role does this component play in the system architecture?
In a POINT I/O system, the 1734-TOP3 serves as the physical connection layer between field devices and the I/O electronics. It ensures reliable signal transfer while providing mechanical stability and standardized wiring distribution for modular I/O systems.

7. Can the terminal base be reused?
Yes. The terminal base is designed as a reusable mechanical component. As long as the terminals and contacts remain in good condition, it can support multiple cycles of I/O module replacement without degradation in performance.

8. What are common wiring issues that may occur?
Common issues include loose terminal connections, incorrect wiring sequence, insufficient torque on screw terminals, and improper shielding practices. These issues can lead to unstable signals, communication errors, or intermittent I/O faults if not properly addressed during installation.
