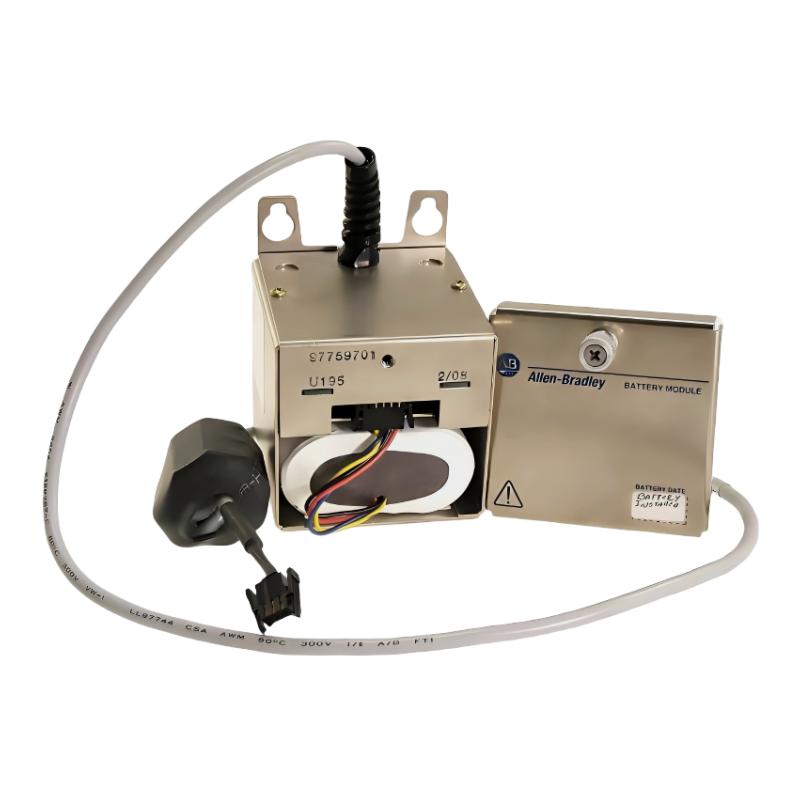

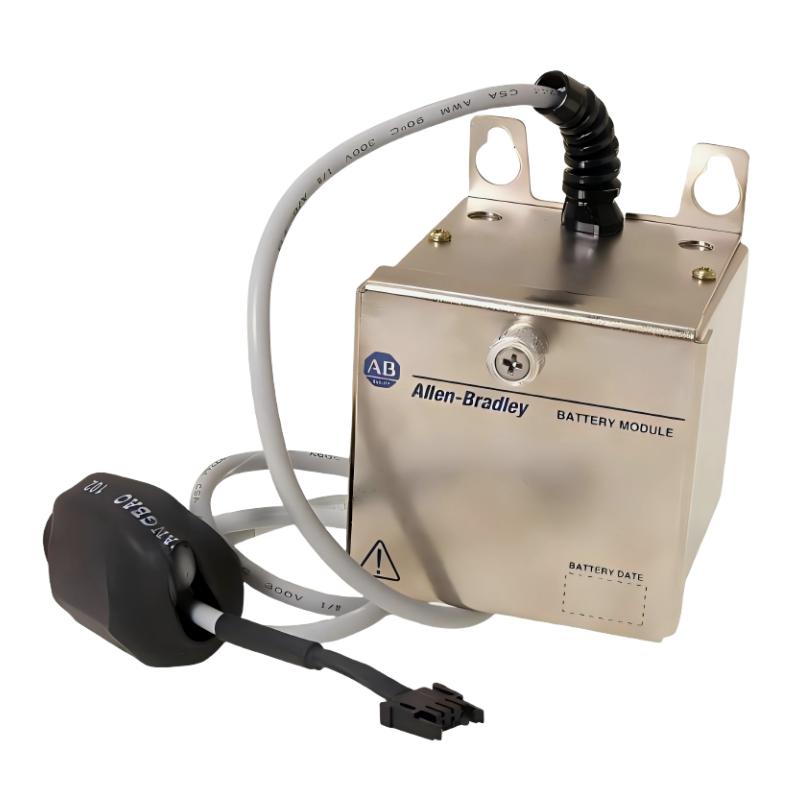

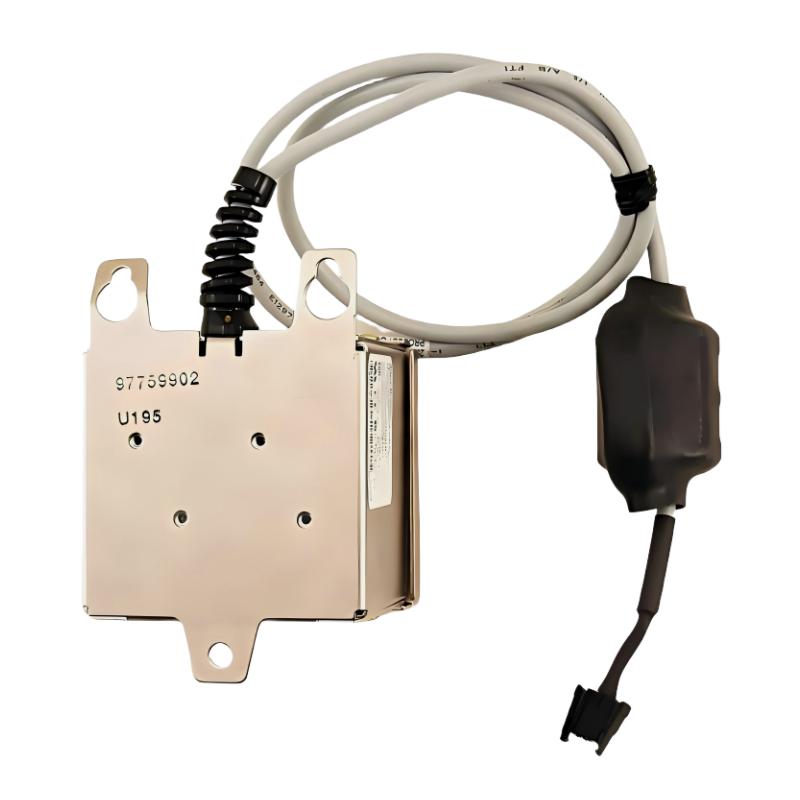

Allen Bradley 1756-BATM ControlLogix Battery Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | ControlLogix Battery Module |
| Brand | Allen-Bradley |
| Model | 1756-BATM |
| Product Type | Controller battery module |
| Main Function | Provides backup power for retaining controller memory data |
| Application | Industrial automation, ControlLogix systems |
| System Compatibility | Allen-Bradley ControlLogix platform |
| Battery Type | Industrial backup battery pack |
| Function Purpose | Memory retention for controller and system data during power loss |
| Installation Type | Module or rack-mounted installation (system dependent) |
| Replacement Feature | Hot-replaceable depending on system configuration |
| Monitoring Function | Battery status monitoring support via system diagnostics |
| Safety Function | Prevents data loss during power interruption |
| Operating Environment | Industrial control cabinet environment |
| Structure Type | Auxiliary power support module |
| Dimensions | 105.7 × 74.9 × 86.4 mm |
| Weight | 1.07 kg |
FAQ
1. What is the main function of the 1756-BATM battery module?
The 1756-BATM is designed to provide backup power for ControlLogix controllers, ensuring that critical system data such as program memory, configuration settings, and runtime information are preserved during power interruptions. It acts as a safeguard against data loss in industrial automation systems.
2. Why is a battery module needed in a ControlLogix system?
In many control systems, volatile memory is used to store runtime data. Without backup power, this information could be lost during a power failure. The battery module ensures continuity by maintaining memory integrity until normal power is restored.
3. What happens if the battery module fails or is depleted?
If the battery module fails or is exhausted, the controller may lose retained memory data during a power outage. This can result in loss of program state, configuration parameters, or system diagnostics, requiring reinitialization after power restoration.
4. Can the battery module be replaced during operation?
In many ControlLogix configurations, the battery module can be replaced without shutting down the entire system. However, replacement procedures should always follow manufacturer guidelines to avoid data loss or system interruption.
5. How is battery status monitored?
The ControlLogix system provides diagnostic functions that can monitor battery health. When the battery approaches depletion or failure conditions, the system typically generates warnings or alarms to notify maintenance personnel.
6. How long does the battery typically last?
Battery lifespan depends on operating conditions, system usage, and environmental factors. In general, industrial batteries are designed for long-term service, but periodic inspection and preventive replacement are recommended to ensure reliability.
7. What maintenance is required for this module?
Maintenance typically includes regular inspection of battery status indicators, system diagnostic checks, and scheduled replacement based on manufacturer recommendations. Ensuring proper storage conditions before installation also helps maintain battery performance.
8. What environmental factors can affect battery performance?
High temperature, humidity, and long-term storage conditions can significantly impact battery life and performance. To ensure reliability, the module should be installed in a controlled industrial environment within the recommended operating conditions.
Allen Bradley 1756-BATM ControlLogix Battery Module is in stock. Please contact us for a quick quote and competitive pricing.
