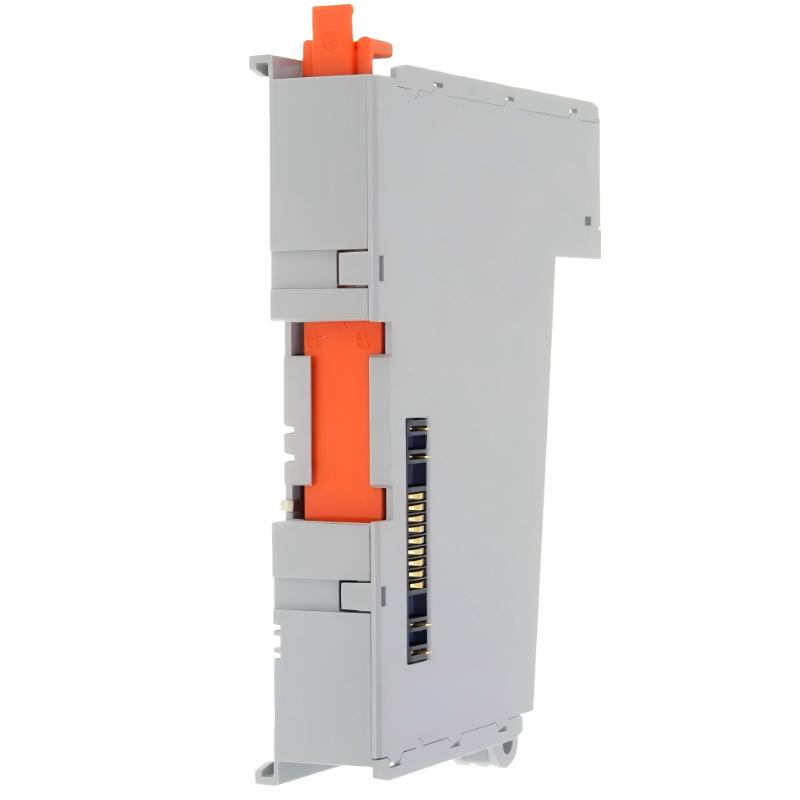

Allen Bradley 5069-OW16 Industrial Equipment
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | 5069-OW16 |
| Manufacturer | Allen-Bradley |
| Product Type | Compact 5000 Digital Output Module |
| Product Series | Compact 5000 I/O |
| Module Type | Relay Output Module |
| Number of Outputs | 16 Outputs |
| Output Type | Relay (Dry Contact) |
| Contact Configuration | Normally Open (NO) |
| Output Voltage Rating | 5–125V DC / 5–265V AC |
| Output Current Rating | 2.0 A per point (resistive load) |
| Grouping | 2 groups of 8 outputs |
| Isolation Voltage | 250V continuous (channel-to-backplane) |
| Response Time | ON: ~10 ms / OFF: ~10 ms |
| Contact Material | Silver alloy |
| Electrical Life | Dependent on load (mechanical & electrical wear) |
| Mechanical Life | ~20 million operations |
| Power Supply | 18–32V DC |
| Power Consumption | ~160 mA @ 24V DC |
| Power Dissipation | ~4.0 W |
| Wiring Type | Removable terminal block (RTB) |
| Module Diagnostics | Per-point status indication |
| Indicators | 1 module status LED + 16 channel LEDs |
| Mounting | DIN rail |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5%–95% non-condensing |
| Vibration | 5 G @ 10–500 Hz |
| Shock | 30 G operating |
| Dimensions (H × W × D) | 144.57 × 22 × 105.42 mm |
| Weight | Approx. 175 g |
| Application | Industrial switching control (solenoids, contactors, alarms, small loads) |
| Lifecycle Status | Active |
FAQ
Q1: What is the 5069-OW16 used for?
A1: It is a 16-channel relay output module used to switch AC/DC loads such as contactors, solenoids, and indicator devices in industrial systems.
Q2: What type of output does it provide?
A2: It provides dry-contact relay outputs, meaning it does not supply voltage itself but switches external power circuits.
Q3: Can it switch both AC and DC loads?
A3: Yes, it supports both AC and DC loads within its rated voltage and current limits.
Q4: What is the advantage of relay outputs?
A4: Relay outputs provide electrical isolation and flexibility to control different voltage levels compared to transistor outputs.
Q5: What is its typical industrial application?
A5: It is commonly used in machine control panels, alarm systems, motor starters, and general-purpose switching applications.
Allen Bradley 5069-OW16 Industrial Equipment is in stock. Please contact us for a quick quote and competitive pricing.
