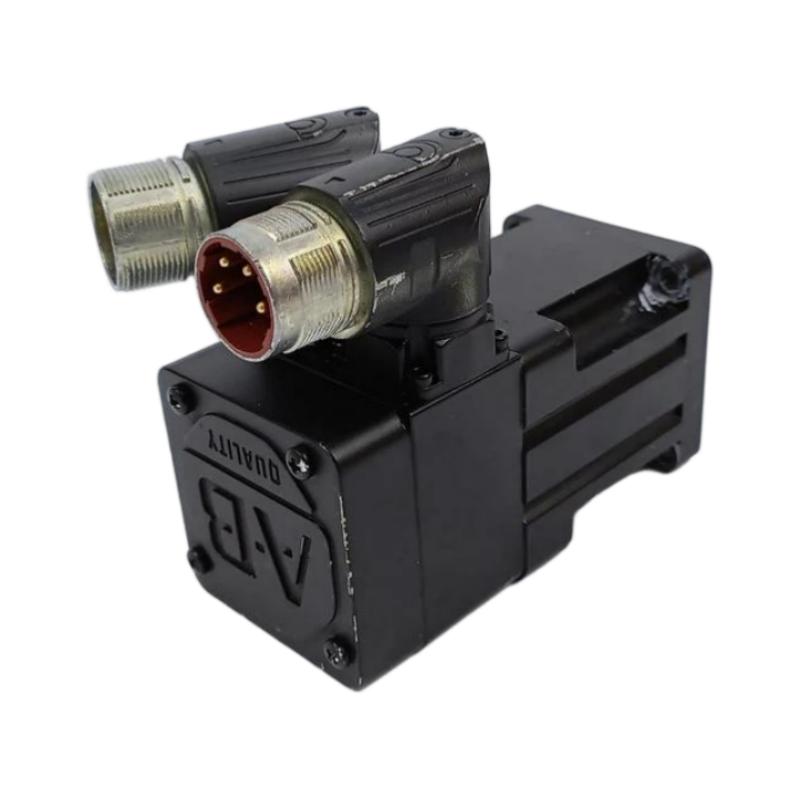

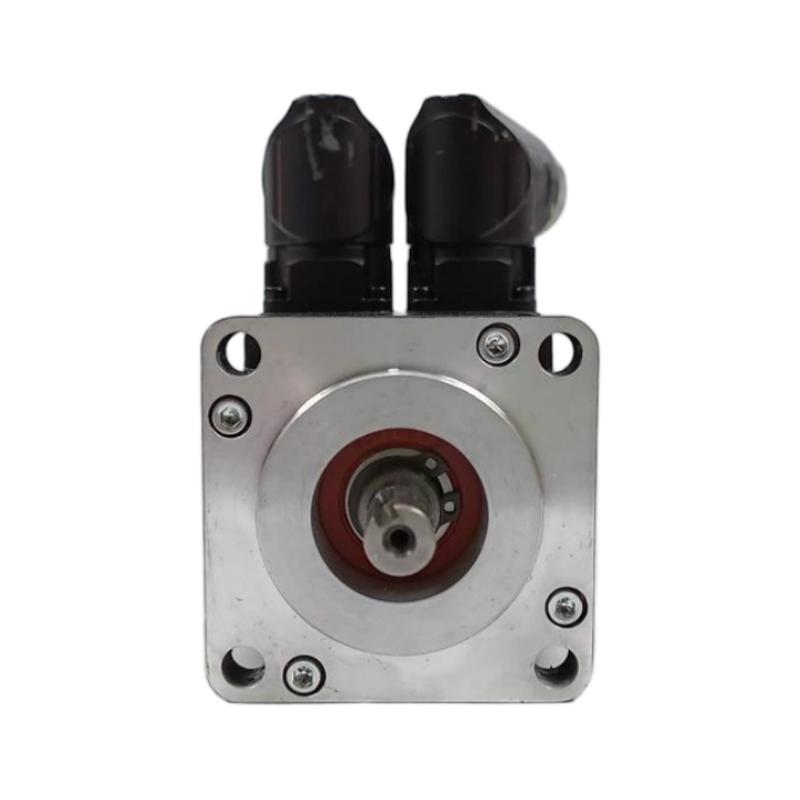

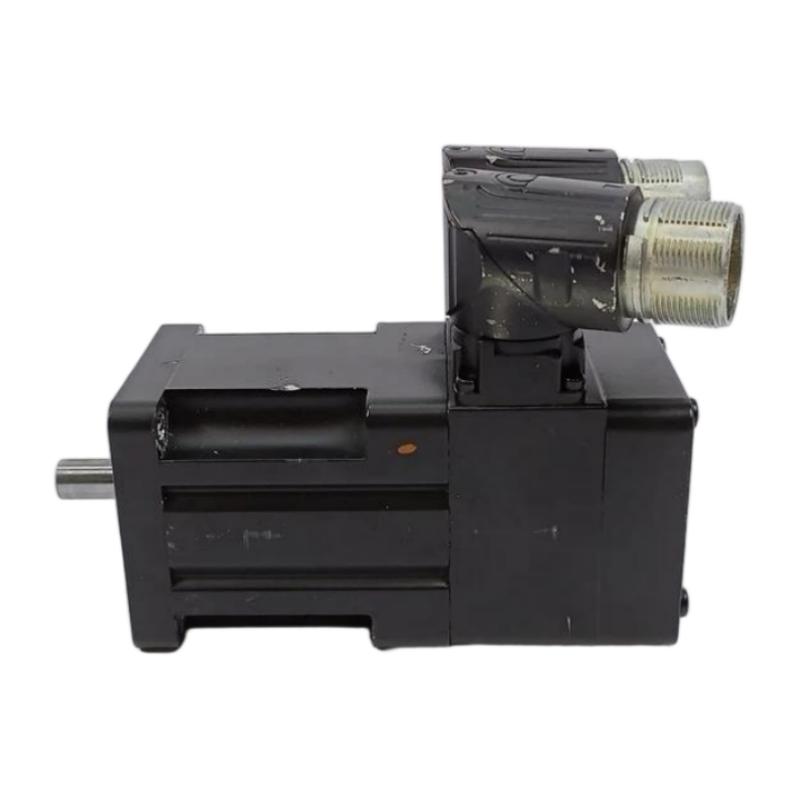

Allen-Bradley MPL-B320P-MK74AA Low-Inertia AC Servo Motor
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Allen-Bradley MPL-B320P-MK74AA Low-Inertia AC Servo Motor
Technical Specifications
The Allen-Bradley MPL-B320P-MK74AA is a low-inertia brushless AC servo motor in the MP-Series MPL family. It is designed for industrial motion control applications that require accurate positioning, fast response, and reliable speed regulation. This model features a keyless shaft, multi-turn absolute feedback, and an integrated 24V DC holding brake, making it suitable for automated machinery and precision manufacturing equipment.
| Parameter | Specification |
|---|---|
| Brand | Allen-Bradley |
| Model | MPL-B320P-MK74AA |
| Product Type | Low-Inertia Brushless AC Servo Motor |
| Product Series | MP-Series MPL |
| Motor Type | Permanent Magnet Rotary Servo Motor |
| Rated Voltage | 460 V AC |
| Voltage Class | 400 V Class |
| Rated Power | 1.5 kW |
| Rated Speed | 5,000 RPM |
| Maximum Speed | 5,000 RPM |
| Continuous Stall Torque | 3.05 Nm |
| Peak Torque | 7.91 Nm |
| Frame Size | 100 mm |
| Magnet Stack Length | 50.8 mm |
| Feedback Type | Multi-Turn High-Resolution Absolute Encoder |
| Encoder Resolution | 1024 Sin/Cos Cycles per Revolution |
| Feedback Protocol | Hiperface |
| Shaft Type | Keyless Shaft Extension |
| Connector Type | SpeedTEC DIN Connector |
| Connector Orientation | Right Angle, 180° Rotatable |
| Holding Brake | Integrated 24 V DC Brake |
| Mounting Type | IEC Metric Flange Mount |
| Mounting Holes | Free Mounting Holes, Type FF |
| Shaft Seal | No Standard Shaft Seal |
| Protection Rating | IP50 |
| Operating Temperature | 0–40°C |
| Dimensions | 100 mm frame size × 50.8 mm magnet stack length; overall dimensions require mechanical drawing verification |
| Approximate Weight | 4.82 kg (10.63 lbs) |
| UPC | 820919980466 |
FAQ
Q1: What is the Allen-Bradley MPL-B320P-MK74AA used for?
A1: The MPL-B320P-MK74AA is designed for industrial automation and precision motion control. It can be used in packaging machinery, material handling systems, automated assembly equipment, and manufacturing applications requiring accurate positioning and controlled movement.
Q2: What is the rated speed of this servo motor?
A2: This model has a rated speed of 5,000 RPM and a maximum speed of 5,000 RPM. It supports high-speed applications that require stable and responsive motor operation.
Q3: Does the MPL-B320P-MK74AA include a holding brake?
A3: Yes. This model is equipped with an integrated 24V DC holding brake. The brake helps maintain the motor shaft position when the motor is not actively operating. The brake is intended for holding rather than routine dynamic stopping.
Q4: What type of shaft does this motor have?
A4: The MPL-B320P-MK74AA features a keyless shaft extension. This configuration is suitable for compatible couplings and mechanical transmission systems that do not require a keyed connection.
Q5: What feedback system is used in the MPL-B320P-MK74AA?
A5: It uses a multi-turn high-resolution absolute encoder with 1024 Sin/Cos cycles per revolution and Hiperface feedback. This feedback arrangement provides position information for accurate servo control.
Q6: What is the difference between MPL-B320P-MK72AA and MPL-B320P-MK74AA?
A6: The primary difference is the holding brake. The MK72AA version does not include an integrated brake, whereas the MK74AA version comes with a 24V DC holding brake. Both models feature a keyless shaft configuration.
Q7: What are the dimensions and weight of this motor?
A7: The motor has a 100 mm frame size and a 50.8 mm magnet stack length. Its approximate listed weight is 4.82 kg (10.63 lbs). The complete overall dimensions should be confirmed using the manufacturer’s mechanical drawing before installation.
Q8: What should be checked before replacing or installing the MPL-B320P-MK74AA?
A8: Confirm the motor catalog number, voltage rating, shaft configuration, encoder compatibility, connector orientation, mounting dimensions, and 24V DC brake requirements. It is also important to verify compatibility with the connected Allen-Bradley servo drive before commissioning.
Allen-Bradley MPL-B320P-MK74AA Low-Inertia AC Servo Motor is in stock. Please contact us for a quick quote and competitive pricing.
