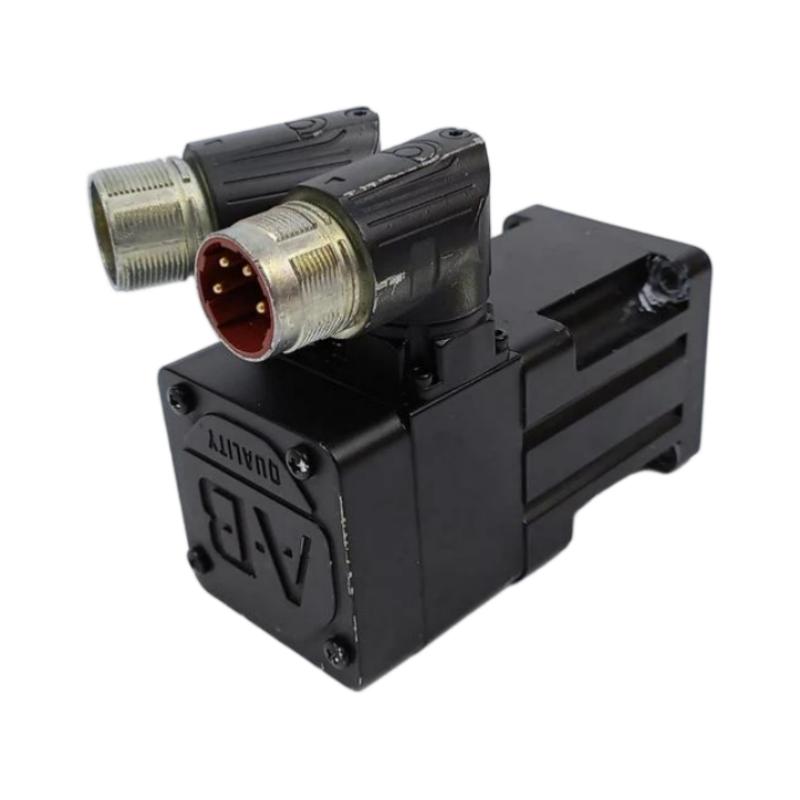

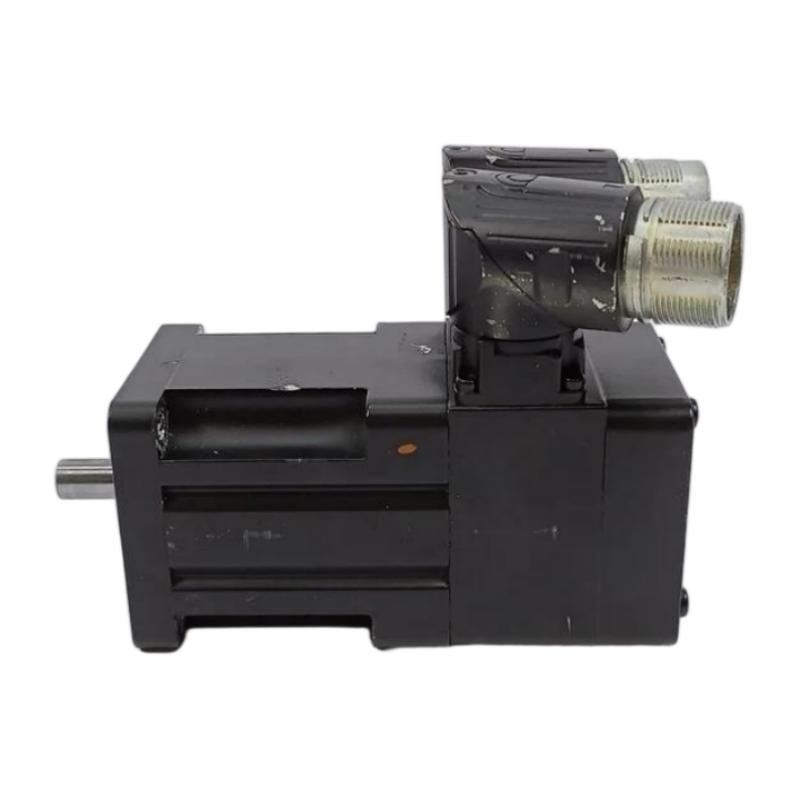

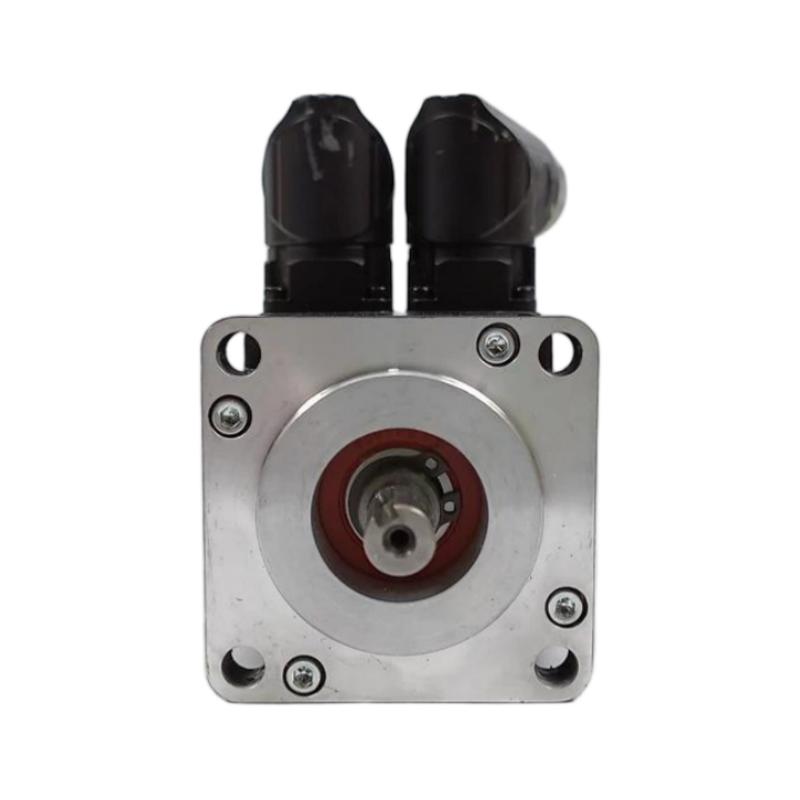

Allen-Bradley MPL-B320P-RJ22AA Low-Inertia AC Servo Motor
Technical Specifications
The Allen-Bradley MPL-B320P-RJ22AA is a low-inertia permanent magnet rotary servo motor from the MP-Series MPL family. Designed for industrial automation and precision motion control, it offers high-speed operation and reliable position feedback through a 2-pole resolver. The motor features a keyed shaft, circular bayonet connector, and compact IEC metric mounting design. It is suitable for automated machinery and manufacturing systems requiring accurate rotary motion.
| Parameter | Specification |
|---|---|
| Brand | Allen-Bradley |
| Model | MPL-B320P-RJ22AA |
| Product Type | Low-Inertia AC Brushless Servo Motor |
| Product Series | MP-Series MPL |
| Motor Type | Permanent Magnet Rotary Servo Motor |
| Voltage Class | 400 V AC |
| Armature Voltage | 460 V AC |
| Rated Power | 0.86 kW |
| Rated Speed | 5,000 RPM |
| Maximum Speed | 5,000 RPM |
| Continuous Stall Torque | 2.10 Nm |
| Peak Stall Torque | 8.20 Nm |
| Continuous Stall Current | 2.60 A |
| Peak Stall Current | 11.3 A |
| Frame Size | 100 mm |
| Magnet Stack Length | 50.8 mm (2.0 in.) |
| Feedback Type | 2-Pole Resolver |
| Shaft Type | Keyed Shaft Extension |
| Shaft Seal | No |
| Connector Type | Circular Bayonet Connector |
| Connector Orientation | Right Angle, 180° Rotatable |
| Holding Brake | No Brake |
| Mounting Type | IEC Metric Flange Mount |
| Rotor Type | Low-Inertia Permanent Magnet |
| Operating Temperature | Refer to manufacturer specifications |
| Protection Rating | Confirm according to motor configuration |
| Dimensions | 100 mm frame size × 50.8 mm magnet stack length; overall dimensions require mechanical drawing verification |
| Approximate Weight | 3.97 kg (8.75 lbs) |
FAQ
Q1: What is the Allen-Bradley MPL-B320P-RJ22AA used for?
A1: The MPL-B320P-RJ22AA is designed for industrial automation and rotary motion control applications. It is commonly used in packaging equipment, automated assembly machinery, material handling systems, and manufacturing equipment requiring accurate motor control.
Q2: What is the rated speed of the MPL-B320P-RJ22AA?
A2: This servo motor has a rated speed of 5,000 RPM. Its high-speed capability makes it suitable for machinery that requires fast and consistent rotational movement.
Q3: What type of feedback device does this motor use?
A3: The MPL-B320P-RJ22AA uses a 2-pole resolver for motor position feedback. Resolver technology provides reliable rotor position information and is suitable for industrial environments where vibration resistance and dependable operation are important.
Q4: Does the MPL-B320P-RJ22AA include an integrated holding brake?
A4: No. This model does not have an integrated holding brake. If the application requires the motor shaft to remain stationary when power is removed, an external mechanical braking solution may be necessary.
Q5: What type of shaft does the MPL-B320P-RJ22AA have?
A5: This model features a keyed shaft extension. The keyway provides a positive mechanical connection with compatible couplings, pulleys, and other transmission components.
Q6: What is the difference between MPL-B320P-RJ22AA and MPL-B320P-RJ72AA?
A6: Both models belong to the Allen-Bradley MP-Series MPL family and feature a 100 mm frame, 50.8 mm stack length, and 5,000 RPM rated speed. The RJ22AA uses a circular bayonet connector and a 2-pole resolver, while the RJ72AA uses a SpeedTEC DIN connector and a resolver. Their connector configurations and associated electrical specifications should be checked before selecting a replacement.
Q7: What are the dimensions and weight of this servo motor?
A7: The motor has a 100 mm frame size and a 50.8 mm magnet stack length. Its approximate weight is 3.97 kg (8.75 lbs). For exact overall length, shaft measurements, and mounting-hole dimensions, consult the manufacturer’s mechanical drawing.
Q8: What should be checked before replacing the MPL-B320P-RJ22AA?
A8: Before replacement, verify the complete model number, voltage class, rated speed, resolver feedback, keyed shaft dimensions, connector type, mounting arrangement, and brake configuration. The replacement motor should also be compatible with the existing Allen-Bradley servo drive to ensure proper operation.
