Technical Specifications

FAQ

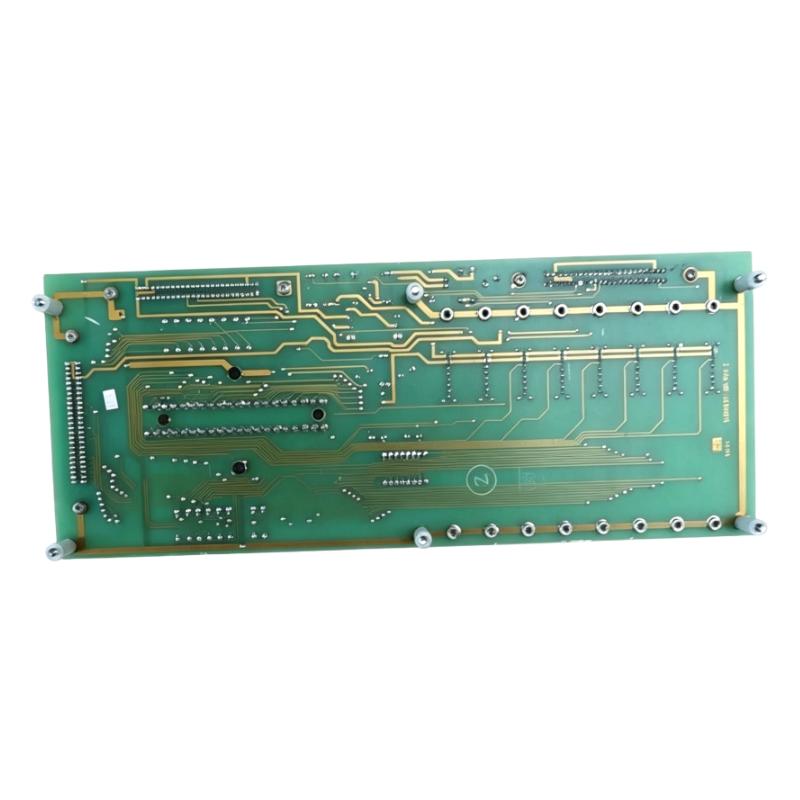

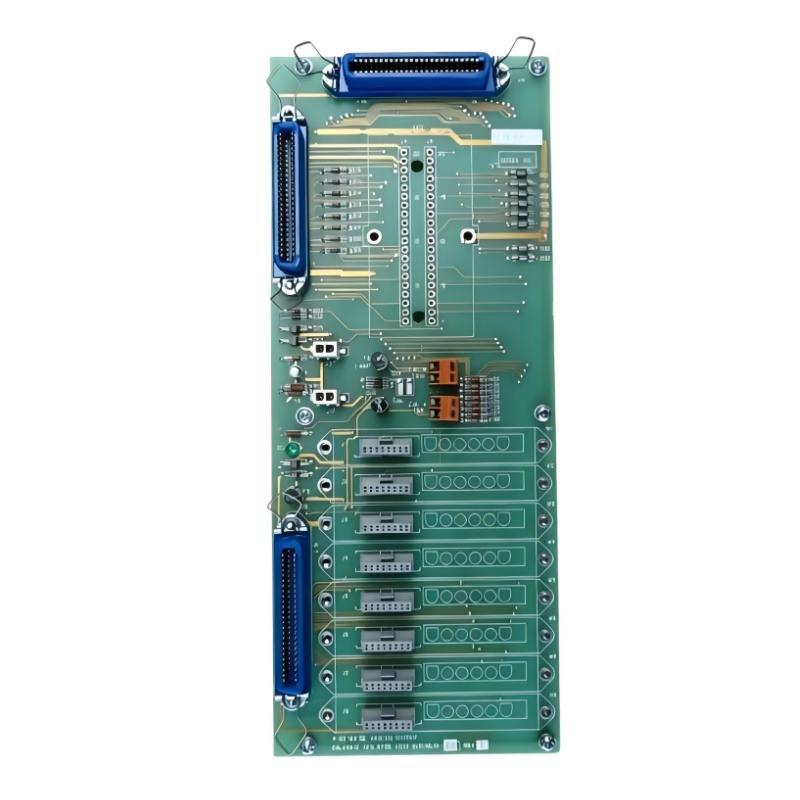

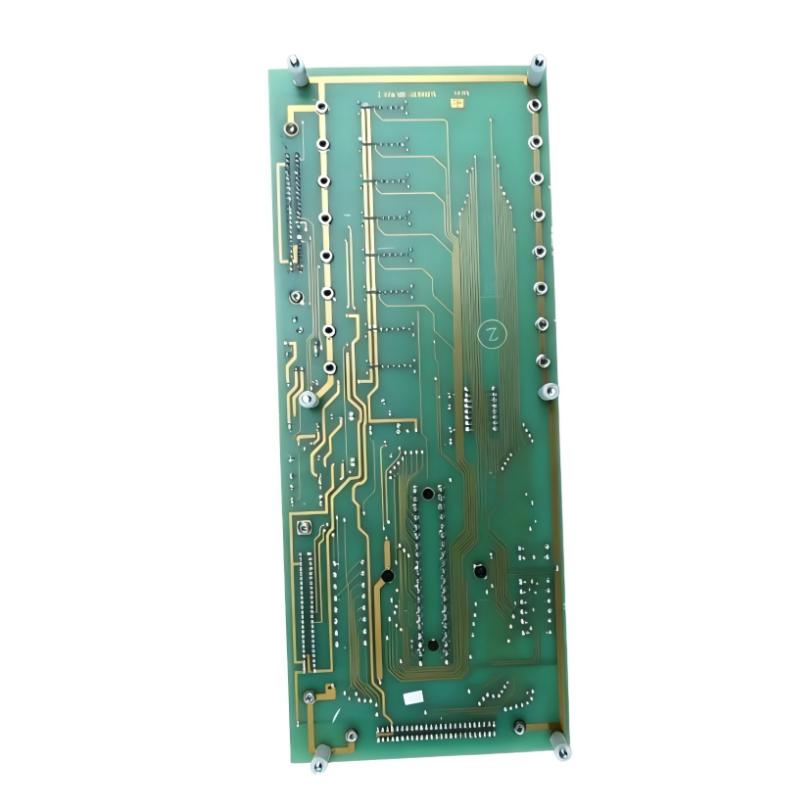

Q1: What is the main function of the Honeywell 51304638-600 Analog Output Electrical Isolator?

The Honeywell 51304638-600 is designed to provide electrical isolation in analog output signal circuits. It helps separate the control system output circuit from the connected field device circuit, reducing the risk of unwanted electrical interaction between them. In industrial automation applications, this type of isolation is useful for protecting signal integrity and improving the reliability of analog control loops.

Q2: Why is an electrical isolator required in an analog output circuit?

Electrical isolators help prevent differences in ground potential and unwanted electrical interference from affecting analog signals. In industrial plants, control cabinets and field devices may be connected to different power sources or grounding points. These conditions can create ground loops and electrical noise. An isolator provides separation between circuits, helping reduce interference and supporting more stable control signal transmission.

Q3: What types of field devices can be used with the 51304638-600?

Analog output isolation is commonly used in control loops connected to devices such as control valves, valve positioners, actuators, and other equipment that receives analog control signals. However, actual compatibility depends on the isolator’s supported signal range, electrical characteristics, terminal configuration, and the requirements of the connected field device. These details should be checked against the applicable Honeywell documentation before installation.

Q4: Can the 51304638-600 help solve ground-loop problems?

Electrical isolation can help reduce ground-loop problems caused by potential differences between the control system and field equipment. Ground loops may introduce unwanted voltage into analog circuits, resulting in unstable readings or inconsistent control signals. By separating the relevant electrical circuits, an isolator can reduce this interference. However, it does not replace correct grounding, shielding, or wiring practices.

Q5: What should be checked before installing the Honeywell 51304638-600?

Before installation, verify the order number and confirm that the isolator matches the intended Honeywell system configuration. Check the analog signal type, input and output electrical characteristics, terminal assignments, and field device requirements. Inspect the terminals and connectors for damage or contamination. Installation should follow the approved wiring diagram and electrical safety procedures. Incorrect wiring or incompatible signal levels may cause signal errors or prevent the field device from responding correctly.

Q6: What are the common causes of abnormal analog output signals?

Abnormal output signals may result from loose terminal connections, incorrect wiring, ground-potential differences, electromagnetic interference, damaged cables, or incorrect system configuration. A faulty field device or control system output channel may also cause signal problems. Troubleshooting should begin with checking the system diagnostics and verifying the control output value. The signal should then be checked at appropriate test points to determine whether the fault is associated with the controller, isolator, wiring, or field equipment.

Q7: Can the 51304638-600 be used as a direct replacement for another Honeywell isolator?

Not necessarily. Honeywell isolation modules may differ in signal range, channel configuration, isolation characteristics, terminal arrangement, and system compatibility. A similar product description does not guarantee electrical or mechanical interchangeability. Before replacement, compare the complete order number, system documentation, wiring diagram, and electrical specifications of the original component. Using an incompatible isolator may lead to incorrect signal transmission or control-loop malfunction.

Q8: How can the 51304638-600 be maintained to ensure reliable operation?

Regular maintenance should include inspecting terminal connections, checking cable insulation, reviewing system diagnostic messages, and looking for signs of overheating or corrosion. Engineers should also verify that the analog output signal received by the field device corresponds to the control system command. If signal instability occurs, inspect the grounding and shielding arrangement and check the isolator’s associated wiring. Any testing or replacement should be performed by qualified personnel following the plant’s isolation and safety procedures.
