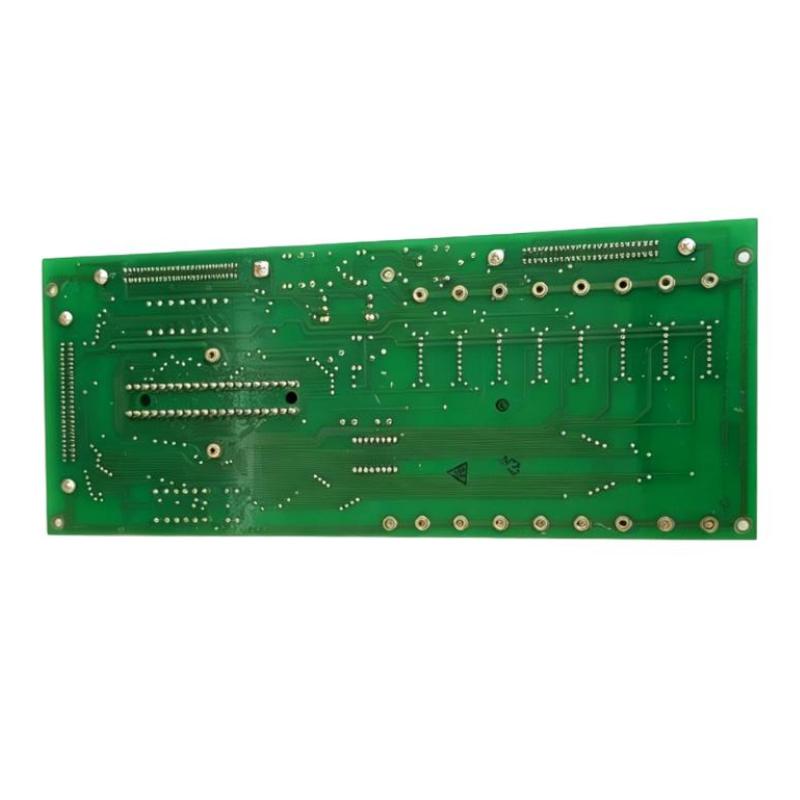

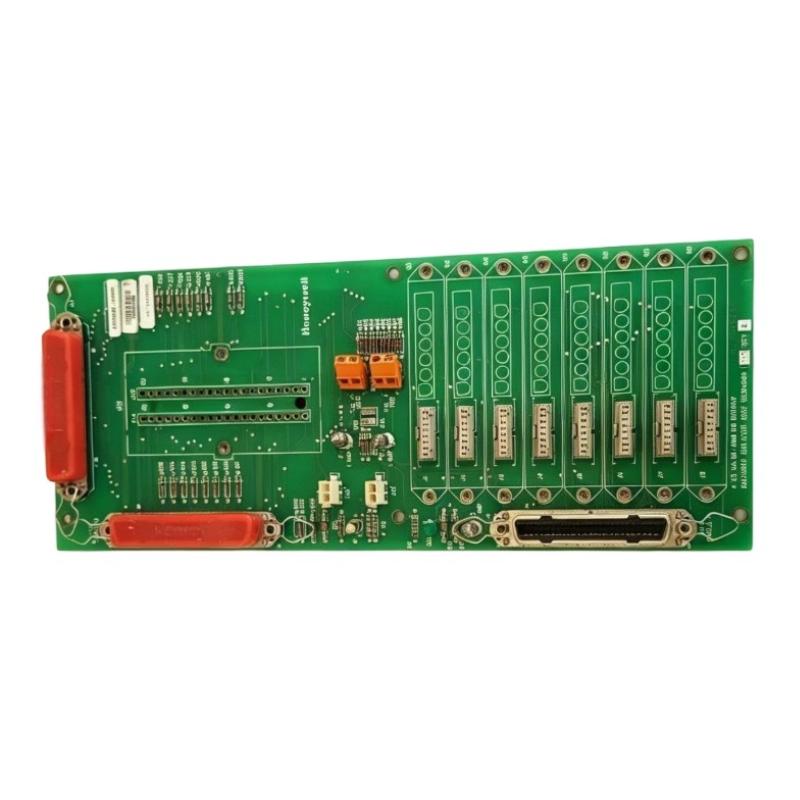

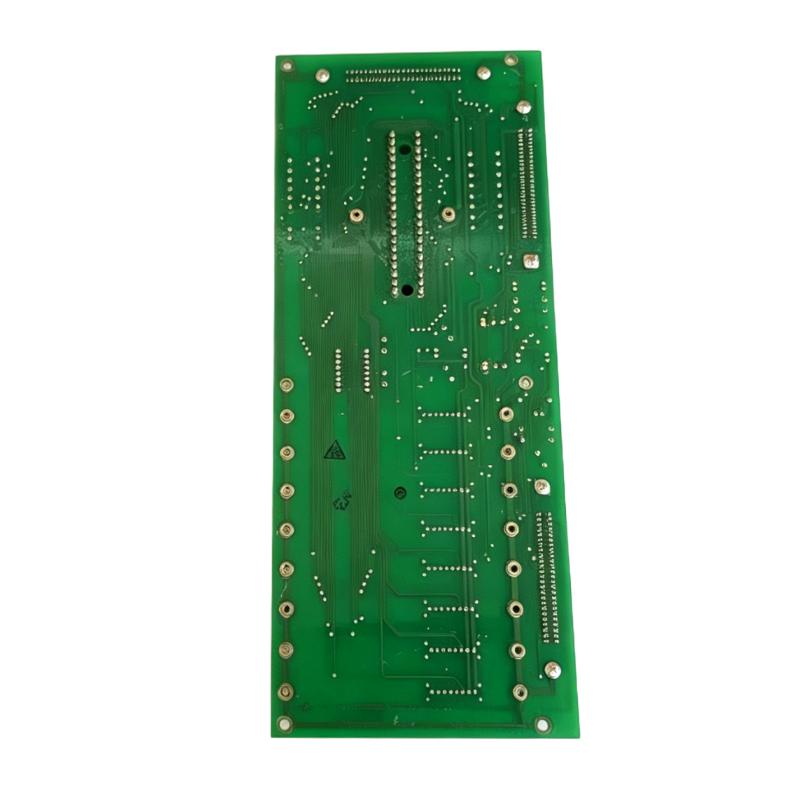

Q1: What is the main function of the Honeywell MU-GAOX12 Analog Output Module?

The Honeywell MU-GAOX12 is designed for analog output signal distribution in industrial process control systems. It provides galvanically isolated 4–20 mA output circuits for controlling compatible field devices. The assembly acts as an interface between the analog output control system and field equipment, allowing controller-generated commands to be transmitted to devices such as I/P converters and valve positioners. Its isolation design helps protect the control system from electrical interference and differences in ground potential.

Q2: How many analog output channels does this Honeywell module support?

The MU-GAOX12 FTA configuration supports up to 8 isolated analog output channels. Each channel is designed to provide a 4–20 mA current signal for an individual field control circuit. This arrangement allows multiple actuators or process control devices to be connected through one field termination assembly. The actual number of active channels depends on the connected I/O hardware, wiring configuration, and system engineering settings.

Q3: What is the output signal range of the MU-GAOX12?

The supported analog output signal is 4–20 mA DC. This is a widely used industrial standard for transmitting continuous control commands. For example, a control system can adjust the output current to regulate a valve position or control another field device. The connected equipment must support the same current-loop signal range, and the loop wiring must comply with the electrical requirements of the installed Honeywell system.

Q4: What is the purpose of galvanic isolation in the analog output circuits?

Galvanic isolation separates the electrical circuits without requiring a direct conductive connection between them. This helps reduce ground-loop problems, unwanted voltage differences, and electrical interference between the control system and field devices. In industrial environments containing motors, variable-frequency drives, and high-power equipment, electrical noise can affect signal stability. Galvanic isolation helps protect the analog output circuits and supports more reliable control signal transmission.

Q5: Which field devices can be connected to the Honeywell 51304638-325?

The analog output FTA is intended for compatible current-driven field devices, including current-to-pressure (I/P) transducers, valve positioners, and control actuators. It can support devices with a load resistance of up to 750 Ω under the specified operating conditions. Before connecting a field device, verify its input signal requirements, loop resistance, wiring polarity, and compatibility with the associated Honeywell I/O hardware.

Q6: What should be checked when an analog output channel does not work properly?

Start by checking the system diagnostic messages and the status of the associated analog output I/O hardware. Inspect the terminal connections for looseness, corrosion, or incorrect wiring. Measure the 4–20 mA loop current using an appropriate instrument and compare the measured value with the controller output command. Also check the field device, cable condition, loop power requirements, and total load resistance. If the measured current is incorrect, isolate the fault by checking the controller, termination assembly, wiring, and field equipment separately.

Q7: Are MU-GAOX12 and order number 51304638-325 a confirmed matching model and part number?

These two identifiers should be checked before ordering. Honeywell hardware documentation and product catalogs associate MU-GAOX12 with the 51304638-525 order number, while 51304638-325 is associated with MU-GAOX72. Both belong to the galvanically isolated analog output FTA family, but their configurations differ. Verify the original equipment label and system documentation before selecting a replacement to avoid receiving an incompatible component.

Q8: What maintenance practices help ensure reliable operation of the analog output FTA?

Regular maintenance should include inspecting terminal connections, checking cable insulation, verifying grounding arrangements, and reviewing system diagnostic information. Engineers should periodically compare the controller’s commanded output with the actual current received by the field device. Loose terminals, damaged cables, excessive loop resistance, and electrical interference should be investigated promptly. Before removing or replacing the assembly, follow the plant’s shutdown and electrical isolation procedures to prevent damage to the control system or connected field equipment.
