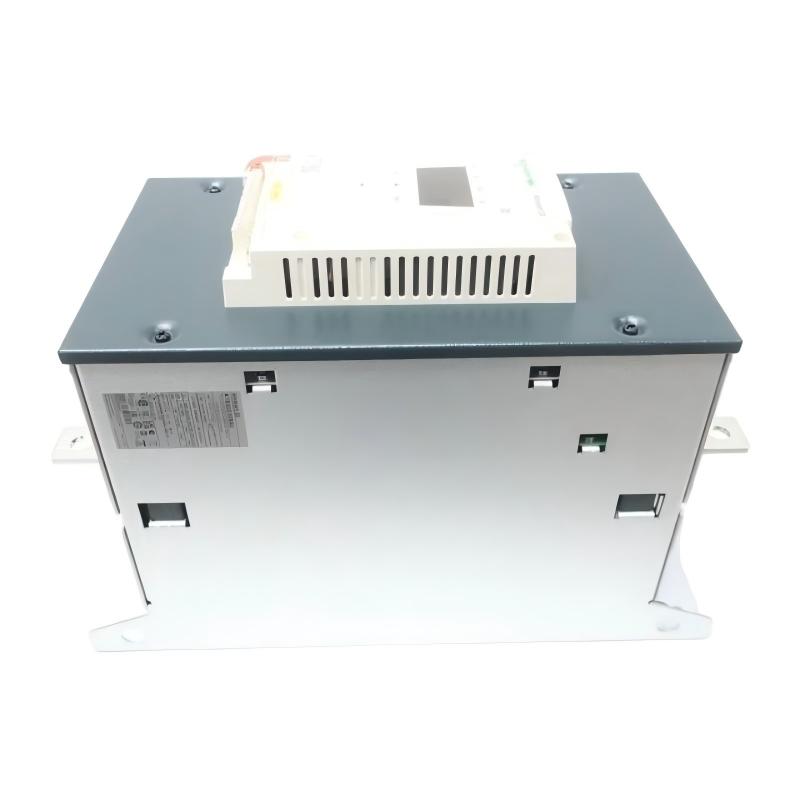

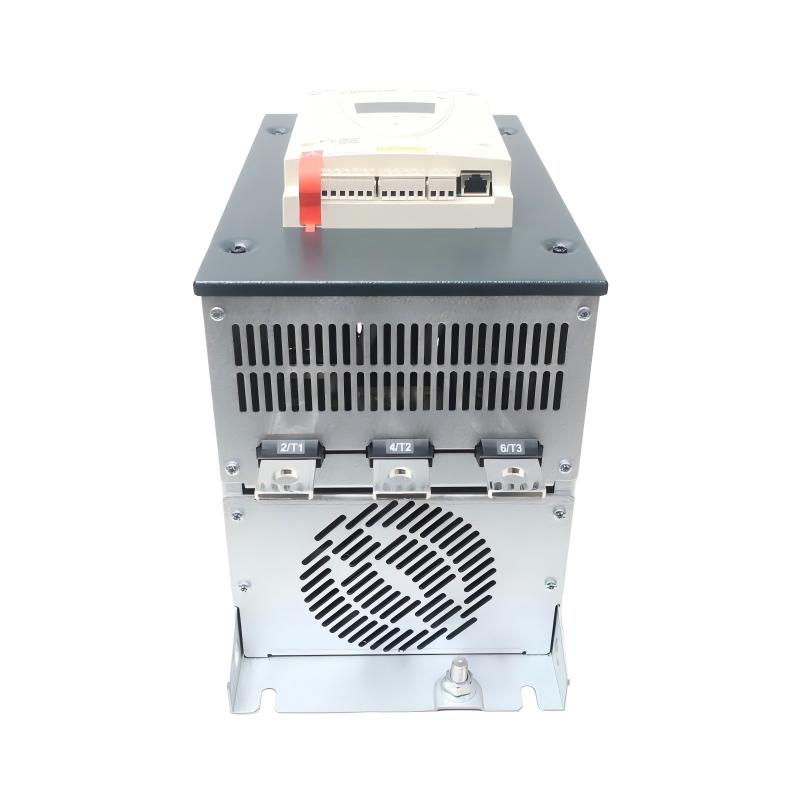

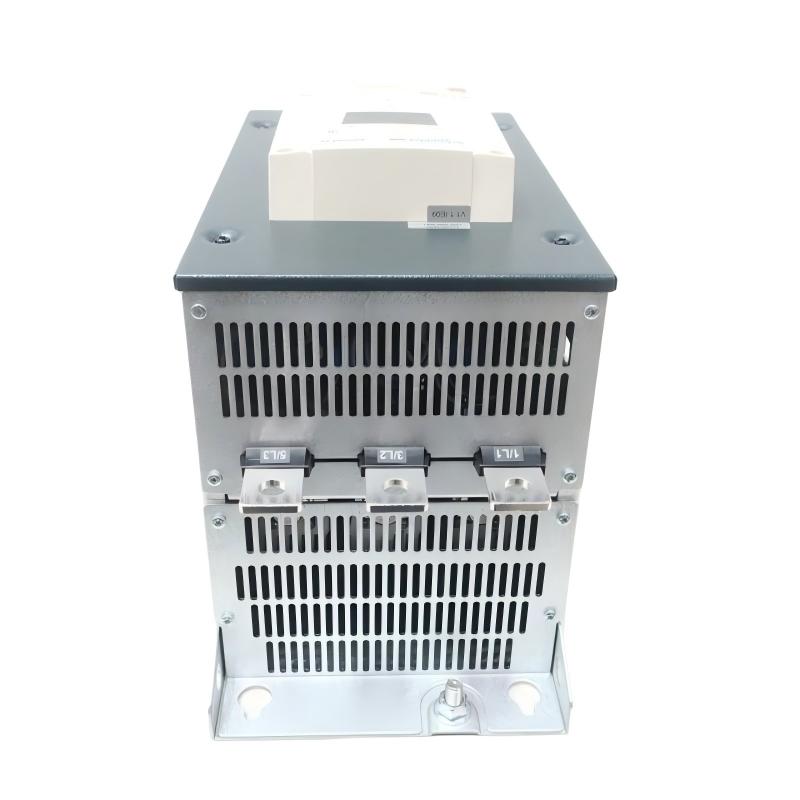

1. What is the main function of Schneider ATS22C32S6 Soft Starter?

Schneider ATS22C32S6 Soft Starter is a motor control device designed to provide smooth starting and stopping functions for three-phase asynchronous motors. Its primary purpose is to reduce the high inrush current that occurs during direct motor starting and minimize mechanical stress on connected equipment.

During a traditional direct-on-line motor start, the motor can draw several times its rated current, which may cause voltage fluctuations, electrical stress, and mechanical impact on gears, belts, pumps, and other driven equipment.

The ATS22C32S6 controls the voltage supplied to the motor during startup, gradually increasing power until the motor reaches normal operating speed. This process allows the motor to accelerate smoothly and reduces sudden torque changes.

The soft starter is commonly used in industrial applications such as pumps, fans, compressors, conveyors, and production machinery where controlled motor acceleration and improved equipment reliability are required.

By optimizing motor starting performance, the ATS22C32S6 helps reduce energy system impact, improve operational stability, and extend the service life of mechanical components.

2. What types of motors can be controlled by Schneider ATS22C32S6?

Schneider ATS22C32S6 is designed for controlling three-phase asynchronous induction motors commonly used in industrial automation systems.

Typical applications include:

• Centrifugal pumps;
• Cooling fans;
• Ventilation systems;
• Conveyors;
• Compressors;
• Mixers;
• Industrial processing equipment.

The soft starter is especially suitable for applications where motors experience high starting loads or where mechanical impact during startup needs to be reduced.

For example, in pump applications, sudden motor acceleration can create water hammer effects and mechanical vibration. The ATS22C32S6 provides controlled acceleration, helping reduce stress on pipes, valves, and pump components.

For conveyor systems, smooth starting prevents sudden belt movement and reduces wear on mechanical transmission parts.

By providing controlled motor operation, the ATS22C32S6 improves system reliability and reduces maintenance requirements.

3. How does Schneider ATS22C32S6 reduce motor starting current?

The Schneider ATS22C32S6 reduces motor starting current by controlling the voltage applied to the motor during acceleration.

When a motor starts directly across the power supply, it immediately receives full voltage, causing a high starting current peak. This sudden current increase can affect electrical networks and create stress on motor windings.

The ATS22C32S6 gradually increases the output voltage using electronic power control technology. As the voltage rises, the motor accelerates smoothly and the current demand is controlled.

The soft starter can adjust starting parameters according to different load conditions, allowing engineers to optimize motor performance.

Benefits include:

• Reduced electrical system impact;
• Lower mechanical shock;
• Improved motor protection;
• Smoother equipment operation.

This makes the ATS22C32S6 particularly valuable in industrial facilities where stable motor operation is important.

4. How can Schneider ATS22C32S6 faults be diagnosed?

When Schneider ATS22C32S6 experiences operating problems, troubleshooting should begin with checking the displayed fault information and system operating conditions.

Common diagnostic steps include:

• Checking fault codes on the controller display;
• Verifying incoming power supply conditions;
• Checking motor wiring connections;
• Confirming control signal inputs;
• Inspecting motor insulation condition.

Typical faults may include:

• Motor overload;
• Phase loss;
• Excessive starting time;
• Overheating;
• Incorrect configuration parameters.

Engineers should also check whether the selected motor settings match the actual motor characteristics.

If the motor cannot start correctly, the cause may be related to incorrect current settings, mechanical overload, or external wiring problems.

A complete diagnosis should include electrical inspection, parameter verification, and mechanical load evaluation to identify the actual cause.

5. What are the common causes of Schneider ATS22C32S6 startup failures?

Startup failures of Schneider ATS22C32S6 can be caused by several factors related to power supply, motor conditions, configuration, or external control signals.

Common causes include:

• Incorrect motor parameters;
• Insufficient power supply;
• Missing phase connection;
• Excessive mechanical load;
• Incorrect control wiring;
• Motor winding problems;
• Improper starting settings.

For example, if the motor stops during acceleration, the reason may be that the current limit setting is too low for the actual load condition.

In pump applications, blocked pipes or mechanical resistance may also prevent normal acceleration.

Before replacing the soft starter, technicians should check the complete system, including the motor, power supply, control circuit, and mechanical equipment.

Proper commissioning and parameter adjustment can significantly improve startup reliability.

6. How should Schneider ATS22C32S6 be installed and configured?

Schneider ATS22C32S6 should be installed inside an appropriate electrical control cabinet with proper ventilation and wiring protection.

The installation process generally includes:

1. Confirming motor specifications and application requirements;
2. Installing the soft starter in the control panel;
3. Connecting power supply and motor cables;
4. Connecting control signals;
5. Configuring motor parameters.

Important configuration settings include:

• Motor rated current;
• Starting time;
• Current limitation level;
• Stop control mode;
• Protection parameters.

After installation, commissioning should be performed by testing motor acceleration, stopping behavior, and protection functions.

Correct configuration ensures that the soft starter matches the motor and mechanical load characteristics.

Proper installation and commissioning help improve system efficiency and prevent unnecessary faults during operation.

7. What advantages does Schneider ATS22C32S6 provide in industrial applications?

Schneider ATS22C32S6 provides several advantages for industrial motor control applications.

Main benefits include:

• Reduced motor starting current;
• Smooth acceleration and deceleration;
• Lower mechanical stress;
• Improved equipment reliability;
• Integrated motor protection functions.

Compared with direct motor starting methods, soft starting technology reduces sudden torque impact and improves the operating condition of connected equipment.

For industrial pumps, fans, and conveyors, smoother starting helps reduce vibration and mechanical wear.

The ATS22C32S6 also simplifies motor management by combining starting control and protection functions in one device.

This makes it suitable for industries requiring reliable motor operation, including manufacturing, water treatment, HVAC systems, and process automation applications.

8. What should be checked before replacing Schneider ATS22C32S6 Soft Starter?

Before replacing Schneider ATS22C32S6, maintenance personnel should confirm that the soft starter is the actual cause of the system problem.

The following checks should be performed:

• Review fault history and diagnostic information;
• Verify power supply conditions;
• Check motor wiring;
• Confirm control circuit operation;
• Inspect motor condition;
• Check parameter settings.

Before removing the existing unit, engineers should record important configuration information, including motor settings and application parameters.

After installing the replacement soft starter, the system should be configured according to the motor specifications.

Commissioning should include testing:

• Motor startup performance;
• Acceleration process;
• Stop operation;
• Protection functions.

A complete replacement and commissioning process helps restore reliable motor control and ensures stable operation of industrial equipment.
