1. What is the main function of Schneider ATS22C32S6U Soft Starter?

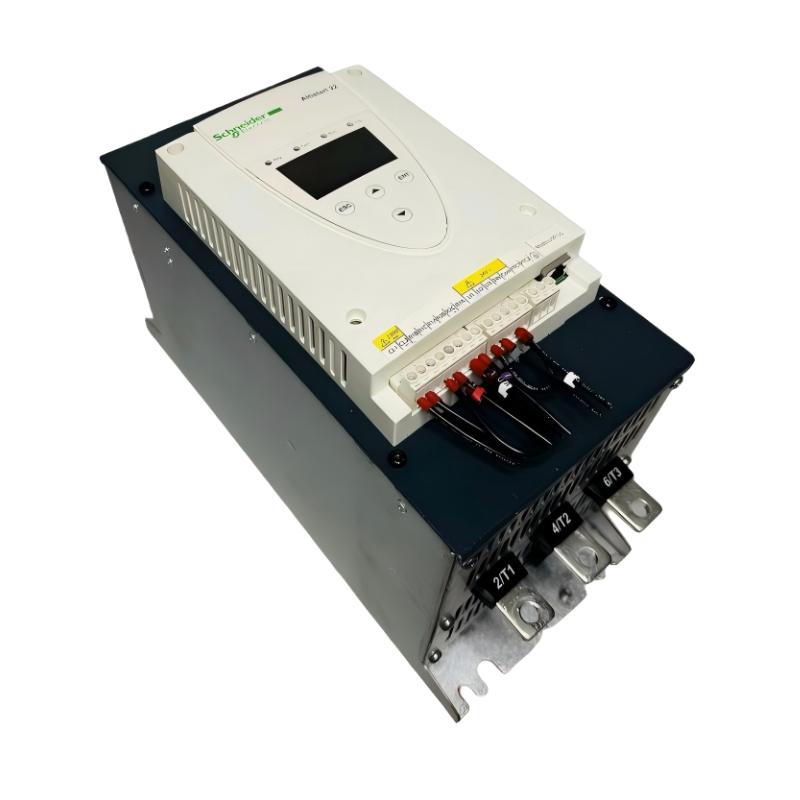

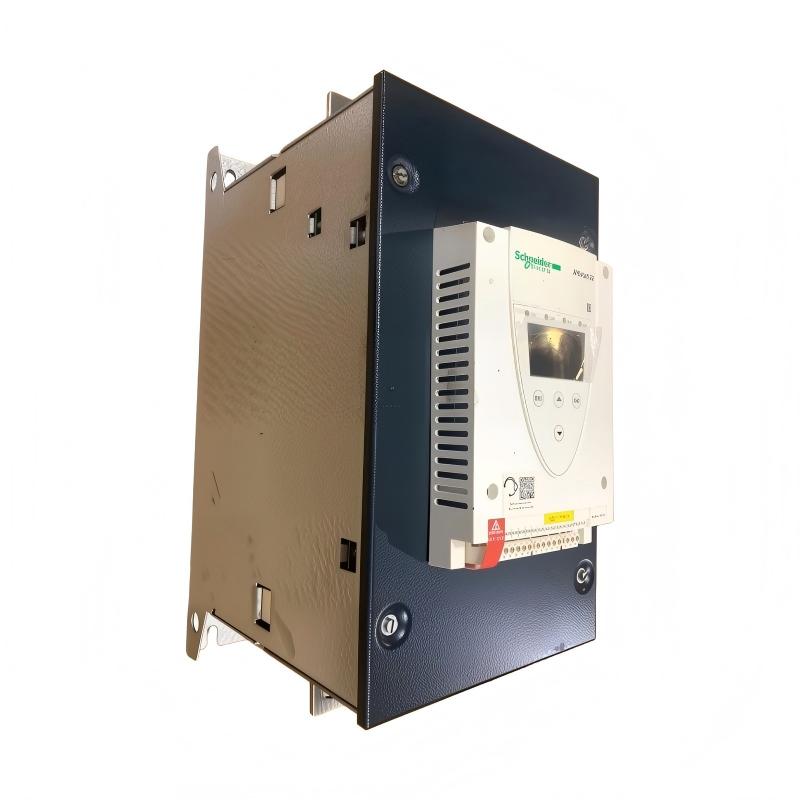

Schneider ATS22C32S6U Soft Starter is an industrial motor control device designed for three-phase asynchronous motors. Its main function is to provide controlled motor starting and stopping by gradually adjusting the voltage supplied to the motor.

During direct motor starting, the motor normally draws a high inrush current, which can cause voltage fluctuations in the electrical network and create strong mechanical stress on motors, couplings, gear systems, and driven equipment.

The ATS22C32S6U reduces these problems by increasing the motor voltage gradually during startup. This allows the motor to accelerate smoothly instead of receiving full power immediately.

The soft starter helps achieve:

• Reduced starting current;
• Lower mechanical shock;
• Improved motor protection;
• Longer equipment service life;
• More stable operation.

It is widely used in industrial applications such as pumps, fans, compressors, conveyors, and production machinery where smooth motor operation is required.

By improving the starting process, the ATS22C32S6U helps reduce maintenance requirements and improves the reliability of industrial equipment.

2. What types of equipment can Schneider ATS22C32S6U control?

Schneider ATS22C32S6U is designed for controlling three-phase AC induction motors used in various industrial applications.

Typical applications include:

• Centrifugal pumps;
• Cooling fans;
• Ventilation systems;
• Air compressors;
• Conveyor systems;
• Mixing machines;
• Industrial production equipment.

For pump applications, the soft starter helps reduce sudden pressure changes caused by rapid motor acceleration. This can minimize water hammer effects and reduce stress on pipelines and mechanical components.

For conveyor systems, controlled acceleration prevents sudden belt tension changes and reduces mechanical wear.

For compressors and fans, smooth starting reduces current impact and improves system stability.

The ATS22C32S6U is especially suitable for industrial equipment that requires frequent motor starts or where mechanical impact during startup needs to be minimized.

3. How does Schneider ATS22C32S6U reduce motor starting current?

The Schneider ATS22C32S6U reduces motor starting current by controlling the voltage applied to the motor during acceleration.

With direct-on-line starting, a motor immediately receives full supply voltage, resulting in a large current surge. This high current can affect power distribution systems and increase electrical stress on motor components.

The ATS22C32S6U uses electronic power control technology to gradually increase output voltage according to configured starting parameters.

This controlled voltage increase provides:

• Lower current peaks;
• Reduced electrical stress;
• Smoother torque generation;
• Better mechanical protection.

The user can adjust starting parameters according to different load characteristics, allowing the motor to achieve optimal acceleration performance.

This makes the soft starter suitable for applications where stable starting performance and reliable motor operation are important.

4. How can Schneider ATS22C32S6U faults be diagnosed?

When Schneider ATS22C32S6U experiences abnormal operation, troubleshooting should begin with checking fault information and system conditions.

Recommended diagnostic steps include:

• Checking displayed fault codes;
• Verifying input power supply;
• Inspecting motor wiring;
• Checking control signals;
• Confirming motor load conditions.

Common faults may include:

• Motor overload;
• Phase loss;
• Excessive starting time;
• Overtemperature;
• Incorrect parameter settings.

If the motor cannot start properly, technicians should verify whether the configured current limit and acceleration time match the actual application.

Mechanical problems, such as blocked pumps or excessive loads, may also prevent normal startup.

A complete troubleshooting process should include electrical inspection, parameter verification, and mechanical evaluation to identify the actual cause.

5. What are the common causes of Schneider ATS22C32S6U startup failures?

Startup failures of Schneider ATS22C32S6U are usually related to power supply conditions, motor parameters, control signals, or mechanical load problems.

Common causes include:

• Incorrect motor settings;
• Unstable input voltage;
• Missing phase connection;
• Excessive mechanical load;
• Incorrect control wiring;
• Improper starting parameters;
• Motor faults.

For example, if a motor stops during acceleration, the current limitation value may be set too low, preventing sufficient starting torque.

In pump applications, mechanical blockage or abnormal resistance can also prevent the motor from reaching normal speed.

Before replacing the soft starter, engineers should inspect the complete motor system, including electrical connections, motor condition, and mechanical load.

Proper commissioning and parameter adjustment can significantly improve startup reliability.

6. How should Schneider ATS22C32S6U be installed and configured?

Schneider ATS22C32S6U should be installed inside a suitable industrial control cabinet and configured according to the motor specifications and application requirements.

The installation process generally includes:

1. Confirming motor electrical parameters;
2. Mounting the soft starter in the control cabinet;
3. Connecting incoming power cables;
4. Connecting motor output cables;
5. Connecting control terminals;
6. Configuring operating parameters.

Important configuration settings include:

• Motor rated current;
• Starting time;
• Current limitation level;
• Stop mode;
• Protection parameters.

After configuration, commissioning should be performed to verify:

• Smooth motor acceleration;
• Correct operating behavior;
• Proper stopping function;
• Effective protection operation.

Correct installation and setup ensure that the ATS22C32S6U provides reliable motor control and long-term operational stability.

7. What advantages does Schneider ATS22C32S6U provide in industrial applications?

Schneider ATS22C32S6U provides reliable motor control performance for industrial automation systems.

Its main advantages include:

• Reduced motor starting current;
• Smooth acceleration and deceleration;
• Lower mechanical stress;
• Integrated motor protection;
• Improved equipment reliability.

Compared with traditional direct starting methods, the soft starter reduces sudden torque changes and minimizes stress on mechanical components.

In industrial pumps, fans, and conveyor systems, smoother motor operation helps reduce vibration and mechanical wear.

The ATS22C32S6U combines motor starting control and protection functions in one device, simplifying system design and improving operational efficiency.

It is widely used in manufacturing plants, water treatment systems, HVAC applications, power facilities, and process industries.

8. What should be checked before replacing Schneider ATS22C32S6U Soft Starter?

Before replacing Schneider ATS22C32S6U, maintenance personnel should confirm that the soft starter is the actual source of the problem.

The following inspections should be completed:

• Review fault history;
• Check incoming power conditions;
• Verify motor connections;
• Inspect control signals;
• Confirm parameter settings;
• Evaluate mechanical load conditions.

Before removing the existing unit, important configuration information should be recorded, including:

• Motor current settings;
• Starting parameters;
• Stop control settings;
• Protection configurations.

After installing the replacement unit, the parameters should be configured according to the original application requirements.

Commissioning should include testing:

• Motor startup performance;
• Acceleration process;
• Stopping operation;
• Protection functions.

A complete replacement and commissioning procedure helps minimize downtime and ensures stable operation of the industrial motor system.
