1. What is the Schneider TSXETY410 mainly used for?

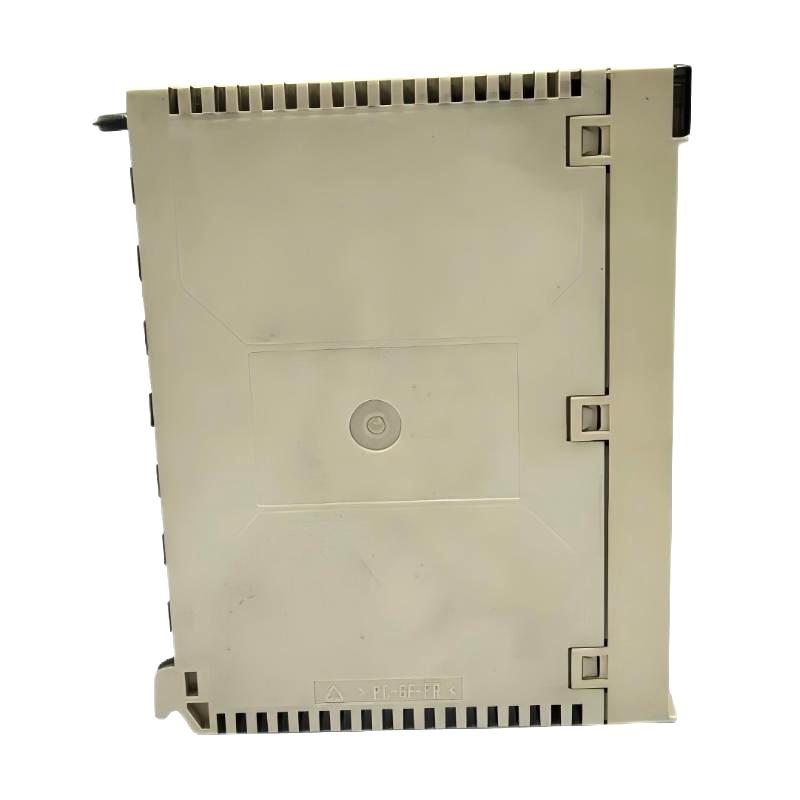

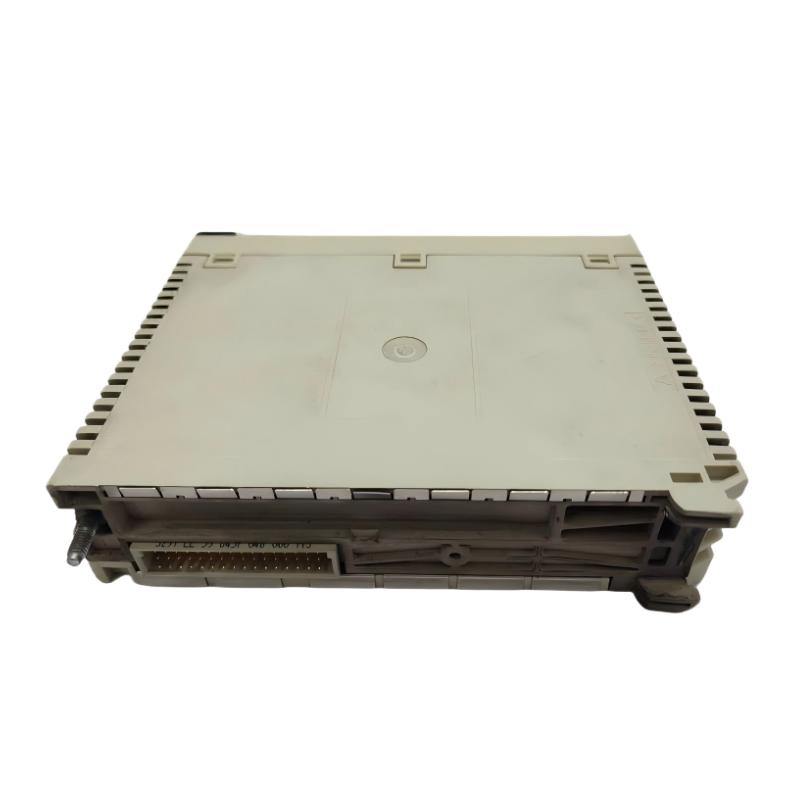

The Schneider TSXETY410 is an analog output module designed for Schneider Electric automation systems. Its primary purpose is to convert control data generated by the PLC program into analog output signals and deliver them to field control devices. It is suitable for applications that require continuous adjustment rather than simple ON/OFF control, including control valves, variable frequency drives, analog actuators, and other compatible equipment. In a typical control loop, the PLC calculates the required output according to process values, setpoints, and control logic, while the TSXETY410 generates the corresponding analog signal. This allows field equipment to be adjusted continuously and supports stable process regulation.

2. What role does the TSXETY410 play in a PLC system?

The TSXETY410 provides the analog output interface between the PLC controller and field devices that require continuous control signals. The PLC program calculates an output value based on input signals, setpoints, control algorithms, and equipment status. The resulting control data is sent to the analog output module, which converts the data into a corresponding field signal. Unlike a digital output that normally provides only an ON or OFF state, an analog output can provide continuously variable control. This makes the TSXETY410 suitable for applications such as gradually adjusting valve position, regulating drive speed, or controlling other continuously variable process parameters.

3. What types of industrial equipment can be controlled with the TSXETY410?

The TSXETY410 can be used with industrial equipment that accepts compatible analog control signals, including control valves, variable frequency drives, analog actuators, and other continuous-control devices. In a process control application, the PLC can calculate an output based on pressure, flow, temperature, level, or another process variable and then transmit the calculated value through the TSXETY410. For example, in a flow-control loop, the PLC can compare the actual flow with the desired setpoint and adjust the output signal accordingly. The connected control valve can then change its position progressively, allowing the process flow to be maintained near the target value. This type of analog control is particularly useful where smooth and precise regulation is required.

4. How can an abnormal TSXETY410 analog output be diagnosed?

Troubleshooting an abnormal analog output should normally proceed through the PLC program, module status, wiring, and field device. First, verify that the PLC program is executing correctly and that the relevant output channel is being commanded as expected. Then check the module status and system diagnostics for hardware or configuration faults. The field terminals, cables, connections, and signal polarity should also be inspected. A suitable test instrument can be used to determine whether the actual output signal corresponds to the value commanded by the PLC. If the module output is correct but the field device does not respond correctly, continue by checking the field wiring and the input configuration of the connected equipment. Incorrect scaling or engineering-range settings should also be considered because software configuration errors can produce an apparently incorrect physical output.

5. What should be considered when configuring the TSXETY410?

When configuring the TSXETY410, first confirm that the module is compatible with the Schneider Electric PLC system being used. The purpose of each output channel should then be defined according to the project design, with each channel mapped clearly to its corresponding field device. Engineers should verify the required output signal type, engineering range, scaling, and control logic. When the module is connected to equipment such as control valves or variable frequency drives, the field device’s input requirements must match the module configuration. After software configuration is completed, each output channel should be tested individually. The commanded PLC value should be compared with the measured physical output. If a discrepancy occurs, check scaling, engineering range, wiring, and the input configuration of the field device before placing the system into normal operation.

6. Why might the analog output from a TSXETY410 fluctuate?

Analog output fluctuations can have several possible causes. First, check whether the PLC control program itself is continuously changing the commanded output. If the programmed value remains stable while the physical signal fluctuates, inspect the output circuit, field wiring, power supply, and connected equipment. In closed-loop control systems, the feedback signal should also be examined because unstable feedback can cause the controller to repeatedly adjust its output. Incorrect engineering ranges, scaling parameters, control settings, or field-device response characteristics can also contribute to abnormal output changes. A useful troubleshooting method is to compare the PLC program variable, the module’s commanded output, and the actual field signal. Comparing these values helps identify whether the fluctuation originates in the control logic, module configuration, output circuit, or field equipment.

7. What should be considered when replacing a TSXETY410?

Before replacing a TSXETY410, verify the exact replacement model and system compatibility, and place the affected control loop into an appropriate maintenance or safe state according to site procedures. Before removal, it is recommended to document the channel assignments, field wiring, and software configuration to prevent channel-mapping errors after installation. Once the replacement module is installed, check the connection between the module and the control system and confirm that the PLC recognizes the hardware correctly. Then verify the configuration and field wiring of each analog output channel and test them individually using appropriate test signals. For critical equipment such as control valves and variable frequency drives, verify output direction, signal range, and equipment response before returning the loop to automatic operation. This helps prevent unintended equipment movement caused by an incorrect output configuration.

8. What tests should be performed when commissioning the TSXETY410?

Commissioning should cover hardware installation, software configuration, individual channel testing, and functional testing of the connected field equipment. First, confirm that the module is correctly installed and recognized by the control system. Then verify the module configuration and ensure that each output channel corresponds to the correct field device. During channel testing, apply several controlled output values through the PLC program and use an appropriate measuring instrument to verify that the physical output corresponds to the commanded value. The response of the field device should then be checked—for example, confirming that a control valve changes position correctly or that a variable frequency drive responds appropriately to the control signal. For closed-loop applications, feedback signals, alarms, interlocks, and control logic should also be tested. A complete end-to-end test from the PLC program through the TSXETY410 output and into the field device provides a stronger confirmation that the analog output loop is ready for normal operation.
