1. What is the Schneider TSXFPP10 PCMCIA Card mainly used for?

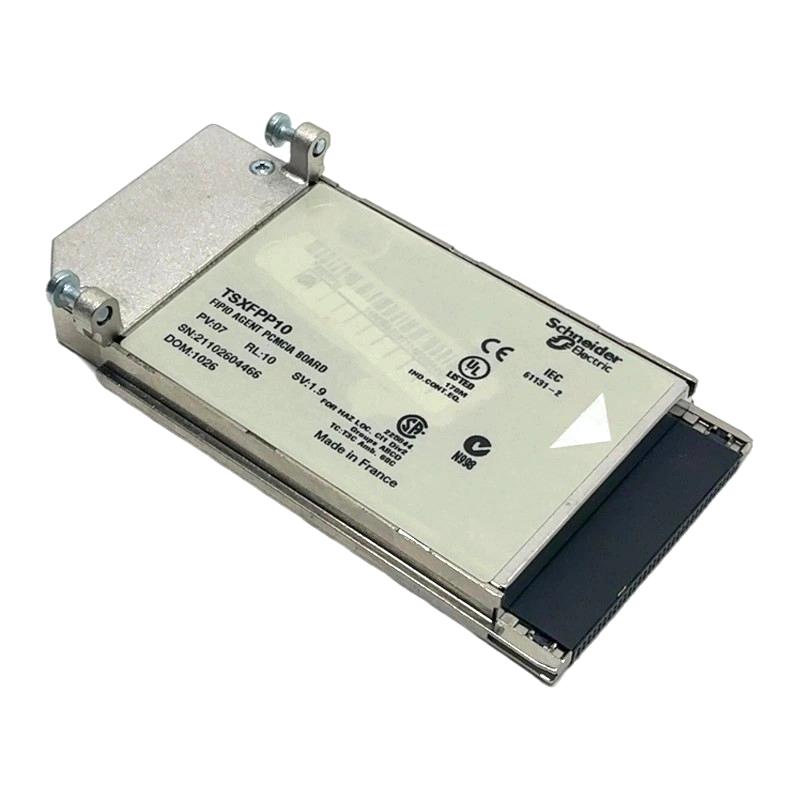

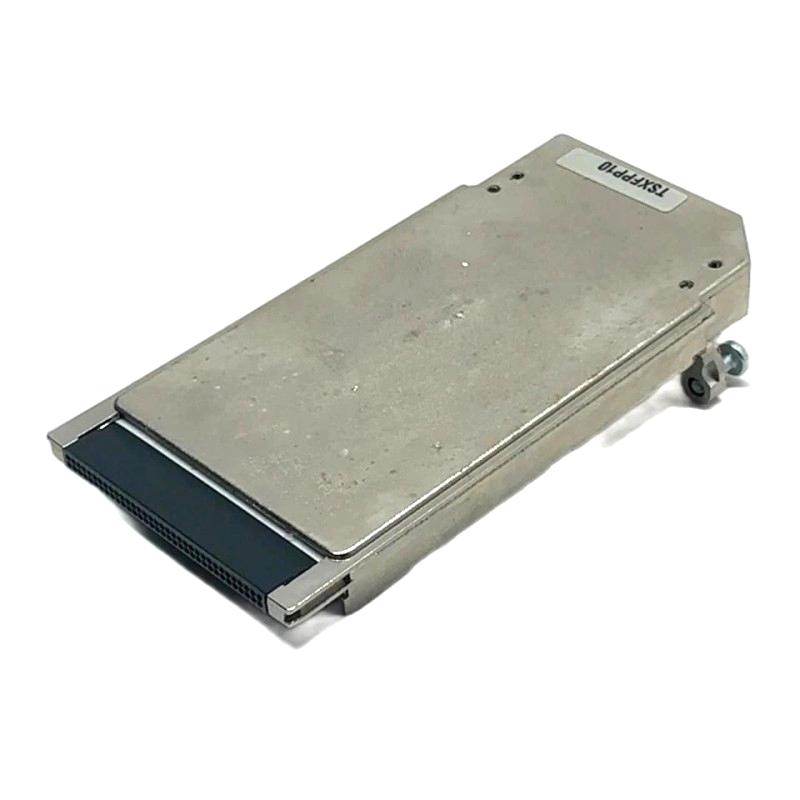

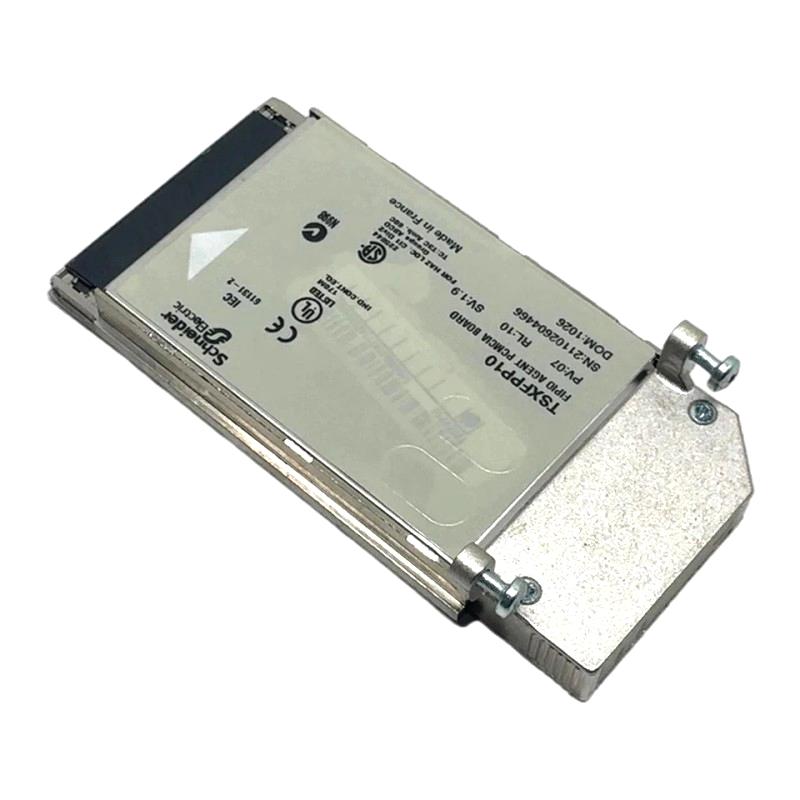

The Schneider TSXFPP10 is a PCMCIA card designed for communication or functional expansion in compatible industrial automation systems. It is installed in an appropriate PCMCIA slot to provide additional communication or system expansion capabilities according to the requirements of the automation application. In PLC-based systems, an expansion card of this type can be used to support communication with external equipment, data exchange, or specific system interface requirements. Before installation, the target controller or automation device should be checked for compatibility with the TSXFPP10, and the required hardware and software configuration should be confirmed according to the application.

2. What type of interface does the TSXFPP10 use?

The TSXFPP10 uses a PCMCIA interface and is intended for automation equipment equipped with a compatible PCMCIA slot. The card is inserted into the corresponding expansion slot to provide additional communication or functional capabilities for the control system. During installation, the card should be correctly aligned with the slot and inserted carefully to prevent damage to the card or connector. For industrial control systems already in operation, installation or replacement should be performed according to the site’s maintenance procedures, and the system should be checked afterward to confirm that the expansion card is correctly recognized.

3. What automation systems can use the TSXFPP10?

The TSXFPP10 is intended for industrial automation systems using compatible Schneider Electric hardware architectures. Its specific application depends on the host controller, PCMCIA interface, supported functions, and software configuration. It may be used for PLC system communication, equipment interconnection, or functional expansion. In an industrial environment, the card can serve as an expansion interface between automation equipment and external communication systems. Before use, engineers should verify compatibility with the existing PLC model, system architecture, software environment, and communication requirements. The presence of a PCMCIA slot alone does not necessarily guarantee compatibility.

4. How should the Schneider TSXFPP10 be installed?

Before installing the TSXFPP10, verify that the target device provides a compatible PCMCIA expansion interface and that the card model meets the system requirements. During installation, make sure the card is correctly oriented and aligned with the slot. Never force the card into the connector, as improper insertion can damage the interface or card. After installation, restore the system according to the applicable maintenance procedure and check through the PLC or configuration software whether the expansion card is correctly recognized. If additional software configuration is required, configure the relevant parameters according to the automation network architecture. A communication or functional test should then be performed to confirm proper operation.

5. How can TSXFPP10 communication or recognition problems be diagnosed?

If the TSXFPP10 is not recognized after installation, first check whether the PCMCIA card is fully inserted and securely connected to the slot. The operating status of the host automation device should also be checked. Use the controller’s diagnostic functions to determine whether the expansion card is detected correctly. If the hardware is recognized but communication fails, inspect the software configuration, communication parameters, connected equipment, and relevant cables. In systems containing multiple communication nodes, the network topology and status of other devices should also be examined. A systematic troubleshooting sequence—card installation, host recognition, software configuration, communication parameters, and external equipment—can help identify the source of the problem efficiently.

6. How does the TSXFPP10 exchange data with a PLC system?

As a PCMCIA expansion card, the specific data exchange method of the TSXFPP10 depends on the host automation equipment, supported functions, and overall communication architecture. After the card is installed in a compatible PLC or automation device, its communication or expansion functions are managed through the host controller and associated software. The PLC application can then access the relevant data according to the system configuration and exchange information with external equipment. In an actual project, the PLC hardware, expansion card, communication equipment, and application program must be configured consistently. Incorrect data mapping, communication parameters, or device configuration can prevent successful data exchange even when the physical hardware connection is correct.

7. What should be considered when replacing a TSXFPP10?

Before replacing a TSXFPP10, verify the complete replacement model and confirm compatibility with the existing automation system. For an operating industrial machine or process, the relevant system should be placed into an appropriate maintenance or safe state according to site procedures. Before removing the existing card, it is recommended to record the current system configuration, communication parameters, and equipment information associated with the expansion card. After installing the replacement, confirm that the PCMCIA card is securely connected and that the PLC or host device recognizes it correctly. The associated software configuration should then be restored or verified, followed by communication testing. For critical production systems, complete point-to-point testing should be performed to confirm that external device communication, PLC data exchange, and associated control functions have been fully restored.

8. What should be checked when commissioning the TSXFPP10?

Commissioning the TSXFPP10 should cover hardware installation, system recognition, software configuration, and actual communication performance. First, verify that the PCMCIA card is correctly installed and that the host device detects the expansion card. Next, check the PLC or automation system configuration to ensure that the hardware identification, communication parameters, and data settings match the project requirements. After basic configuration is complete, perform practical communication tests to verify that data can be transmitted and received correctly. If the system is connected to external PLCs, instruments, or other automation equipment, each device should be checked individually for proper status and communication response. If incorrect data is observed, investigate communication parameters, data mapping, device addressing, and application logic. A complete commissioning procedure should verify the entire communication path from the PCMCIA card through the host controller to the connected external equipment.
