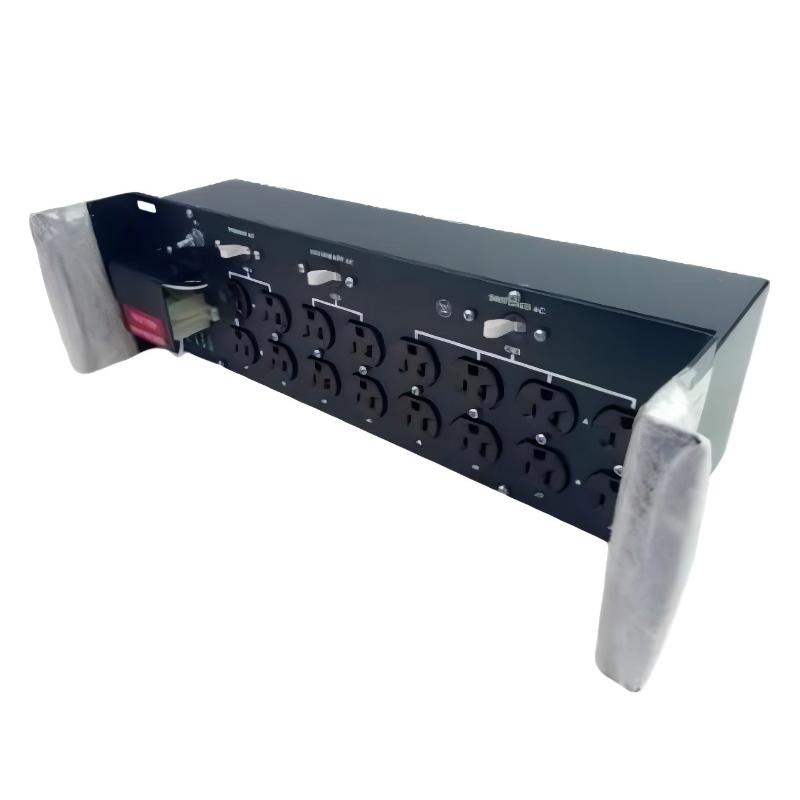

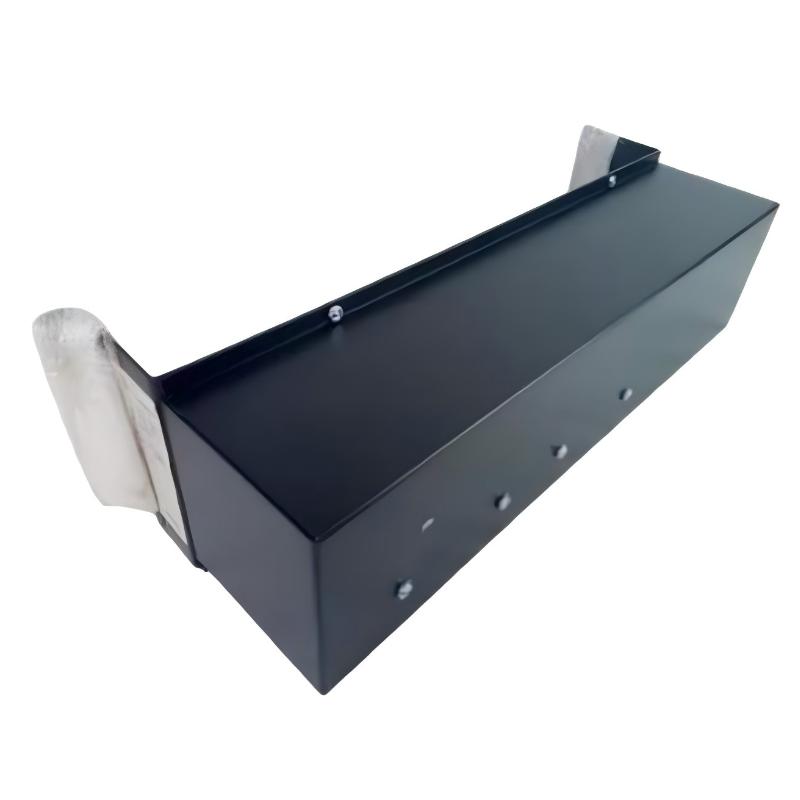

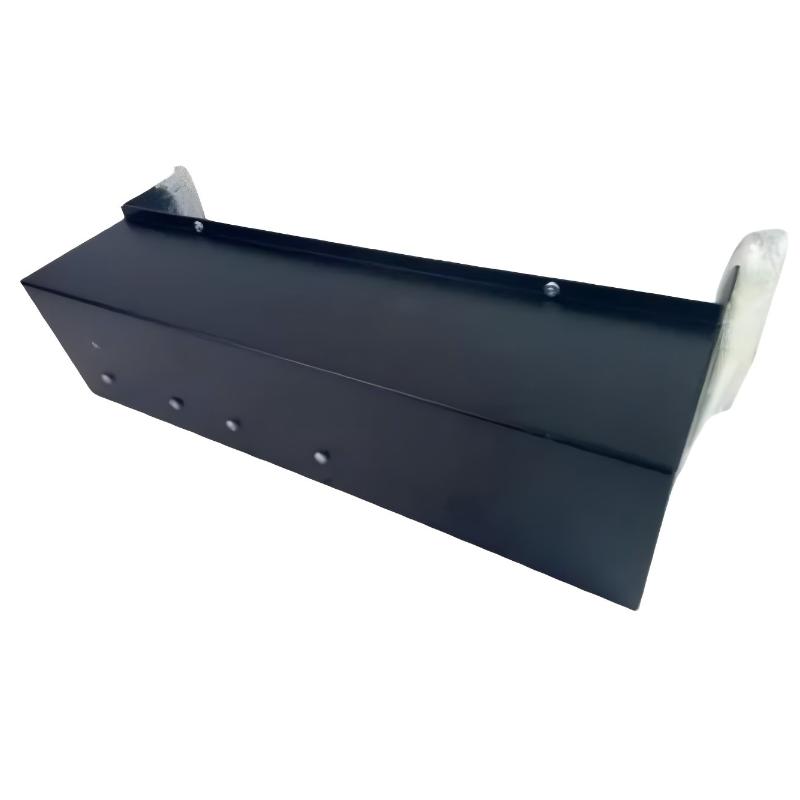

1. What is the main function of the Ovation 1D54540G01 AC Distribution Board?
The 1D54540G01 is an AC distribution panel used within compatible Ovation/WDPF control system hardware. Its primary purpose is to provide an organized point for distributing AC power to associated control-system equipment and assemblies. Rather than performing control logic or signal processing, the board is part of the electrical power distribution structure that supports the operation of connected system components.

2. Where is the 1D54540G01 typically used?
The 1D54540G01 is associated with the panel and cabinet architecture of Westinghouse WDPF and Ovation systems. It is typically installed as part of the system’s AC power distribution arrangement, where controlled and organized power routing is required for compatible equipment. The exact installation position depends on the cabinet design and the specific system generation in which the panel is installed.

3. Does the 1D54540G01 process I/O signals?
No. The 1D54540G01 is an AC distribution panel rather than an analog input, analog output, digital input, digital output, or processor module. Its role is related to electrical power distribution. I/O signal acquisition and control processing are handled by other Ovation/WDPF modules and system components.

4. What should be checked before replacing a 1D54540G01?
Before replacement, confirm the complete part number and system configuration, then identify the incoming and outgoing AC connections associated with the existing panel. The power source should be isolated according to the plant’s electrical safety procedure before any work is performed. It is also useful to document the existing wiring arrangement so that each connection can be restored correctly after installation.

5. What symptoms may indicate a problem with the 1D54540G01?
Possible symptoms include loss of AC power to downstream equipment, intermittent power delivery, unexpected protective-device operation, or multiple connected system components losing power simultaneously. However, these symptoms can also be caused by upstream power supplies, circuit protection, wiring, connectors, or downstream equipment faults. Troubleshooting should therefore begin by checking the complete power path rather than immediately assuming the distribution panel has failed.

6. How should an AC power distribution problem involving the 1D54540G01 be diagnosed?
Start with the incoming AC supply and verify that the expected power is available under safe measurement conditions. Then check protective devices, terminals, connectors, and the distribution path toward the connected equipment. If the incoming supply is normal but a downstream section is unavailable, isolate the problem by checking each distribution branch. Signs of overheating, discoloration, loose terminals, or damaged wiring should also be investigated because they can create intermittent or high-resistance connections.

7. Can a faulty 1D54540G01 affect the operation of the Ovation DCS?
Yes. Although the panel does not perform control calculations, loss or instability of its distributed AC power can affect equipment supplied through the associated power path. Depending on the system architecture, this may result in loss of controllers, I/O hardware, communication equipment, or other supporting devices. Such a condition can consequently produce system alarms or loss of process-control functionality, so power-distribution faults should be treated as potentially significant system faults.

8. What checks should be performed after installing a replacement 1D54540G01?
