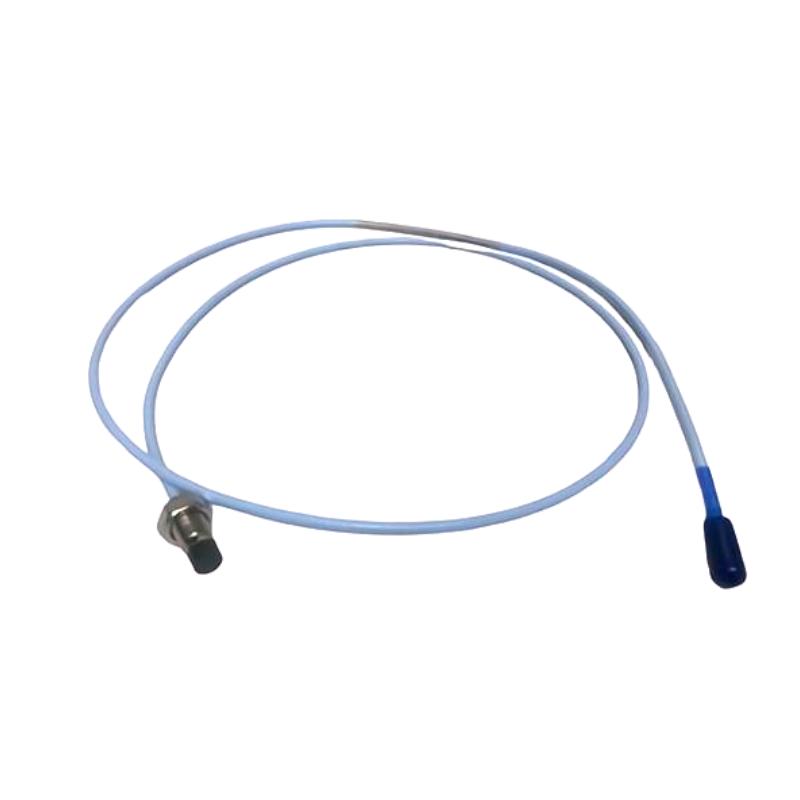

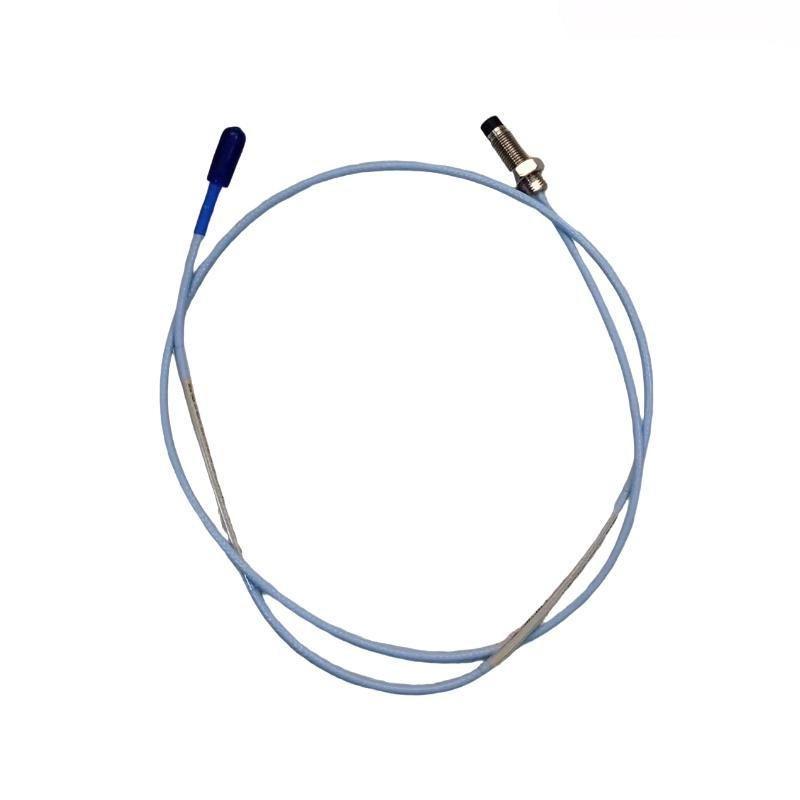

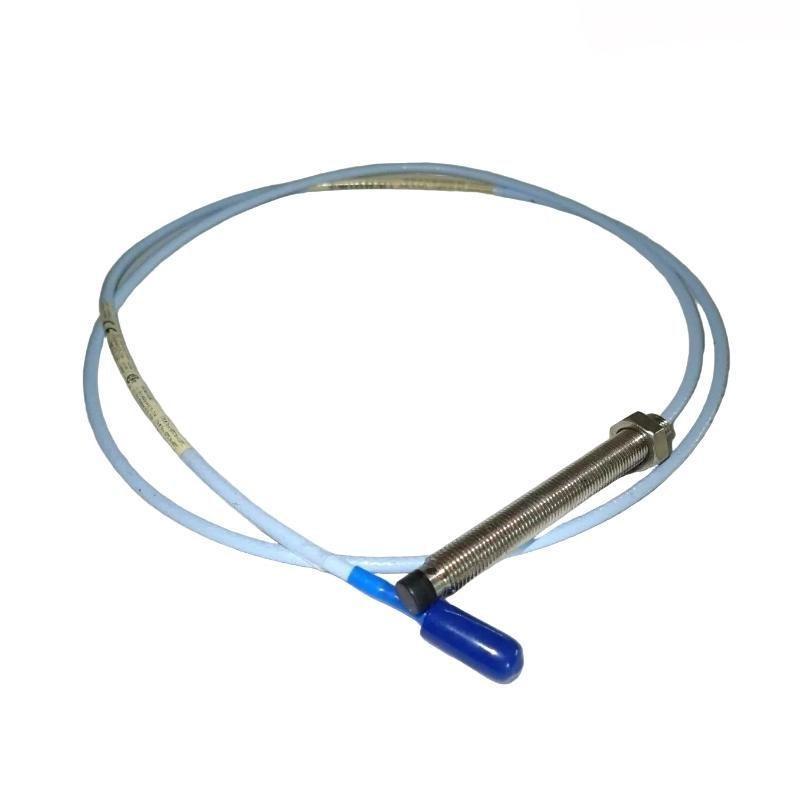

Bently Nevada 330102-00-12-10-01-05 3300 XL 8 mm Proximity Probe
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 330102-00-12-10-01-05 |
| Product Name | 3300 XL 8 mm Proximity Probe |
| Product Series | 3300 XL |
| Product Type | 8 mm Eddy-Current Proximity Probe |
| Measurement Principle | Non-contact eddy-current measurement |
| Probe Tip Diameter | 8.0 mm |
| Thread Type | 3/8-24 UNF-2A |
| Unthreaded Length | 0 in |
| Overall Case Length | 1.2 in |
| Total Cable Length | 1 meter |
| Cable Protection | Stainless steel armored cable |
| Connector Type | Miniature coaxial ClickLoc connector with connector protector |
| Approval Option | CSA, ATEX, IECEx; verify markings on the actual product |
| Calibration Target Material | AISI 4140 steel, subject to the applicable system configuration |
| Cable Impedance | 75 Ω nominal |
| Linear Measurement Range | 0.25 to 2.30 mm |
| Nominal Scale Factor | 7.87 V/mm (200 mV/mil) |
| Frequency Response | 0 to 10 kHz |
| Probe Operating Temperature | -51°C to +177°C |
| System Requirements | Compatible extension cable, Proximitor Sensor, and monitoring equipment as required |
| Weight | 0.323 kg |
| Typical Applications | Shaft vibration, relative displacement, and shaft position monitoring in turbines, compressors, pumps, and other rotating machinery |
FAQ
Q1: What is the Bently Nevada 330102-00-12-10-01-05 used for?
The Bently Nevada 330102-00-12-10-01-05 is a 3300 XL 8 mm proximity probe designed for non-contact measurement of the distance between the probe tip and a conductive target, typically a rotating machinery shaft. When connected to a compatible Proximitor Sensor and monitoring system, it supports shaft displacement and relative vibration monitoring.
Q2: What does the model number 330102-00-12-10-01-05 indicate?
The model number identifies the probe family and its configuration. The 330102 designation identifies the 3300 XL 8 mm probe family, while the remaining codes specify configuration details such as mounting dimensions, cable length, connector arrangement, and approval options. Verify the complete part number before ordering a replacement.
Q3: Is this probe compatible with all Bently Nevada 3300 XL monitoring systems?
Compatibility depends on the Proximitor Sensor, extension cable arrangement, total system length, and calibration requirements. Use it with components designed for the 3300 XL 8 mm system and confirm the complete system configuration before installation.
Q4: What is the function of the armored cable?
The armored cable provides additional mechanical protection against abrasion and physical damage in industrial environments. It is useful in installations exposed to vibration or possible contact with nearby equipment. The cable should still be routed carefully and protected from excessive bending, crushing, and connector damage.
Q5: What does the ClickLoc connector with protector do?
The miniature coaxial ClickLoc connector provides the electrical connection between the probe cable and compatible system components. The connector protector helps reduce the risk of mechanical damage. During installation, ensure the connector is clean, securely connected, and free from visible damage.
Q6: Why is calibration target material important for this proximity probe?
Eddy-current measurement depends on the electrical properties of the conductive target. The probe system must be calibrated for the appropriate target material to ensure reliable displacement measurements. Confirm the target material and calibration requirements for the installed probe and Proximitor Sensor combination.
Q7: What problems can occur if the probe is installed incorrectly?
An incorrect probe gap, loose mounting, damaged cable, poor connector contact, or incompatible system components can cause unstable signals or inaccurate shaft displacement readings. Follow the manufacturer’s installation instructions and verify the electrical connections and probe gap before operating the equipment.
Q8: What should be checked before replacing an existing 3300 XL 8 mm probe?
Verify the complete part number, thread type, case length, cable length, armored cable construction, connector configuration, and approval options. Also confirm compatibility with the existing Proximitor Sensor and extension cable arrangement. Matching only the probe tip diameter does not guarantee correct system operation.
Bently Nevada 330102-00-12-10-01-05 3300 XL 8 mm Proximity Probe is in stock. Please contact us for a quick quote and competitive pricing.
