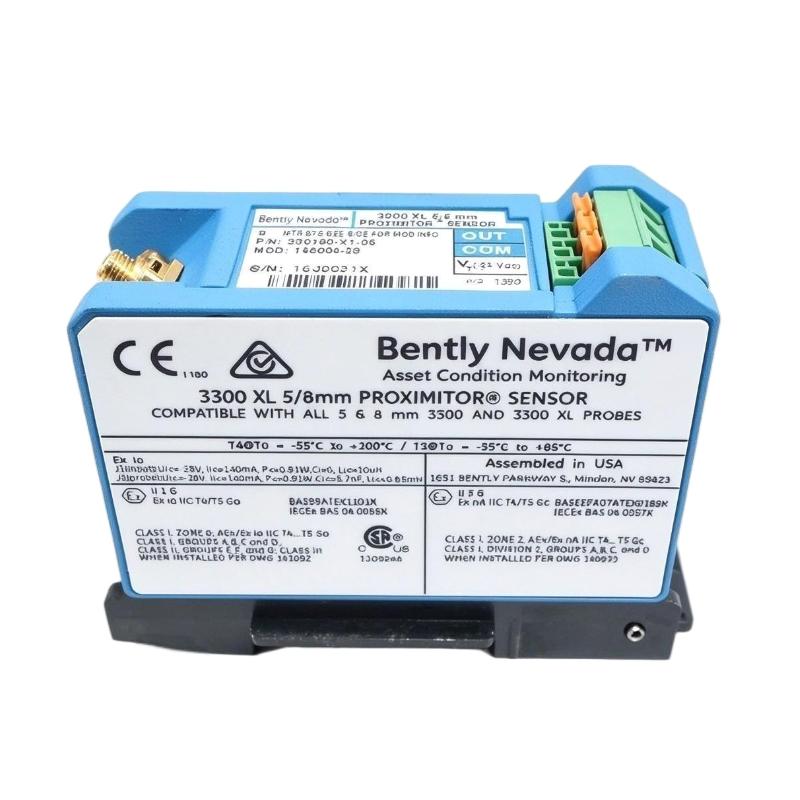

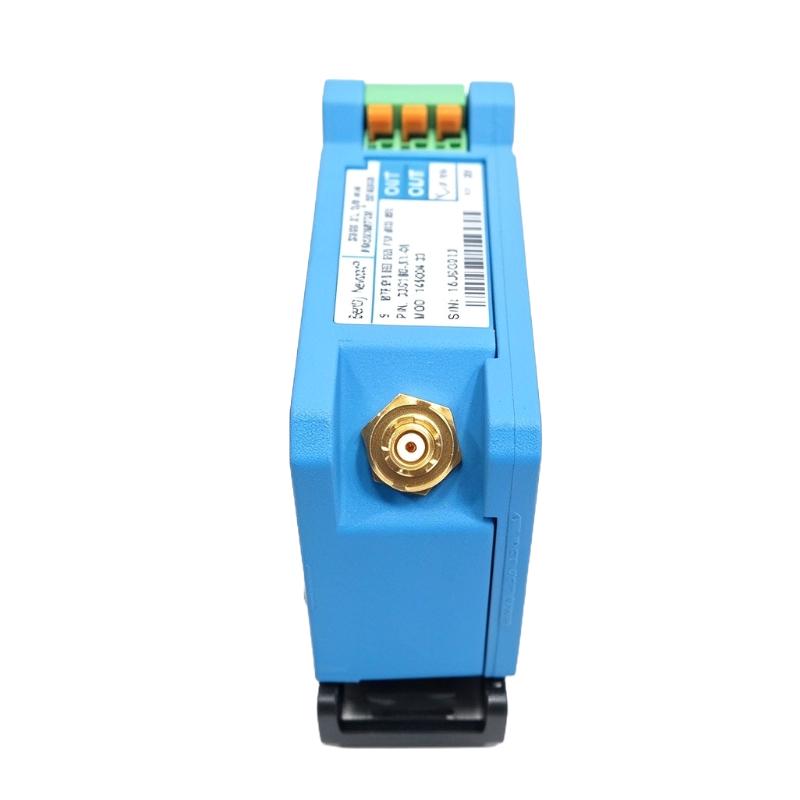

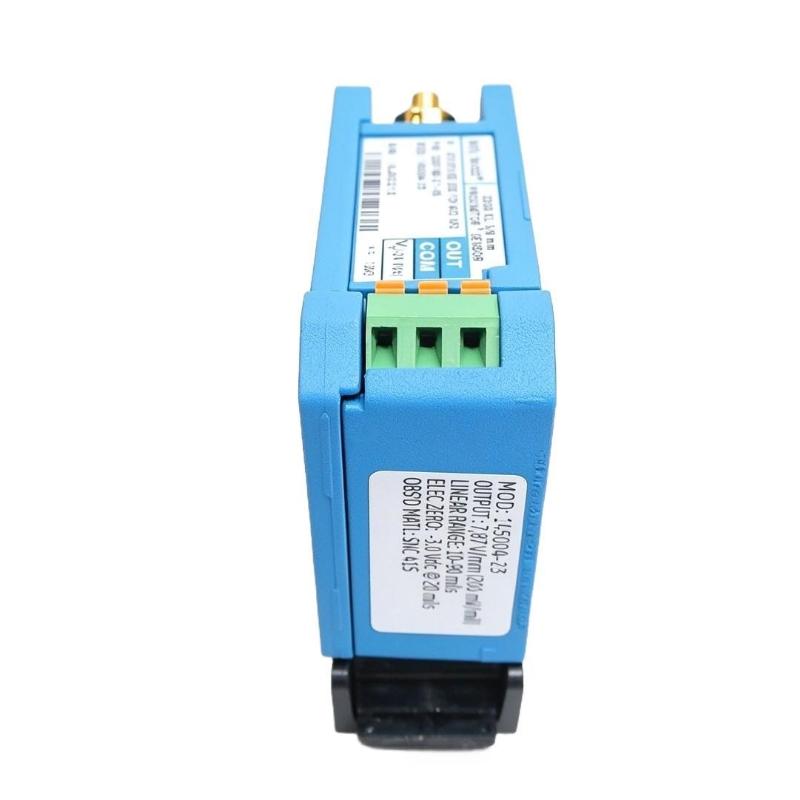

Bently Nevada 330180-X1-05 145004-102 Seismic Ddetector Velocity Sensor
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 330180-X1-05 |
| Ordering Number | 145004-102 |
| Product Name | 3300 XL Proximitor Sensor |
| Product Series | 3300 XL |
| Product Type | Proximity Transducer Signal Conditioner |
| Measurement Principle | Eddy-current proximity measurement |
| Primary Function | Processes proximity probe signals for shaft displacement and vibration monitoring |
| Compatible Probe System | Compatible 3300 XL 8 mm proximity transducer system; verify the complete system configuration |
| Total System Length | 9 m |
| Mounting Type | DIN-rail mounting (X1 configuration) |
| Supply Voltage | -17.5 to -26 VDC |
| Maximum Supply Current | 12 mA |
| Nominal Scale Factor | 7.87 V/mm (200 mV/mil) |
| Linear Range | 0.25 to 2.3 mm (10 to 90 mils); nominal linear range 2.0 mm |
| Recommended Probe Gap | 1.27 mm (50 mils), approximately -9 VDC output |
| Output Impedance | 50 Ω nominal |
| Frequency Response | 0 to 10 kHz (-3 dB) |
| Operating Temperature | -52°C to +100°C |
| Storage Temperature | -52°C to +105°C |
| Connector Type | Gold-plated ClickLoc connector; verify the exact configuration |
| Housing Material | A308 aluminum |
| Dimensions | 81.3 × 35.1 × 63.5 mm |
| Weight | 0.246 kg |
| Typical Applications | Shaft vibration and displacement monitoring in turbines, compressors, pumps, and other rotating machinery |
FAQ
Q1: What is the Bently Nevada 330180-X1-05 145004-102 used for?
The Bently Nevada 330180-X1-05 with ordering number 145004-102 is a 3300 XL Proximitor Sensor designed for industrial machinery monitoring. It conditions signals from a compatible proximity probe and produces an output related to the distance between the probe tip and the monitored shaft. This allows a compatible monitoring system to measure shaft position and relative vibration.
Q2: What is the difference between model 330180-X1-05 and ordering number 145004-102?
330180-X1-05 identifies the base model, while 145004-102 identifies the specified modified ordering configuration. When purchasing a replacement, check both identifiers and confirm that the electrical characteristics, mounting arrangement, system length, and approval requirements match the existing installation.
Q3: Is the 145004-102 version compatible with a 9-meter proximity transducer system?
Product specifications for this configuration identify a 9-meter system length. The probe, extension cable, and Proximitor Sensor must be matched as a complete system. Before installation, verify the individual component part numbers and total system length to avoid measurement errors.
Q4: What power supply does the sensor require?
The specified supply range is typically -17.5 to -26 VDC, with a maximum current consumption of 12 mA. Installations using safety barriers may have different minimum supply requirements. Check the applicable wiring diagram and barrier specifications before connecting the sensor.
Q5: What are the scale factor and measurement range?
The nominal scale factor is 7.87 V/mm (200 mV/mil). The specified operating range is approximately 0.25 to 2.3 mm, with a nominal linear range of 2.0 mm. Actual measurement performance depends on the matched probe system, target material, calibration, and installation conditions.
Q6: Can this Proximitor Sensor be used for turbine and compressor monitoring?
Yes. The 3300 XL Proximitor Sensor family is commonly used in rotating machinery monitoring, including turbines, compressors, pumps, and other equipment with fluid-film bearings. The application must use a compatible probe system and monitoring input configured for the intended measurement.
Q7: What could cause an incorrect or unstable output signal?
Possible causes include an incorrect probe gap, damaged extension cable, loose wiring, an incompatible probe and sensor combination, electrical interference, or unstable supply voltage. Check the complete probe-cable-sensor circuit and verify the installation against the applicable technical documentation before replacing the unit.
Q8: What should be verified before replacing the 330180-X1-05 145004-102?
Confirm the full model and ordering number, total system length, probe and extension cable compatibility, mounting configuration, power supply, and any required hazardous-area approvals. Also inspect the existing wiring and monitoring channel. Using a sensor with a different configuration may affect measurement accuracy or prevent correct system operation.
