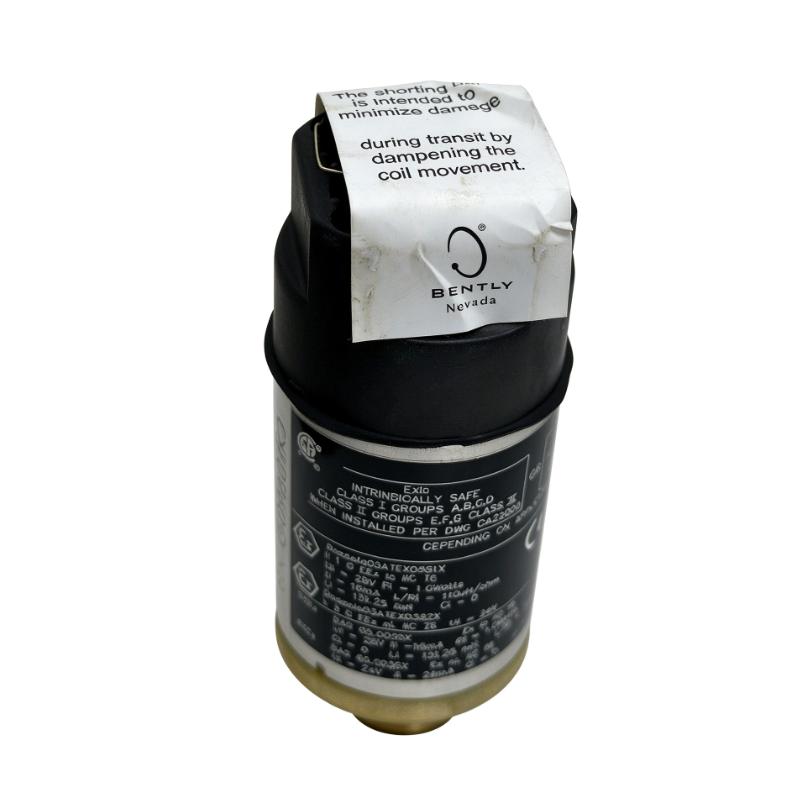

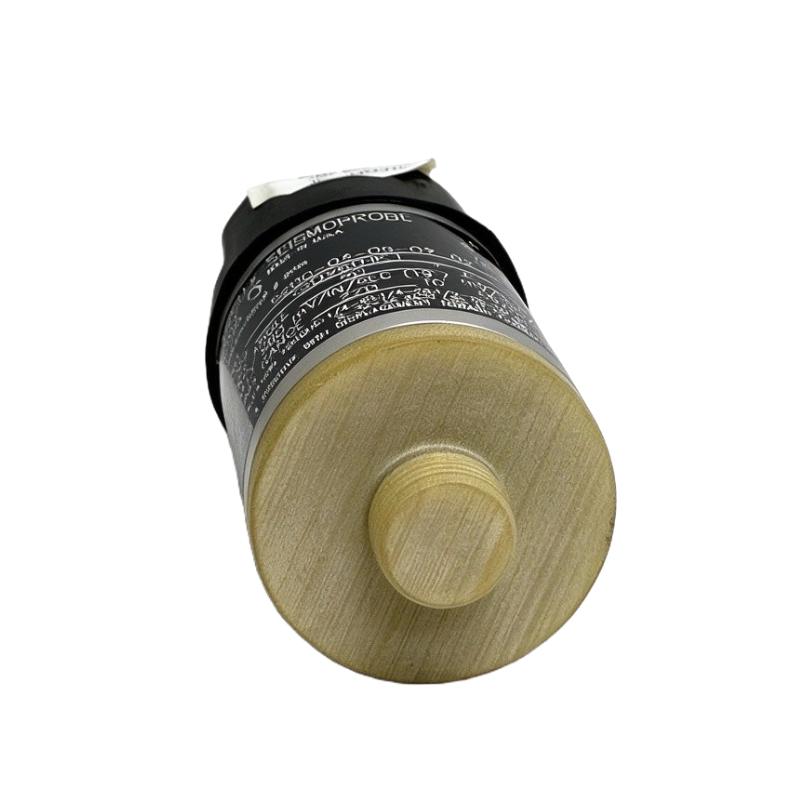

Bently Nevada 9200-06-32-08-02 Two-Wire Velocity-Type Seismic Sensor
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 9200-06-32-08-02 |
| Product Name | Two-Wire Velocity-Type Seismic Sensor |
| Product Series | 9200 Seismoprobe |
| Product Type | Two-Wire Velocity Transducer |
| Measurement Principle | Electrodynamic moving-coil technology |
| Measurement Type | Absolute vibration velocity relative to free space |
| Primary Application | Machine casing, bearing housing, and structural vibration monitoring |
| Sensor Diameter | 41.4 mm |
| Weight | 0.3 kg |
| Sensitivity | 20 mV/mm/s (500 mV/in/s), typically ±5% under specified calibration conditions |
| Calibration Load | 10 kΩ |
| Typical Frequency Response | Depends on the selected mounting-angle and minimum-frequency option; verify the applicable configuration |
| Dynamic Operating Range | Up to 2.54 mm peak-to-peak displacement |
| Coil Resistance | 1.25 kΩ ±5% |
| Locked-Coil Inductance | 125 mH, typical |
| Sensitivity Temperature Coefficient | 0.2%/°C |
| Sensor Technology | Self-generating velocity sensor; normally requires no external sensor power |
| Output Type | Voltage output proportional to vibration velocity |
| Typical Applications | Pumps, motors, compressors, turbines, and industrial rotating machinery |
FAQ
Q1: What is the Bently Nevada 9200-06-32-08-02 used for?
The Bently Nevada 9200-06-32-08-02 is a two-wire velocity-type seismic sensor designed to measure absolute vibration of machine casings, bearing housings, and other structural surfaces. Its output helps monitoring systems assess machine vibration and identify changes in operating condition.
Q2: How does the 9200 sensor measure vibration?
It uses electrodynamic moving-coil technology. When the sensor body vibrates, relative movement inside the transducer generates a voltage proportional to vibration velocity. The output can then be processed by compatible monitoring or diagnostic equipment.
Q3: What is the difference between a velocity sensor and a proximity probe?
A velocity sensor measures vibration of the surface on which it is mounted, relative to free space. A proximity probe measures the displacement of a conductive target, such as a rotating shaft, relative to the probe tip. The two sensor types provide different information and are not interchangeable.
Q4: Does the 9200-06-32-08-02 require an external power supply?
The 9200 Seismoprobe uses a self-generating moving-coil design and generally does not require external power for the sensor itself. However, the connected monitor or measurement instrument must be compatible with its voltage output and electrical characteristics.
Q5: What monitoring equipment is compatible with this sensor?
Compatibility depends on the monitoring device’s input type, sensitivity settings, frequency response, and signal-conditioning requirements. Check the receiving equipment’s specifications and confirm that it supports the 9200 sensor’s output before connecting it.
Q6: What can cause inaccurate or unstable vibration readings?
Possible causes include loose mounting, an unsuitable mounting surface, incorrect sensor orientation, damaged wiring, poor electrical connections, or incompatible monitoring settings. Check the installation and signal path before concluding that the machine itself has a vibration problem.
Q7: Why is the sensor’s mounting orientation important?
The 9200 series includes configuration options designed for different mounting angles and minimum operating frequencies. Incorrect orientation can affect the sensor’s mechanical response and measurement accuracy. Confirm that the selected configuration matches the intended measurement direction and installation arrangement.
Q8: What should be checked before replacing an existing 9200 sensor?
Verify the complete part number, mounting-angle option, connector or cable arrangement, mounting-base type, and approval requirements. Also check the required frequency response, calibration sensitivity, and compatibility with the existing monitoring equipment. Matching the product series alone is not sufficient to ensure a suitable replacement.
Bently Nevada 9200-06-32-08-02 Two-Wire Velocity-Type Seismic Sensor is in stock. Please contact us for a quick quote and competitive pricing.
