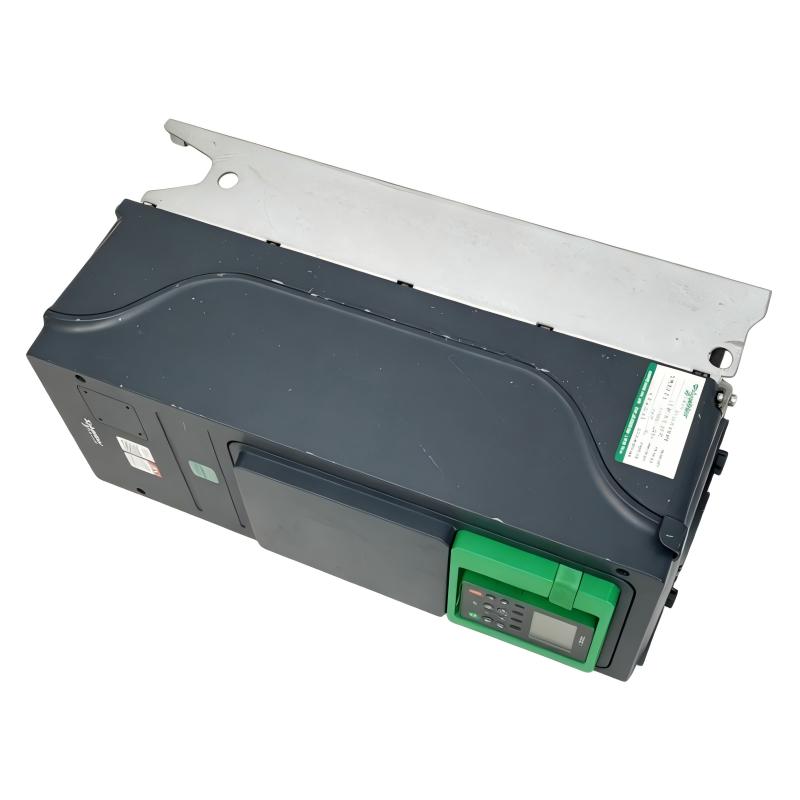

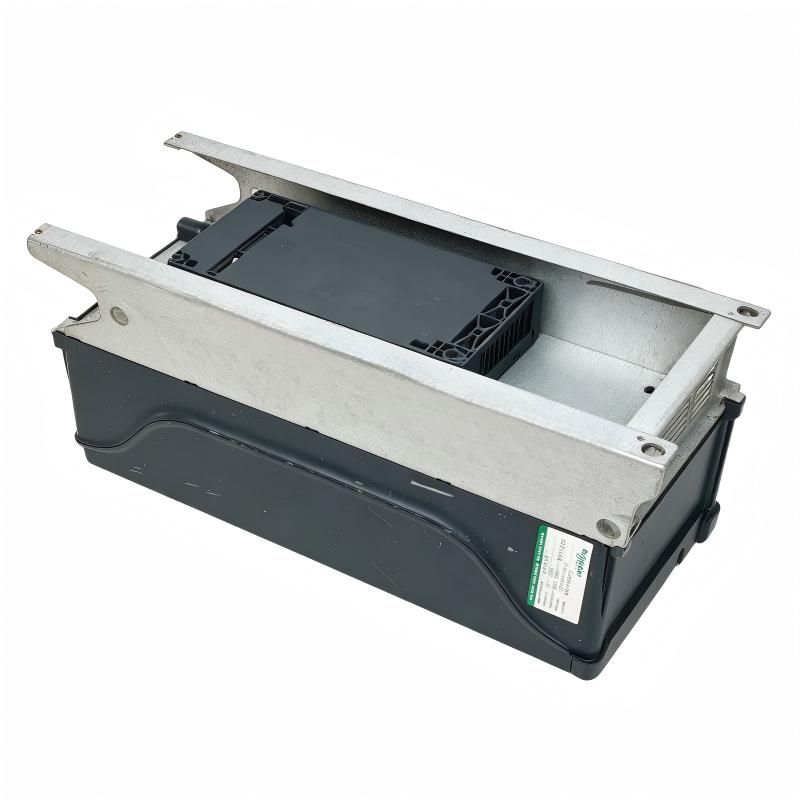

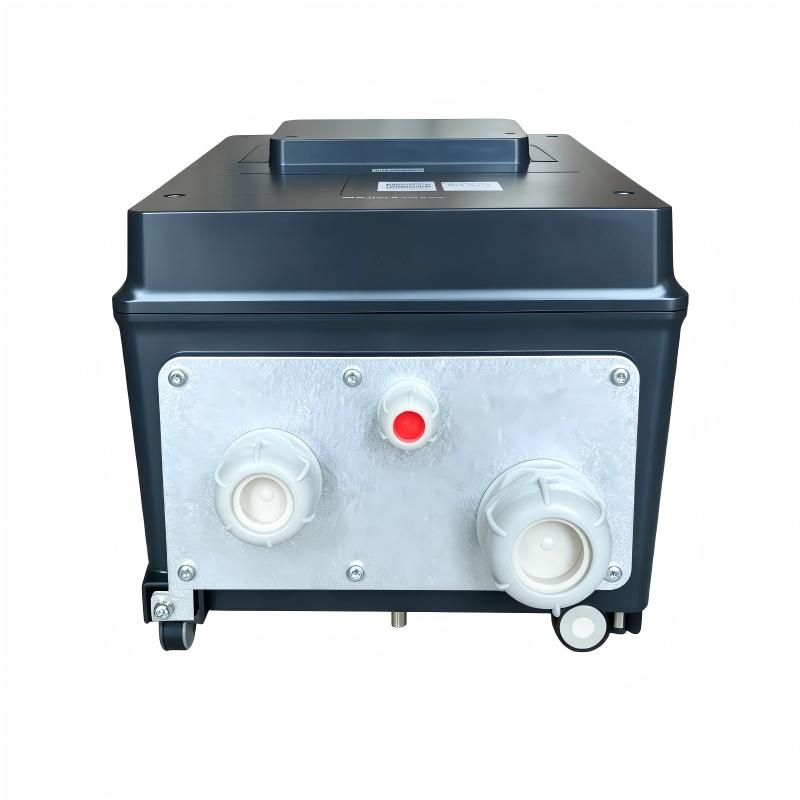

Schneider ATV650D15N4 Variable-Speed Drive
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Schneider Electric |
| Product Series | Altivar Process ATV600 |
| Model | ATV650D15N4 |
| Product Type | Variable-Speed Drive / Frequency Converter |
| Rated Power | 15 kW / 20 HP |
| Rated Supply Voltage | 380–480 VAC |
| Supply Phase | 3-phase |
| Input Frequency | 50/60 Hz |
| Output Voltage | Up to the input supply voltage |
| Motor Control | Asynchronous, synchronous and reluctance motor control |
| Drive Rating | 15 kW |
| Enclosure Protection | IP55 |
| Drive Family | Altivar Process ATV650 |
| Frame Size | Size A |
| Main Function | Variable-speed control and regulation of industrial motors |
| Typical Applications | Pumps, fans, compressors, conveyors and fluid-process equipment |
| Process Functions | Integrated process monitoring, control and energy measurement |
| Energy Management | Integrated power measurement and energy dashboard |
| Protection Functions | Motor and drive monitoring and protection |
| Stop and Go Function | Supported |
| Communication | Industrial communication options available through compatible interfaces |
| Installation | Industrial control cabinet or suitable protected installation environment |
| Dimensions | 264 × 678 × 299 mm |
| Weight | 19.6 kg |
FAQ
1. What is the main function of the Schneider ATV650D15N4?
The ATV650D15N4 is a 15 kW variable-speed drive designed to control the speed, torque and operating behavior of three-phase industrial motors. It is part of the Altivar Process ATV650 series.
2. What motor power is suitable for the ATV650D15N4?
The drive is rated at 15 kW, equivalent to approximately 20 HP. Motor selection should also consider the required operating current, duty cycle, overload requirements and application characteristics.
3. What is the input voltage range of the ATV650D15N4?
The ATV650D15N4 is designed for a three-phase 380–480 VAC power supply. The actual installation voltage must remain within the drive’s specified operating range.
4. What type of motors can the ATV650D15N4 control?
The Altivar Process platform supports control of asynchronous motors and can also be used with synchronous and reluctance motor applications when the appropriate control configuration is selected.
5. What applications are suitable for the ATV650D15N4?
Typical applications include pumps, fans, compressors, conveyors and other industrial process equipment where adjustable motor speed and process control are required.
6. What should be checked if the motor does not start after commissioning?
Check the incoming three-phase supply, drive fault status, motor wiring, control commands, run-enable conditions, frequency reference, motor parameters and any active protection functions. The drive’s diagnostic information should be checked before attempting repeated starts.
7. What should be checked if the ATV650D15N4 reports an overcurrent fault?
Inspect the motor and mechanical load first. Then check acceleration settings, motor nameplate parameters, output cable condition, motor insulation and possible mechanical blockage. Excessive load or an incorrectly configured motor parameter set can also cause overcurrent trips.
8. Can the ATV650D15N4 be used for process monitoring and energy management?
Yes. The ATV650 platform includes integrated process monitoring and control functions, as well as power measurement and energy-management features that can be used to monitor motor and process operating conditions.
Schneider ATV650D15N4 Variable-Speed Drive is in stock. Please contact us for a quick quote and competitive pricing.
