1. What is the main function of the Schneider ATV650D22N4E Variable-Speed Drive?

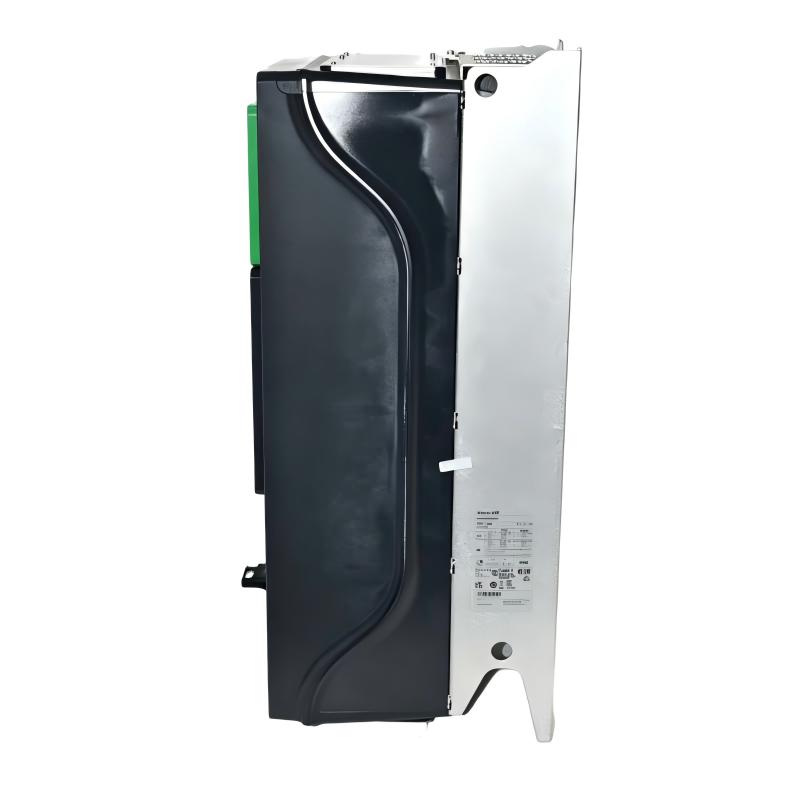

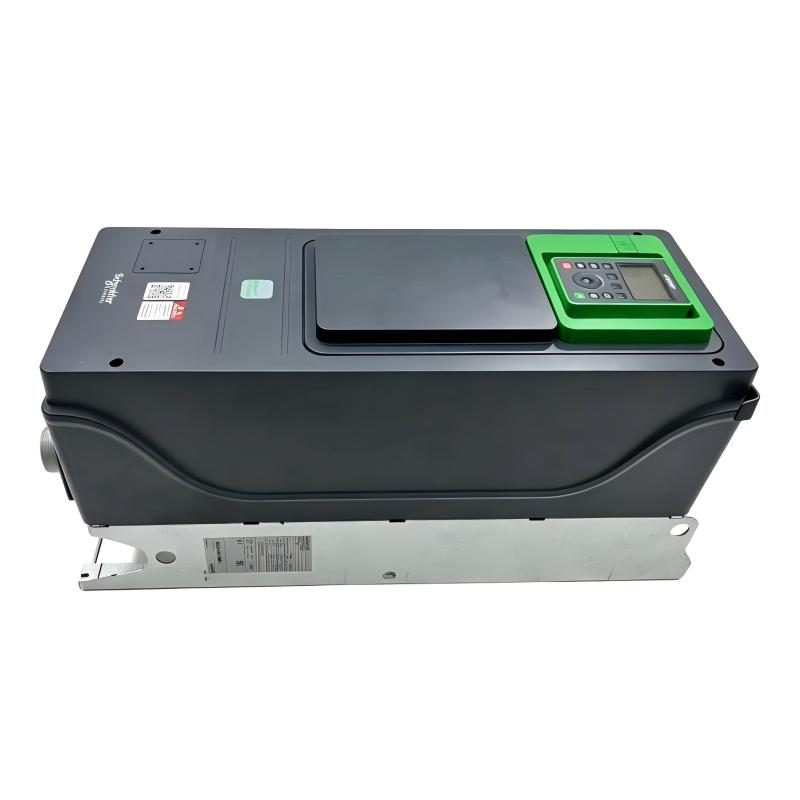

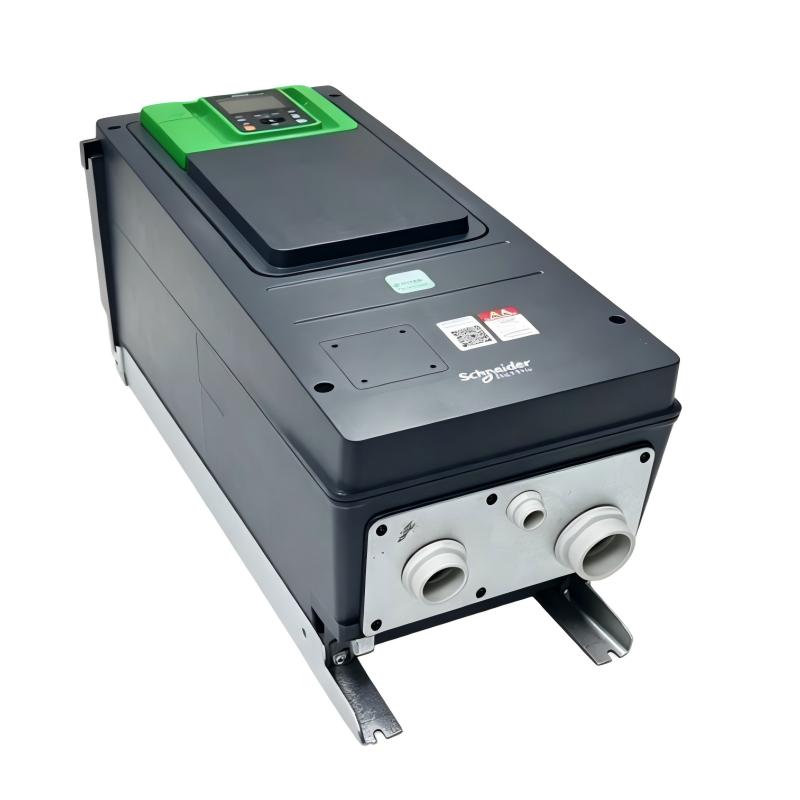

The ATV650D22N4E is a 22 kW variable-speed drive from the Schneider Electric Altivar Process ATV600 series. It is designed to control the speed, torque and operating performance of three-phase industrial motors. The built-in disconnect switch provides a convenient means of isolating the drive during maintenance, while the drive itself provides controlled acceleration, deceleration and variable-speed operation for industrial process equipment.

2. What motor power ratings are supported by the ATV650D22N4E?
The ATV650D22N4E is rated for 22 kW / 30 HP under normal-duty operation and 18.5 kW / 25 HP under heavy-duty operation. At a 4 kHz switching frequency, the continuous output current is 46.3 A for normal duty and 39.2 A for heavy duty. Motor selection should be based on rated motor current and actual load conditions in addition to motor power, especially when the application involves frequent starts, high starting torque or sustained overload conditions.

3. What power supply does the ATV650D22N4E require?
The drive operates from a three-phase 380–480 VAC supply at 50–60 Hz. Under normal-duty operation, the typical input current is 39.6 A at 380 V and 34.4 A at 480 V, while heavy-duty input current is approximately 34.1 A at 380 V and 29.9 A at 480 V. The upstream protection, disconnecting equipment and cable sizing should be selected according to the actual installation conditions and applicable electrical requirements.

4. Which motor types can be controlled by the ATV650D22N4E?
The ATV650D22N4E supports both asynchronous and synchronous motors. Asynchronous motor applications can use constant-torque, optimized-torque or variable-torque control, while synchronous applications can include permanent-magnet and synchronous-reluctance motors. During commissioning, accurate motor nameplate information should be entered, including voltage, current, frequency and speed, so that the drive can establish appropriate control parameters and provide stable motor performance.

5. What should be checked if the motor does not start with the ATV650D22N4E?
First verify that the three-phase input supply is available and that the disconnect switch is in the correct operating position. Check the drive display for active faults, then verify the run command, frequency reference, control source, enable conditions, external interlocks and emergency-stop circuits. If the drive is controlled by a PLC or industrial network, confirm that the PLC is sending the correct start command and speed reference. Motor wiring and configured motor parameters should also be checked before replacing any hardware.

6. How can an overcurrent fault on the ATV650D22N4E be diagnosed?
An overcurrent fault should be investigated from both the mechanical and electrical sides of the system. Check for excessive mechanical load, blocked machinery, abnormal starting torque requirements and sudden load changes. Inspect the motor cable, terminals and motor windings for short circuits, insulation problems or loose connections. If the fault occurs mainly during acceleration, review the acceleration time and motor control parameters. Incorrect motor data or an unsuitable duty rating can also result in excessive output current.

7. What should be done if the ATV650D22N4E trips repeatedly during operation?
Record the fault code and determine whether the trip occurs during startup, acceleration, steady-state operation, deceleration or a sudden load change. Then check the incoming power supply, motor load, motor temperature, ventilation, cable connections and drive parameters. Repeated overcurrent, overvoltage, undervoltage or overtemperature protection should be investigated according to the specific fault condition rather than repeatedly resetting the drive. Diagnostic history can help identify whether the problem originates from the power system, motor, mechanical load or drive configuration.

8. What communication and monitoring functions are available on the ATV650D22N4E?
The ATV650D22N4E supports Ethernet, Modbus Serial and Modbus TCP communication and provides three RJ45 communication ports, including one Ethernet port and two serial communication ports. These interfaces allow the drive to exchange operating data and control commands with PLC, SCADA and other industrial automation systems. The drive also provides process monitoring, power measurement, energy monitoring and asset monitoring functions. If communication fails, check the network configuration, device addressing, communication parameters, cables, PLC or SCADA settings and the drive’s communication diagnostics.
