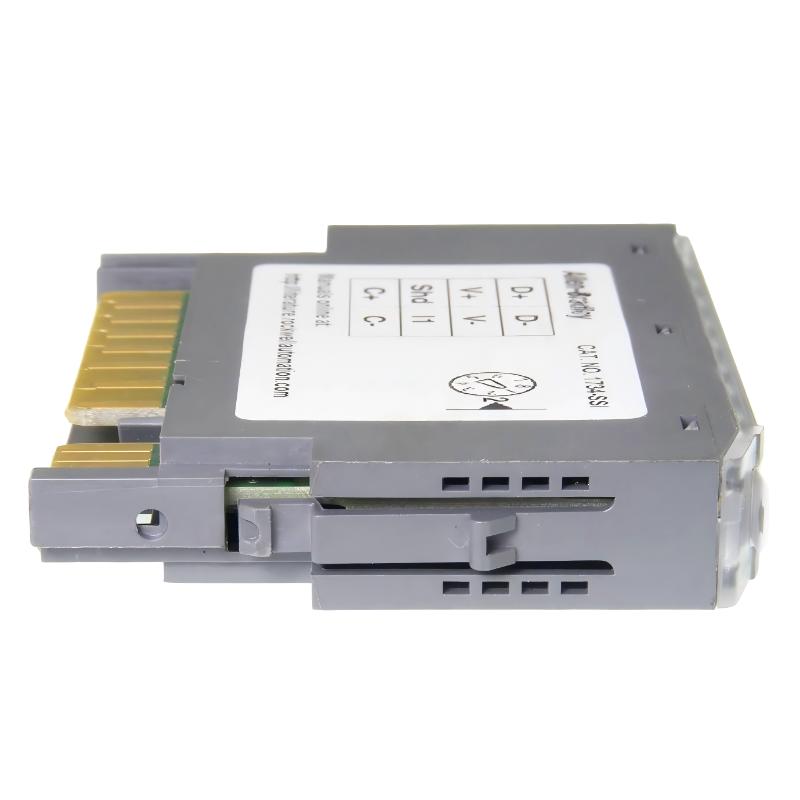

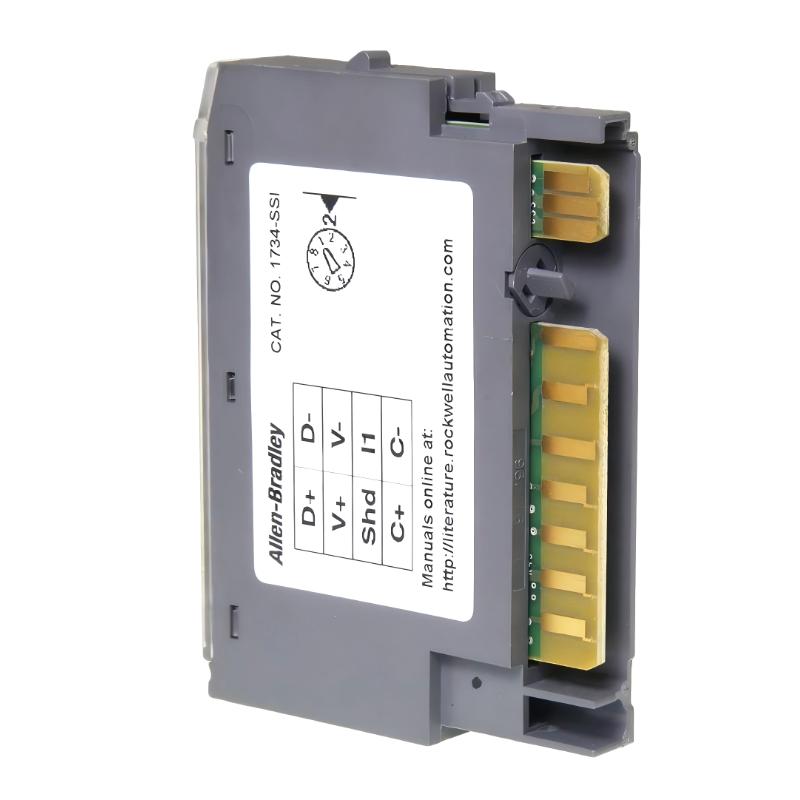

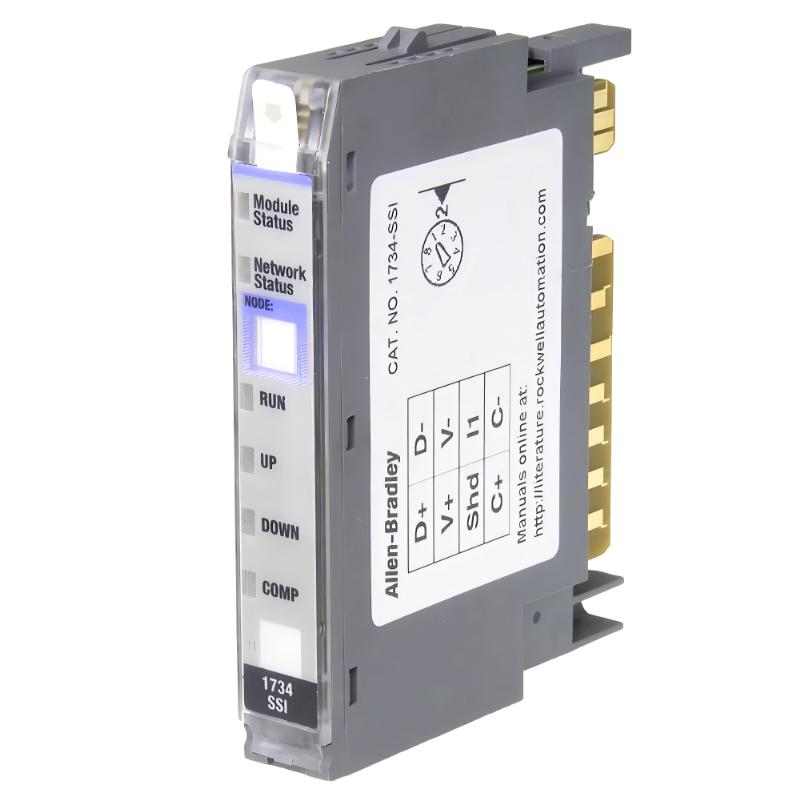

Allen Bradley 1734-SSI Industrial Equipment
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 1734-SSI |
| Product Type | Industrial Equipment |
| Device Category | POINT I/O SSI Absolute Encoder Interface Module |
| Input Channels | 1-channel SSI (Synchronous Serial Interface) |
| Supported Devices | Absolute encoders (rotary, linear, optical displacement sensors) |
| Communication Protocol | SSI (RS-422 physical layer) |
| Data Rate | 125 kHz / 250 kHz / 500 kHz / 1 MHz / 2 MHz (configurable) |
| Word Length | 2 to 31 bits (up to 32-bit format supported) |
| Data Format | Gray code or binary (configurable with conversion support) |
| Resolution Handling | High-resolution absolute position data acquisition |
| Word Delay Time | 16 µs to 65,535 µs (configurable) |
| Position Update Time | ≥ 0.5 ms |
| Supply Voltage | 10–28.8V DC |
| Field Power Current | Approx. 4–5 mA typical at 24V DC |
| Backplane Current | ~110 mA @ 5V DC |
| Power Dissipation | ~0.94 W |
| Isolation Voltage | 50V continuous (field to system) |
| Input Impedance | 3.6 kΩ (max 4.7 kΩ) |
| Input Filter Time | ~0.5 ms |
| Communication Interface | POINT I/O backplane |
| Mounting Type | DIN rail (1734-TB / 1734-TBS base required) |
| Dimensions (W × H × D) | Approx. 12.0 × 56.0 × 75.5 mm |
| Weight | Approx. 0.1–0.2 kg |
| Operating Temperature | -20°C to +55°C |
| Vibration Resistance | Up to 5 g (10–500 Hz) |
| Shock Resistance | Up to 30 g |
| Application Area | Motion control, position feedback systems, industrial encoder data acquisition |
FAQ
What is the main function of the 1734-SSI module?
It is used to read absolute position data from SSI-compatible encoders in industrial automation systems.
What type of sensors does it support?
It supports absolute encoders such as rotary encoders, linear displacement sensors, and optical measurement devices using SSI protocol.
How many channels does it have?
It provides a single SSI input channel.
What communication standard does it use?
It uses the SSI (Synchronous Serial Interface) protocol with RS-422 physical signaling.
Can it handle different encoder resolutions?
Yes, it supports configurable word lengths from 2 to 31 bits, allowing flexible resolution handling.
What is the update speed of the module?
The position forming time is typically 0.5 ms or faster depending on configuration.
Is it suitable for industrial environments?
Yes, it is designed for harsh industrial conditions including vibration, shock, and wide temperature ranges.
Where is the 1734-SSI commonly used?
It is used in motion control systems, robotics, packaging machines, and any application requiring precise absolute position feedback.
Allen Bradley 1734-SSI Industrial Equipment is in stock. Please contact us for a quick quote and competitive pricing.
