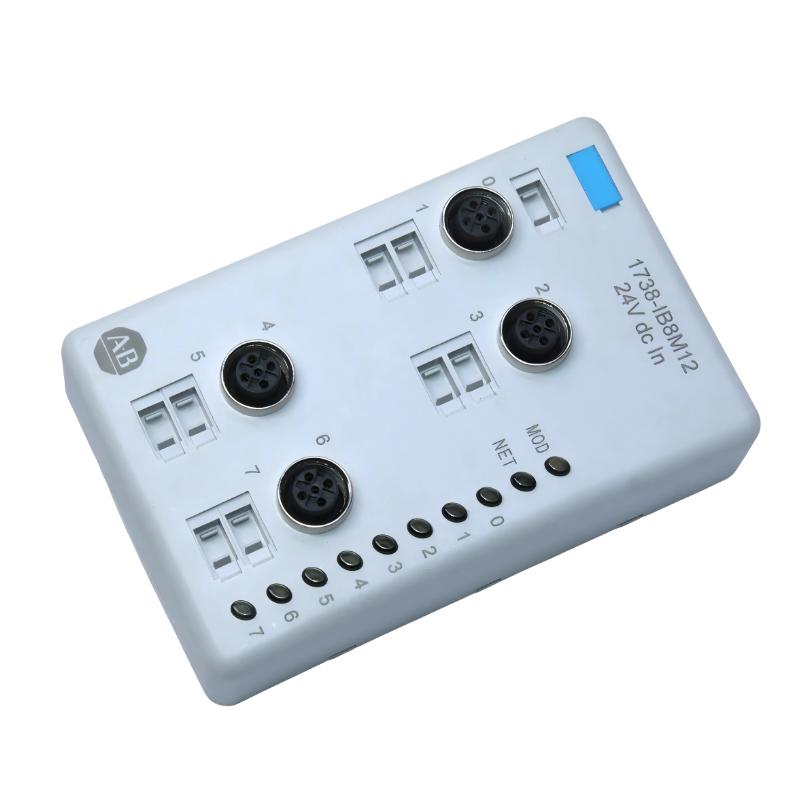

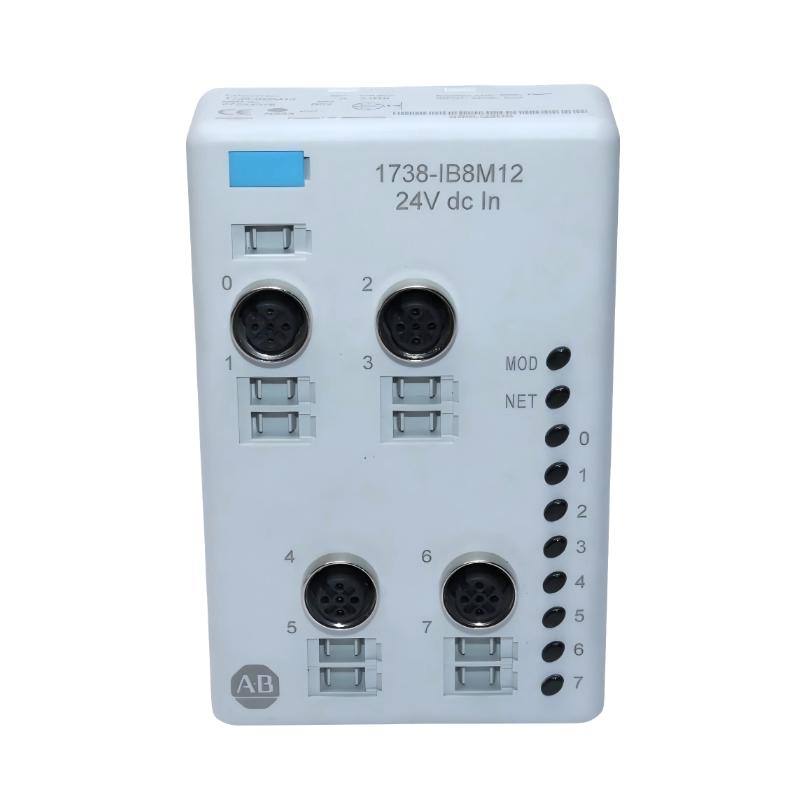

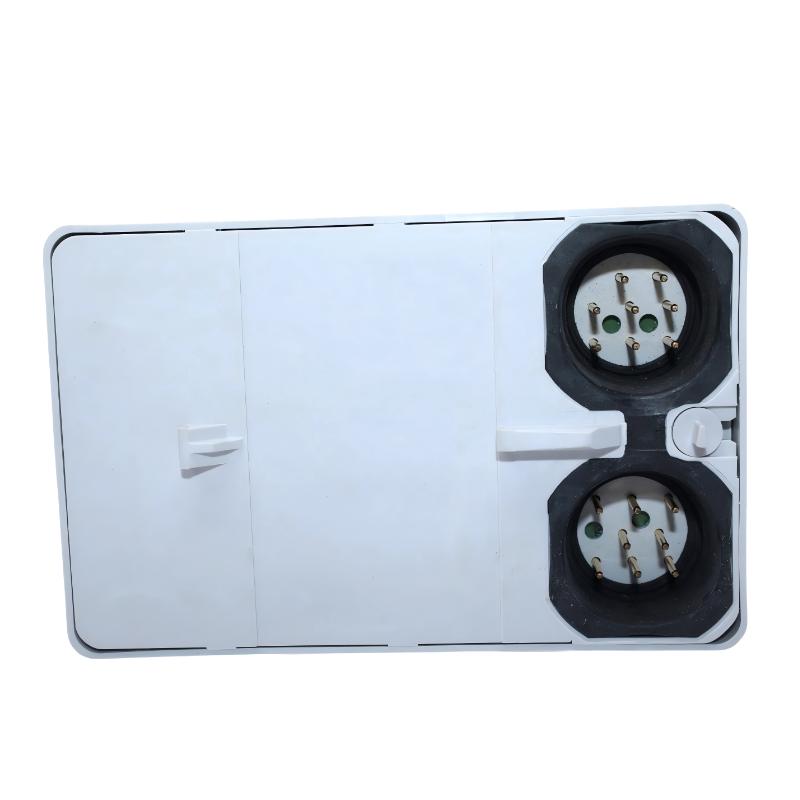

Allen Bradley 1738-IB8M12 Industrial Equipment
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 1738-IB8M12 |
| Product Type | Industrial Equipment |
| Device Category | POINT I/O DC Digital Input Module (M12 Connector Type) |
| Input Channels | 8-point DC digital inputs |
| Input Type | Sinking/sourcing compatible (24V DC signals) |
| Input Voltage Range | 24V DC nominal (19.2–28.8V DC operating range) |
| Input Signal Logic | ON/OFF discrete signal detection |
| Input Current | Low-current industrial sensing inputs |
| Connector Type | M12 circular connectors (rugged field wiring interface) |
| Wiring Style | Pre-wired / field-connector based |
| Isolation | Channel-to-system isolation supported |
| Diagnostic Features | Channel status indication and fault detection |
| Response Time | Fast switching input detection (ms-level) |
| Backplane Interface | POINT I/O system backplane integration |
| Mounting Type | DIN rail mounting |
| Dimensions (W × H × D) | Approx. 30 × 56 × 75 mm |
| Weight | Approx. 80–150 g |
| Operating Temperature | -20°C to +55°C (industrial grade) |
| Enclosure Rating | Typically IP20 (system dependent enclosure) |
| Application Area | Industrial automation, machine input monitoring, sensor signal acquisition, harsh environment wiring systems |
FAQ
What is the main function of the 1738-IB8M12 module?
It is used to receive and monitor 8-channel 24V DC digital input signals from field devices using M12 connectors.
What does M12 mean in this module?
M12 refers to the circular industrial connector type used for robust, sealed field wiring connections.
How many input channels does it support?
It supports 8 independent DC digital input channels.
What type of signals can it read?
It reads standard industrial 24V DC ON/OFF digital signals from sensors and switches.
Is it suitable for harsh environments?
Yes, the M12 connector design improves resistance to vibration, dust, and moisture in industrial environments.
Does it require external power?
Yes, it uses 24V DC field power supplied through the system architecture.
How is it integrated into a control system?
It connects to a POINT I/O backplane and communicates through a compatible network adapter module.
Where is the 1738-IB8M12 commonly used?
It is widely used in factory automation, packaging systems, and machine input monitoring applications where rugged field connections are required.
Allen Bradley 1738-IB8M12 Industrial Equipment is in stock. Please contact us for a quick quote and competitive pricing.
