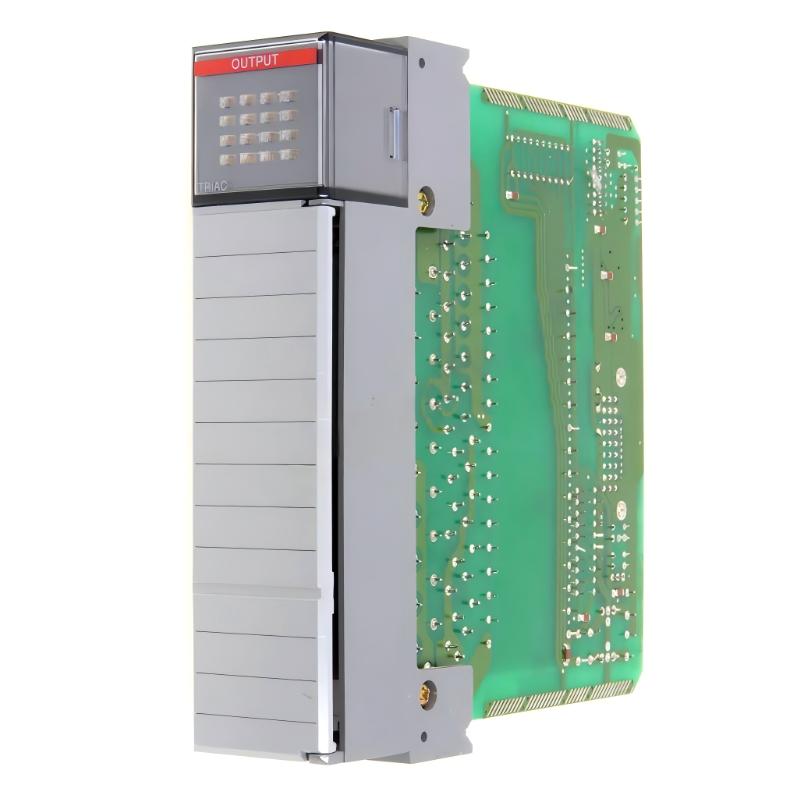

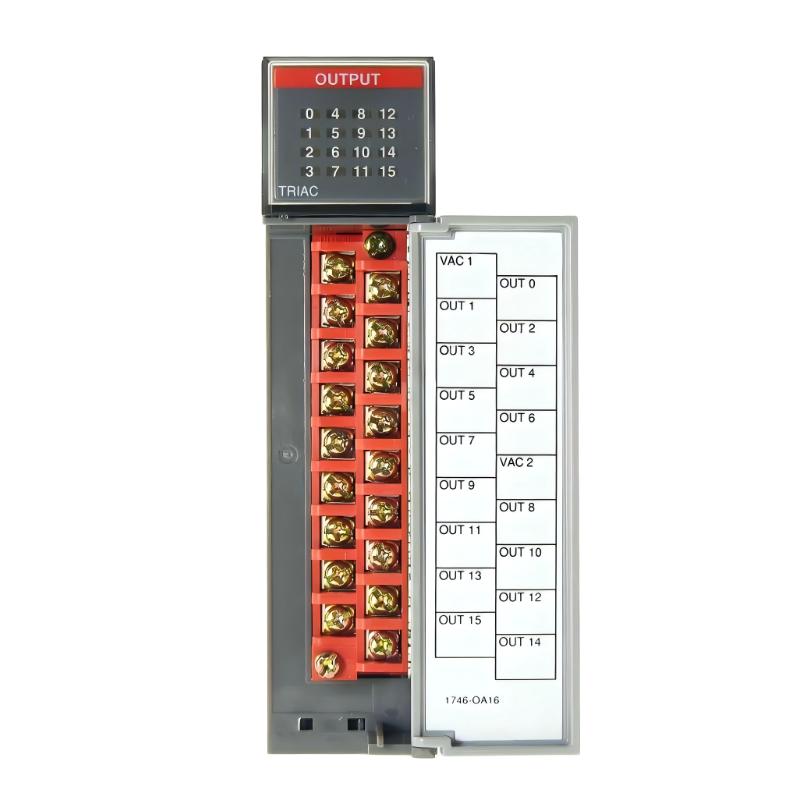

Allen Bradley 1746-OA16 Industrial Equipment
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 1746-OA16 |
| Product Type | Industrial Equipment |
| Device Category | SLC 500 AC Digital Output Module |
| System Compatibility | Allen-Bradley SLC 500 series |
| Output Channels | 16-point AC digital outputs |
| Output Voltage Range | 85–132V AC (nominal 120V AC) |
| Output Frequency | 47–63 Hz |
| Output Type | Triac (solid-state AC output) |
| Output Current | Approx. 0.5 A per channel (typical), with module total limits |
| Load Type | AC loads (resistive and some inductive loads) |
| Switching Method | Solid-state switching (triac-based) |
| Isolation | Channel-to-backplane isolation supported |
| Surge Protection | Built-in protection for AC switching applications |
| Backplane Interface | SLC 500 backplane integration |
| Power Supply | Powered via SLC chassis backplane |
| Mounting Type | Installed in SLC 500 chassis slot |
| Dimensions (W × H × D) | Standard SLC module form factor (~140 × 35 × 145 mm) |
| Weight | Approx. 0.4–0.6 kg |
| Operating Temperature | 0°C to +60°C (industrial grade) |
| Storage Temperature | -40°C to +85°C |
| Status Indicators | LED indicators per output channel |
| Application Area | Industrial automation, AC load control, lighting, relays, solenoids, and machine control systems |
FAQ
What is the main function of the 1746-OA16 module?
It is used to control AC loads through 16 digital output channels in industrial automation systems.
What voltage does it support?
It supports 85–132V AC, typically used with 120V AC control circuits.
How many output channels does it have?
It provides 16 independent AC output channels.
What type of output technology does it use?
It uses triac-based solid-state outputs for switching AC loads.
What kind of loads can it control?
It is suitable for AC loads such as lamps, relays, contactors, and solenoids.
Is it suitable for DC loads?
No, it is designed specifically for AC output applications.
How is it installed?
It is installed in an SLC 500 chassis and communicates via the backplane.
Where is the 1746-OA16 commonly used?
It is widely used in industrial automation systems for controlling AC-powered devices and equipment.
