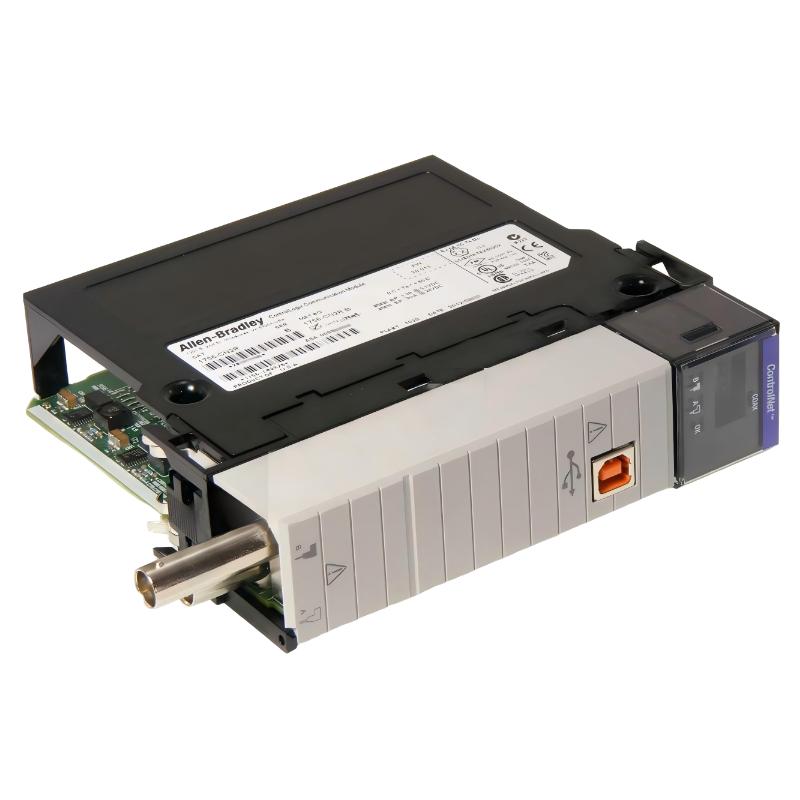

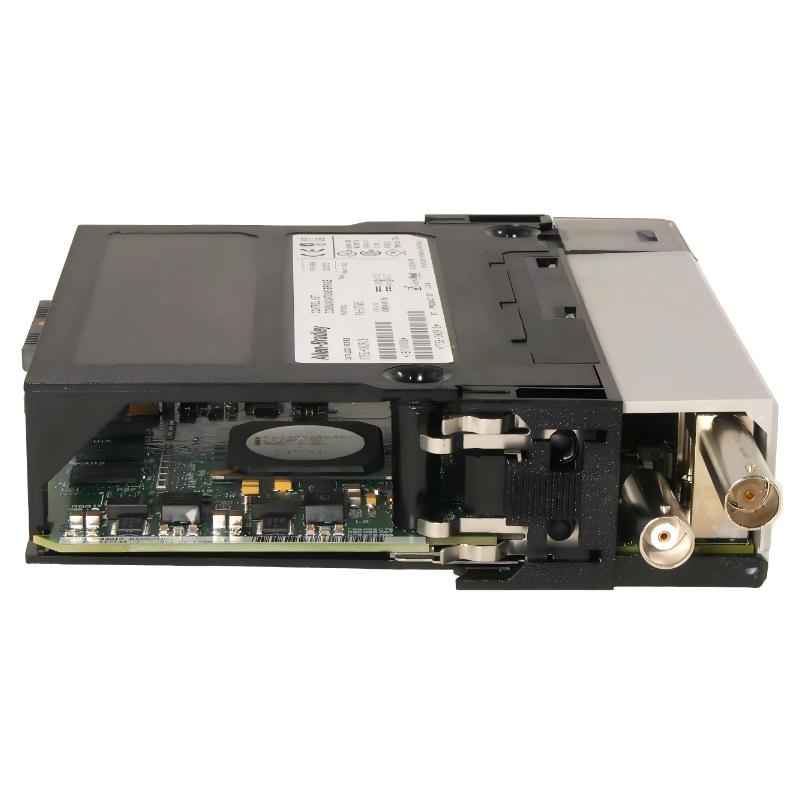

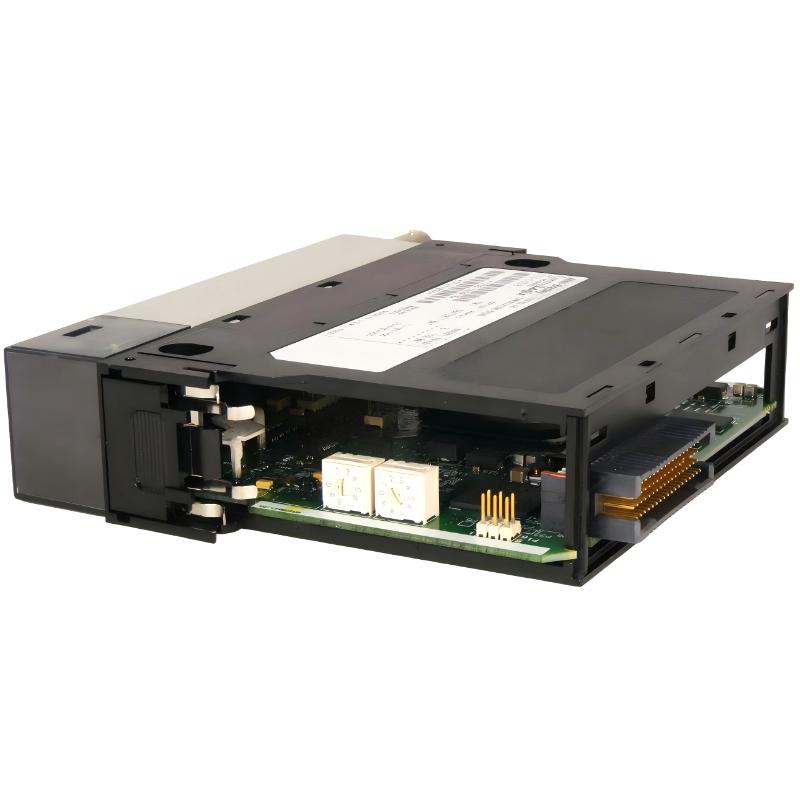

Allen Bradley 1756-CN2RK Industrial Equipment
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Industrial Equipment |
| Model | 1756-CN2RK |
| Category | ControlLogix Communication Module |
| System Compatibility | Allen-Bradley ControlLogix platform |
| Function | Redundant ControlNet communication interface module |
| Communication Protocol | ControlNet |
| Network Ports | 2 × ControlNet BNC connectors (dual media A/B) |
| Data Transfer Rate | 5 Mbps |
| Redundancy | Yes (dual-channel redundant architecture) |
| Supported Nodes | Up to 99 nodes (network dependent) |
| Logix Connections | Up to 128 connections |
| Communication Types | Scheduled I/O, unscheduled messaging, peer-to-peer |
| Backplane Power | Supplied via ControlLogix chassis |
| Current Draw | Approx. 1300 mA @ 5.1 V DC |
| Power Dissipation | Approx. 6.7 W |
| Isolation | 30 V continuous isolation (network to backplane) |
| Mounting Type | ControlLogix chassis slot (1-slot width) |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5–95% non-condensing |
| Dimensions (W × H × D) | Approx. 145 mm × 140 mm × 140 mm |
| Weight | Approx. 0.29 kg |
| Housing Material | Industrial-grade metal enclosure |
| Certifications | CE / UL compliant |
FAQ
What is the 1756-CN2RK used for?
It is a redundant ControlNet communication module used in ControlLogix systems to provide high-reliability industrial network communication.
What does the “RK” mean in the model number?
“RK” indicates a redundant ControlNet module with conformal coating for enhanced environmental protection.
How is it different from CN2R?
Both support redundancy, but CN2RK typically includes conformal coating and enhanced ruggedization for harsher industrial environments.
What communication speed does it support?
It operates at the standard ControlNet speed of 5 Mbps.
How many devices can it support?
It supports up to 99 nodes depending on network configuration.
Does it require external power?
No. It is powered through the ControlLogix chassis backplane.
What industries use this module?
It is used in high-reliability industrial environments such as oil & gas, power generation, and heavy manufacturing.
Is it still used in modern systems?
It is mainly deployed in legacy ControlNet-based systems, while newer architectures use Ethernet/IP-based communication.
Allen Bradley 1756-CN2RK Industrial Equipment is in stock. Please contact us for a quick quote and competitive pricing.
