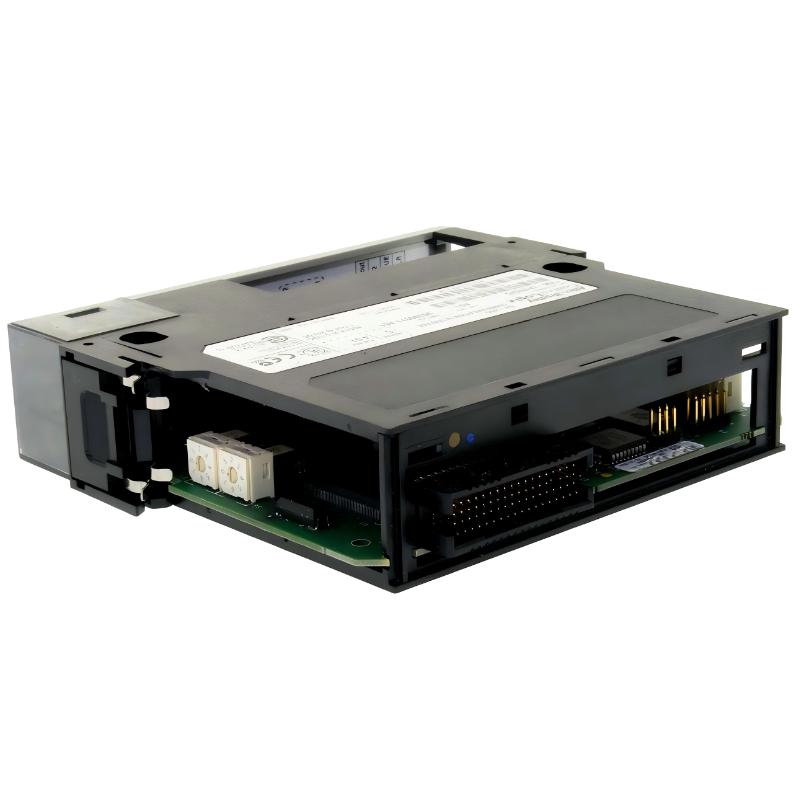

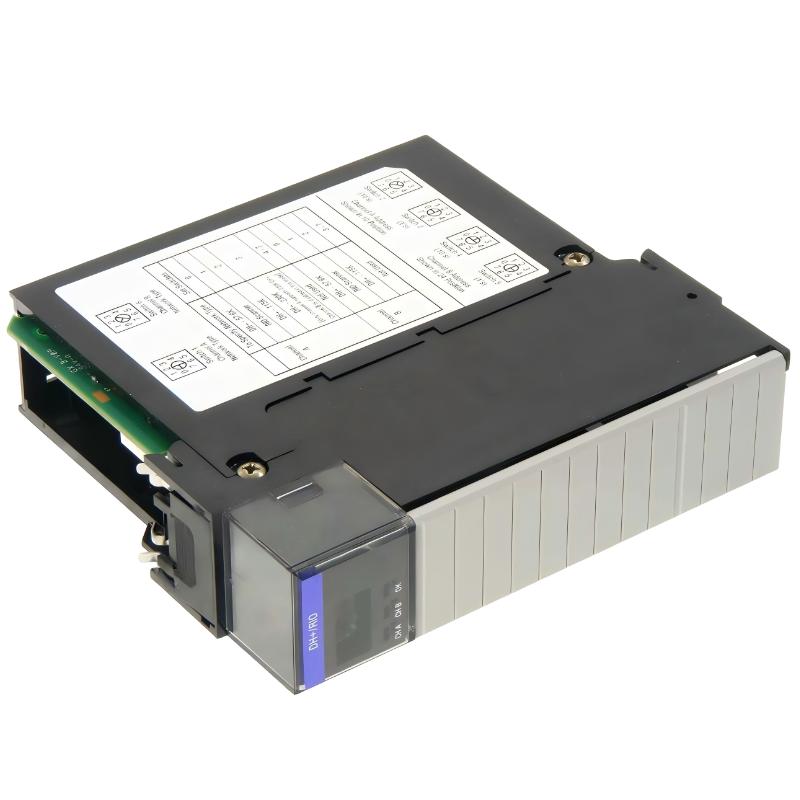

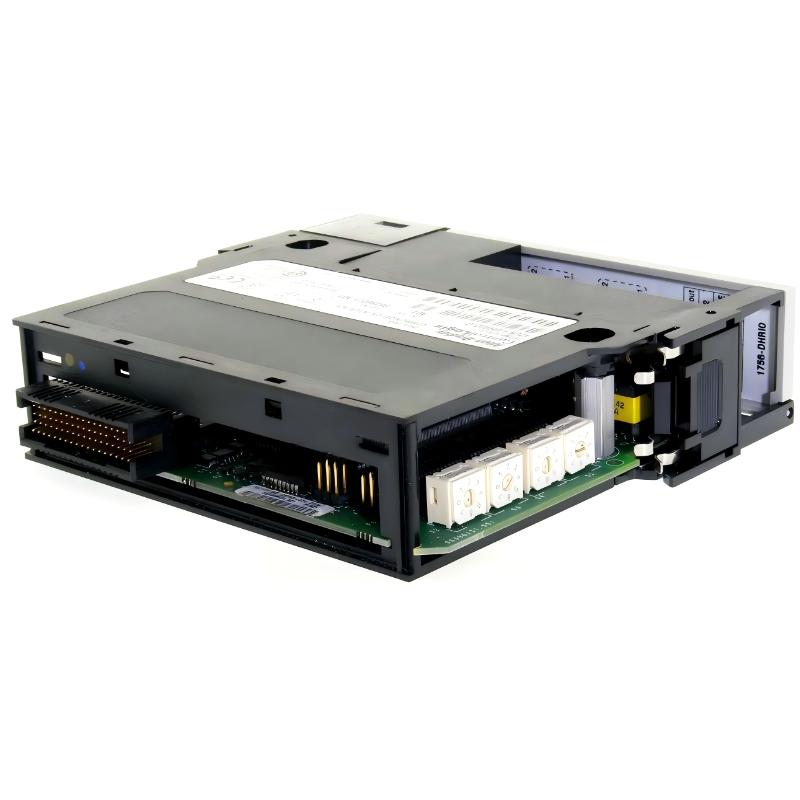

Allen Bradley 1756-DHRIO/C Industrial Equipment
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Industrial Equipment |
| Model | 1756-DHRIO/C |
| Category | ControlLogix Communication Module |
| System Compatibility | ControlLogix platform |
| Function | Provides DH+ and Remote I/O (RIO) network communication |
| Communication Protocols | Data Highway Plus (DH+), Remote I/O (RIO) |
| Network Ports | 2 × DH+/RIO channels (Channel A and Channel B) |
| Channel Configuration | Independently configurable (DH+ or RIO per channel) |
| Data Transfer Rate (DH+) | 57.6 kbps / 115.2 kbps / 230.4 kbps |
| RIO Data Rate | 57.6 kbps / 115.2 kbps / 230.4 kbps |
| Max Nodes (DH+) | Up to 32 nodes per channel |
| RIO Capacity | Multiple racks and adapters (system dependent) |
| Communication Type | Peer-to-peer messaging and I/O scanning |
| Backplane Power | Supplied via ControlLogix chassis |
| Current Draw | Approx. 850 mA @ 5.1 V DC |
| Power Dissipation | Approx. 4.3 W |
| Isolation | Electrical isolation between network and backplane |
| Mounting Type | ControlLogix chassis slot |
| Series | Series C (hardware revision) |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5–95% non-condensing |
| Dimensions (W × H × D) | Approx. 145 mm × 140 mm × 140 mm |
| Weight | Approx. 0.32 kg |
| Housing Material | Industrial-grade enclosure |
| Certifications | CE / UL compliant |
| Lifecycle Status | Active / legacy support |
FAQ
What is the 1756-DHRIO/C used for?
It is a communication module that enables ControlLogix systems to interface with DH+ and Remote I/O networks.
What does the “/C” indicate?
It refers to the Series C hardware revision, which includes incremental updates or improvements over earlier versions.
Can both channels be configured independently?
Yes. Each channel can be set to operate as either DH+ or Remote I/O.
What communication speeds are supported?
It supports 57.6 kbps, 115.2 kbps, and 230.4 kbps for both DH+ and RIO.
How many nodes can it support?
It supports up to 32 nodes per DH+ channel, with RIO capacity depending on system configuration.
Does it require external power?
No. It is powered through the ControlLogix chassis backplane.
Is it suitable for new system designs?
It is mainly used for integrating legacy systems rather than new installations.
What applications is it commonly used in?
It is widely used in system upgrades, migrations, and environments where legacy DH+ or RIO networks must be maintained.
