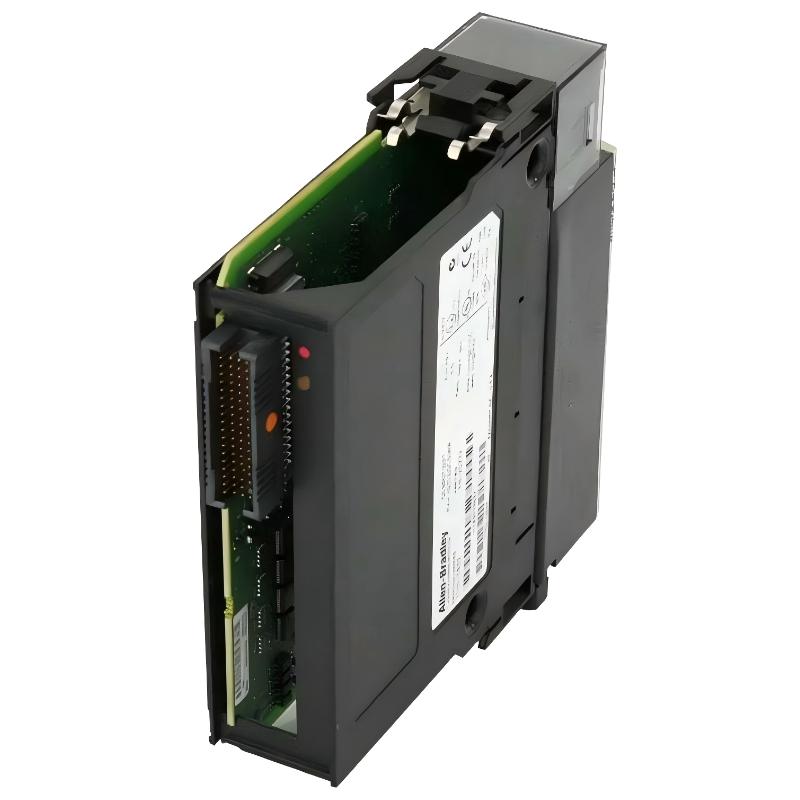

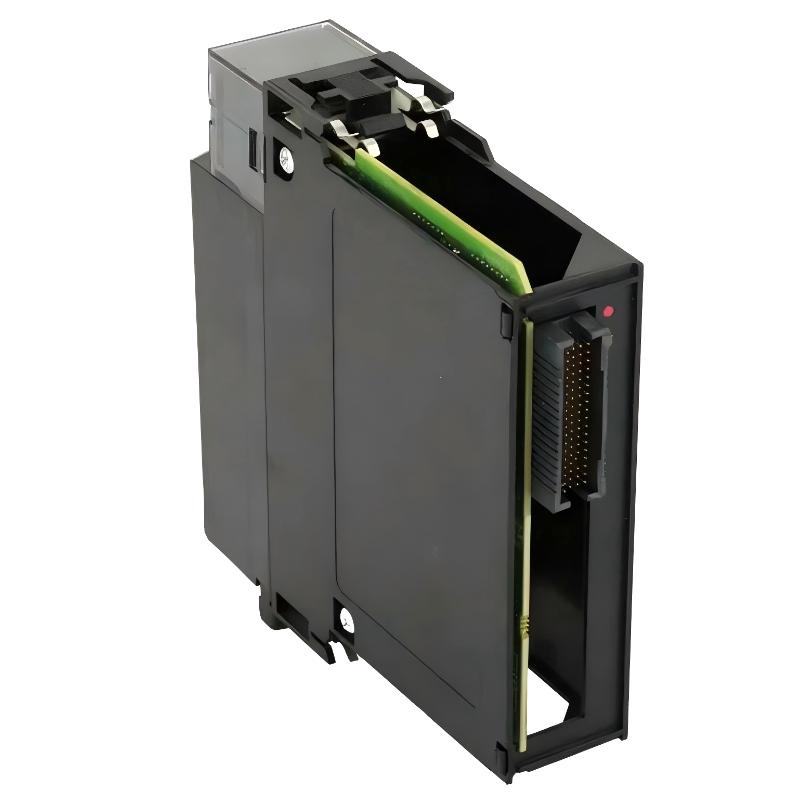

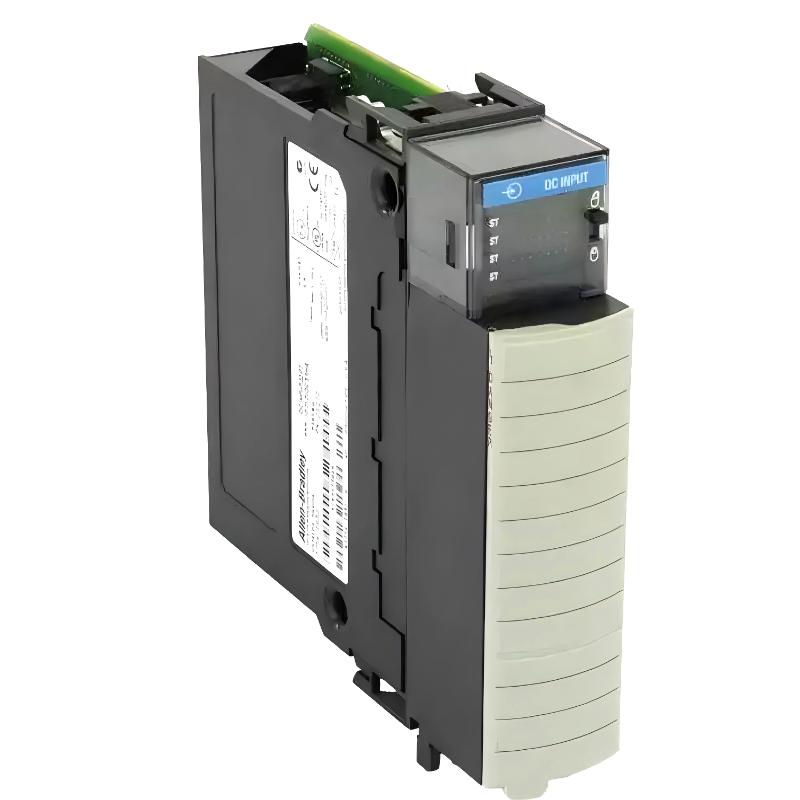

Allen Bradley 1756-IB32 Industrial Equipment
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Industrial Equipment |
| Model | 1756-IB32 |
| Category | ControlLogix Digital Input Module |
| System Compatibility | ControlLogix platform |
| Function | Receives DC digital input signals from field devices |
| Number of Inputs | 32 channels |
| Input Voltage Range | 10–31.2V DC |
| Nominal Input Voltage | 24V DC |
| Input Type | Sinking (DC input) |
| Input Current | Approx. 2–5 mA per channel |
| Input Delay | Configurable (typical 1–10 ms) |
| Isolation | Group-to-backplane isolation |
| Input Grouping | 2 groups of 16 channels |
| Communication | Backplane communication with controller |
| Status Indicators | LED per channel |
| Backplane Power | Supplied via ControlLogix chassis |
| Current Draw | Approx. 300–350 mA @ 5.1 V DC |
| Power Dissipation | Approx. 5–6 W |
| Wiring | Requires removable terminal block (RTB) |
| Mounting Type | ControlLogix chassis slot |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5–95% non-condensing |
| Dimensions (W × H × D) | Approx. 145 mm × 140 mm × 140 mm |
| Weight | Approx. 0.33 kg |
| Housing Material | Industrial-grade enclosure |
| Certifications | CE / UL compliant |
FAQ
What is the 1756-IB32 used for?
It is a 32-point DC digital input module used to monitor signals from field devices in ControlLogix systems.
What voltage does it support?
It operates on 24V DC systems, with a working range of approximately 10–31.2V DC.
How many inputs are available?
It provides 32 digital input channels, grouped into two sets of 16.
What type of input configuration is used?
It uses sinking inputs, typically paired with sourcing field devices.
Is channel isolation provided?
It provides group-level isolation rather than individual channel isolation.
Does it support AC signals?
No. It is designed exclusively for DC input signals.
How is the module powered?
It is powered through the ControlLogix chassis backplane, while field inputs require external DC supply.
What applications is it commonly used in?
It is used in industrial automation systems requiring high-density digital input monitoring, such as production lines and machine control systems.
Allen Bradley 1756-IB32 Industrial Equipment is in stock. Please contact us for a quick quote and competitive pricing.
