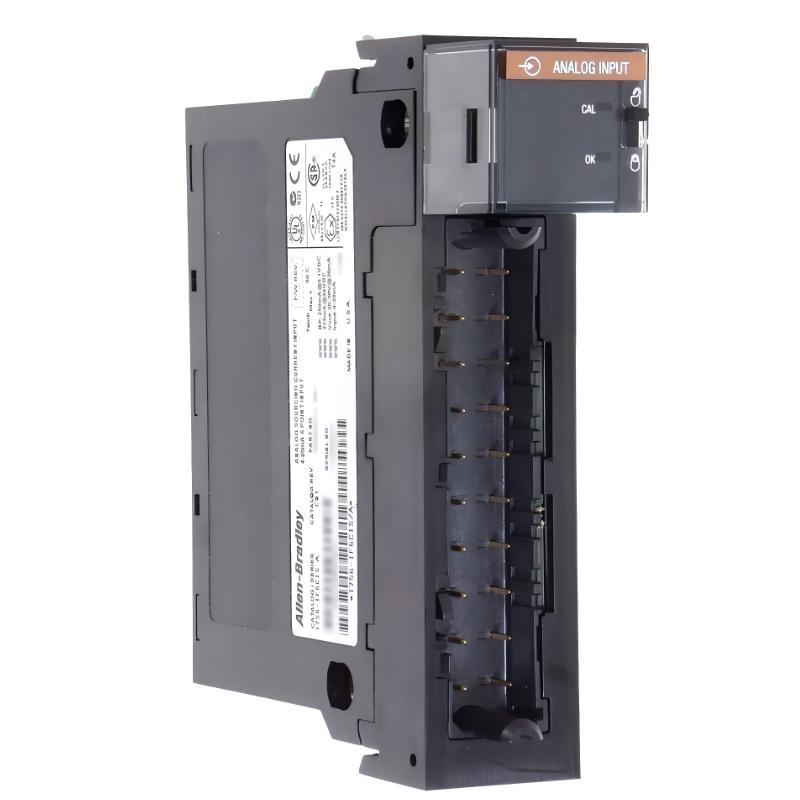

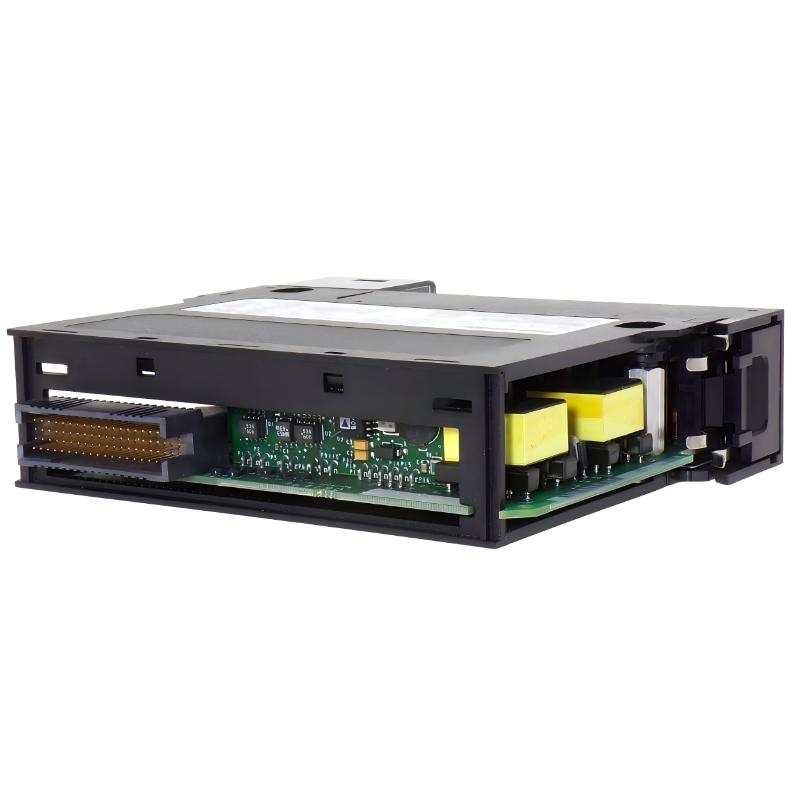

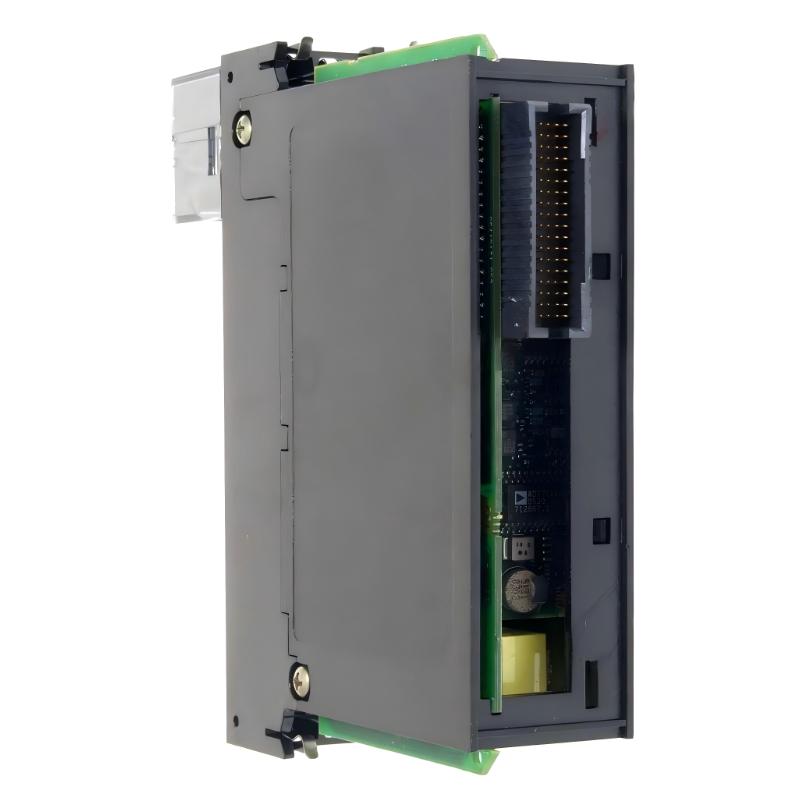

Allen Bradley 1756-IF6CIS Industrial Equipment
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Industrial Equipment |
| Model | 1756-IF6CIS |
| Category | ControlLogix Isolated Analog Input Module |
| System Compatibility | ControlLogix platform |
| Function | Measures and sources current loop analog signals |
| Number of Inputs | 6 channels |
| Input Signal Type | 0–20 mA / up to 21 mA current |
| Input Type | Current sourcing (internal loop power) |
| Resolution | 16-bit |
| Conversion Method | Sigma-Delta |
| Input Impedance | Approx. 215 Ω |
| Internal Loop Power | Yes (supports powering 2-wire transmitters) |
| Isolation | Channel-to-channel and channel-to-backplane isolation (250V) |
| Data Format | Integer and IEEE 32-bit floating point |
| Diagnostics | Over-range, under-range, open-circuit detection |
| Backplane Power | Supplied via ControlLogix chassis |
| Current Draw | Approx. 250 mA @ 5.1 V DC; 275 mA @ 24 V DC |
| Power Dissipation | Approx. 5.1 W |
| Wiring | Requires removable terminal block (RTB) |
| Mounting Type | ControlLogix chassis slot |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5–95% non-condensing |
| Dimensions (W × H × D) | Approx. 34.6 mm × 144.5 mm × 146.9 mm |
| Weight | Approx. 0.36 kg |
| Housing Material | Industrial-grade open-style module |
| Lifecycle Status | Discontinued (legacy module) |
FAQ
What is the 1756-IF6CIS used for?
It is a 6-channel analog input module used for measuring current loop signals in ControlLogix systems.
What is its key advantage?
It can supply loop power internally, allowing direct connection to 2-wire current transmitters.
What input range does it support?
It supports 0–20 mA signals, with a maximum input range up to approximately 21 mA.
How many channels does it have?
It provides 6 isolated analog input channels.
What resolution does it offer?
It provides 16-bit resolution for precise signal measurement.
Does it require external power for sensors?
Not necessarily. It includes internal current sourcing for loop-powered devices.
Is the module isolated?
Yes. It features channel-to-channel and channel-to-backplane isolation.
Where is it commonly used?
It is used in process automation systems for measuring analog variables such as pressure, flow, and level in industrial environments.
Allen Bradley 1756-IF6CIS Industrial Equipment is in stock. Please contact us for a quick quote and competitive pricing.
