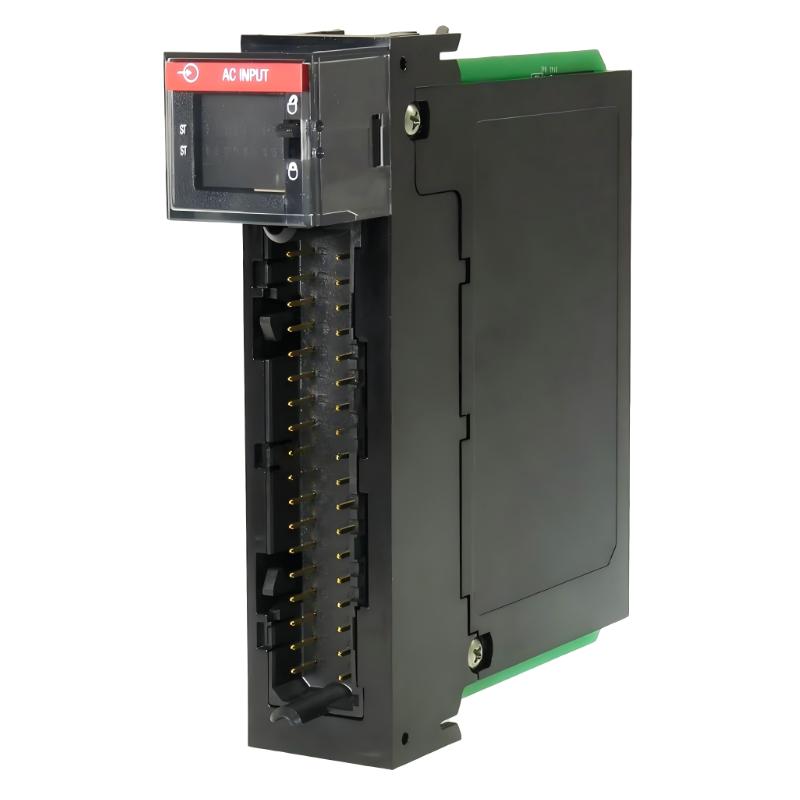

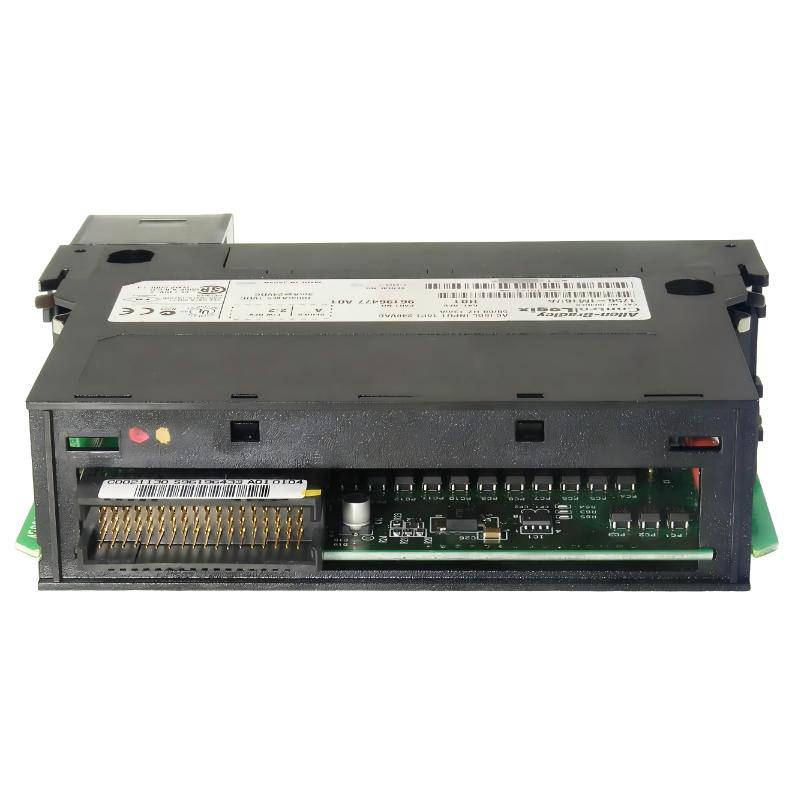

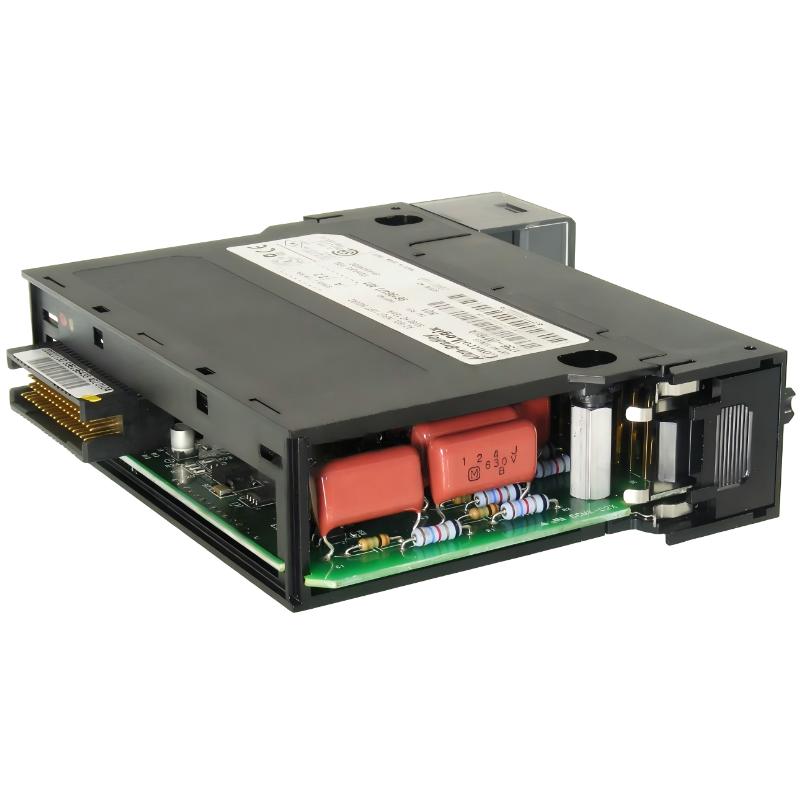

Allen Bradley 1756-IM16I Industrial Equipment
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Industrial Equipment |
| Model | 1756-IM16I |
| Category | ControlLogix Isolated AC Digital Input Module |
| System Compatibility | ControlLogix platform |
| Function | Receives AC digital input signals with per-point isolation |
| Number of Inputs | 16 channels |
| Input Voltage Range | 159–265 V AC |
| Nominal Input Voltage | 240 V AC |
| Input Frequency | 47–63 Hz |
| Input Type | AC digital input (isolated per point) |
| Input Current | Approx. 5–13 mA per channel (depending on voltage) |
| Input Delay Time | Configurable (typically ~9 ms or ~18 ms filter) |
| Isolation | Individual point-to-point and channel-to-backplane isolation (250 V continuous) |
| Channel Configuration | 16 individually isolated inputs |
| Data Format | Digital status bits (ON/OFF) |
| Status Indicators | LED per channel + module status LED |
| Backplane Power | Supplied via ControlLogix chassis |
| Current Draw | Approx. 100–150 mA @ 5.1 V DC |
| Power Dissipation | Approx. 5–6 W |
| Wiring Type | Removable terminal block (36-pin RTB required) |
| Mounting Type | ControlLogix chassis slot |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5–95% non-condensing |
| Dimensions (W × H × D) | Approx. 145 mm × 140 mm × 140 mm |
| Weight | Approx. 0.28–0.30 kg |
| Housing Material | Industrial-grade open-style module |
| Lifecycle Status | Active / legacy industrial module |
FAQ
What is the 1756-IM16I used for?
It is a 16-point isolated AC digital input module used in ControlLogix systems to read high-voltage AC field signals.
What makes it “isolated”?
Each input channel is individually isolated, improving electrical noise immunity and protecting against field wiring faults.
What voltage does it support?
It supports 159–265 V AC, typically used for 120/240 VAC industrial control circuits.
How many inputs does it have?
It provides 16 individually isolated AC input channels.
What is its main application?
It is used for monitoring AC devices such as relays, contactors, limit switches, and control signals in industrial systems.
Does it support DC signals?
No. It is designed specifically for AC input signals only.
How is it powered?
It is powered via the ControlLogix chassis backplane, while field inputs use external AC voltage.
Why use isolated inputs instead of standard ones?
Isolation improves safety, reduces noise issues, and allows each input to operate independently in electrically noisy environments.
Allen Bradley 1756-IM16I Industrial Equipment is in stock. Please contact us for a quick quote and competitive pricing.
