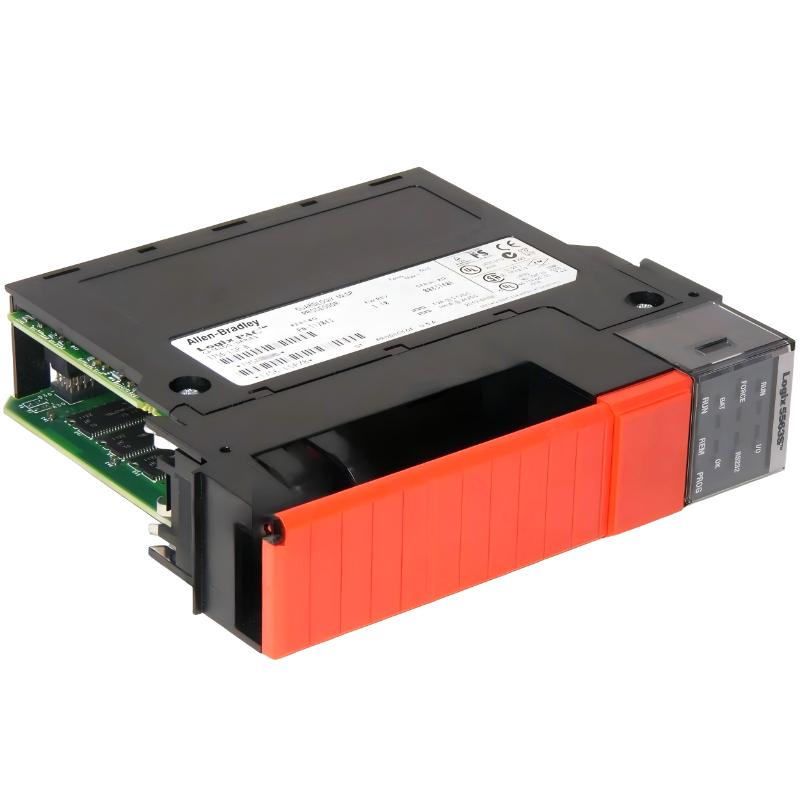

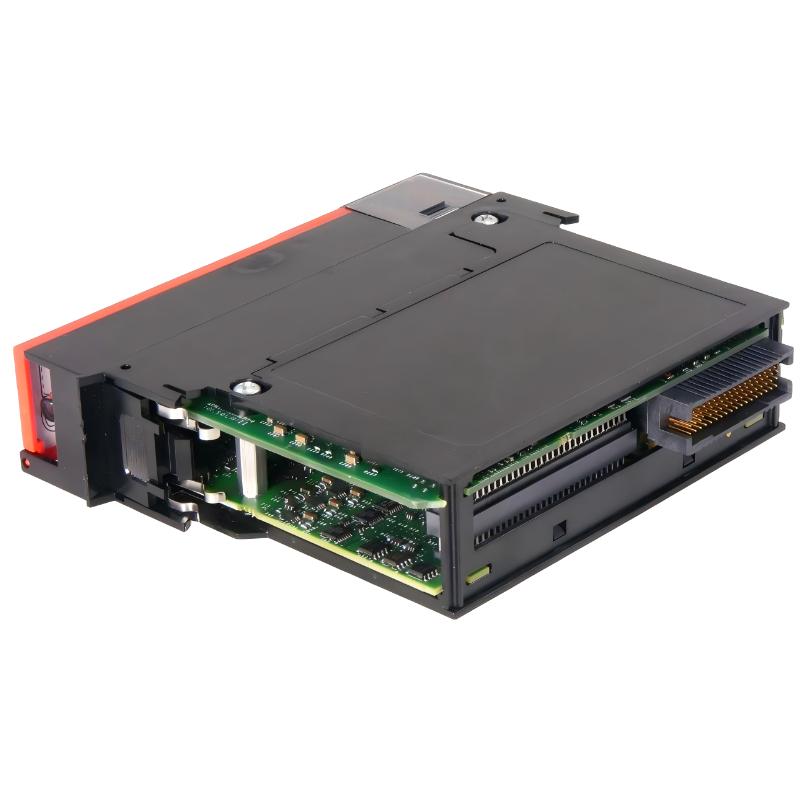

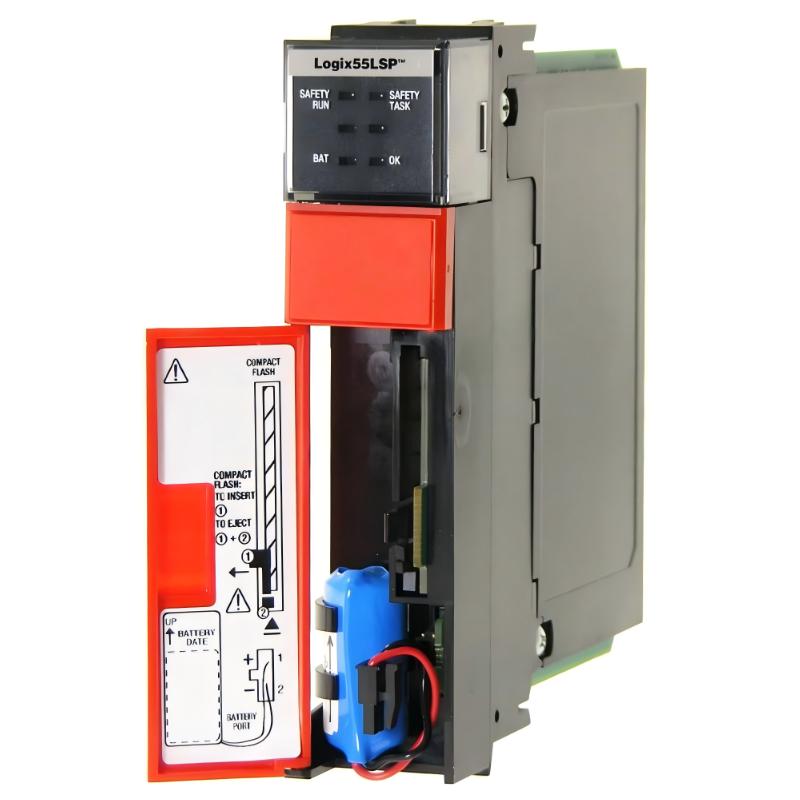

Allen Bradley 1756-LSP Industrial Equipment
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 1756-LSP |
| Product Type | Safety Partner Module |
| Category | ControlLogix GuardLogix Safety Partner |
| System Compatibility | ControlLogix / GuardLogix chassis |
| Function | Provides redundant safety processing and validation for GuardLogix safety controllers |
| Primary Controller Pairing | Works with GuardLogix L6xS / L7xS safety controllers |
| Processor Type | Safety partner (no standalone CPU function) |
| User Memory | No independent memory (mirrors paired controller safety memory) |
| Programming Software | Studio 5000 Logix Designer (GuardLogix systems) |
| Communication Ports | None |
| Backplane Interface | ControlLogix backplane |
| Safety Architecture | 1oo2 redundant safety execution model |
| Safety Integrity Level | SIL 3 capable (system dependent) |
| Performance Level | Cat. 3 / Cat. 4, PLe capable |
| Redundancy Role | Cross-checks and validates safety logic execution |
| Motion Control | Not applicable |
| Nonvolatile Memory | Managed by primary safety controller |
| Installation Requirement | Must be installed adjacent to paired safety controller in same chassis |
| Power Supply | Via ControlLogix chassis |
| Current Draw | Approx. 800–900 mA @ 5.1 V DC |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5–95% non-condensing |
| Module Width | 1 slot |
| Dimensions (H × W × D) | Approx. 145 mm × 35 mm × 140 mm |
| Weight | Approx. 0.3–0.35 kg |
| Lifecycle Status | Legacy / Discontinued GuardLogix safety partner |
FAQ
What is the 1756-LSP used for?
It is a safety partner module used in GuardLogix systems to provide redundant execution and validation of safety logic.
Can it operate independently?
No. It must always be paired with a GuardLogix safety controller.
What is its main role?
It performs real-time cross-checking of safety program execution to ensure system integrity.
Does it run control logic or programs?
No. It does not execute user logic independently.
What safety level does it support?
It supports up to SIL 3 / Cat. 4 safety systems (depending on system design).
Where is it installed?
It must be installed in the same ControlLogix chassis, typically adjacent to its paired safety controller.
Is it still used today?
It is still found in many existing installations but has been largely replaced by integrated GuardLogix 5580 safety controllers.
