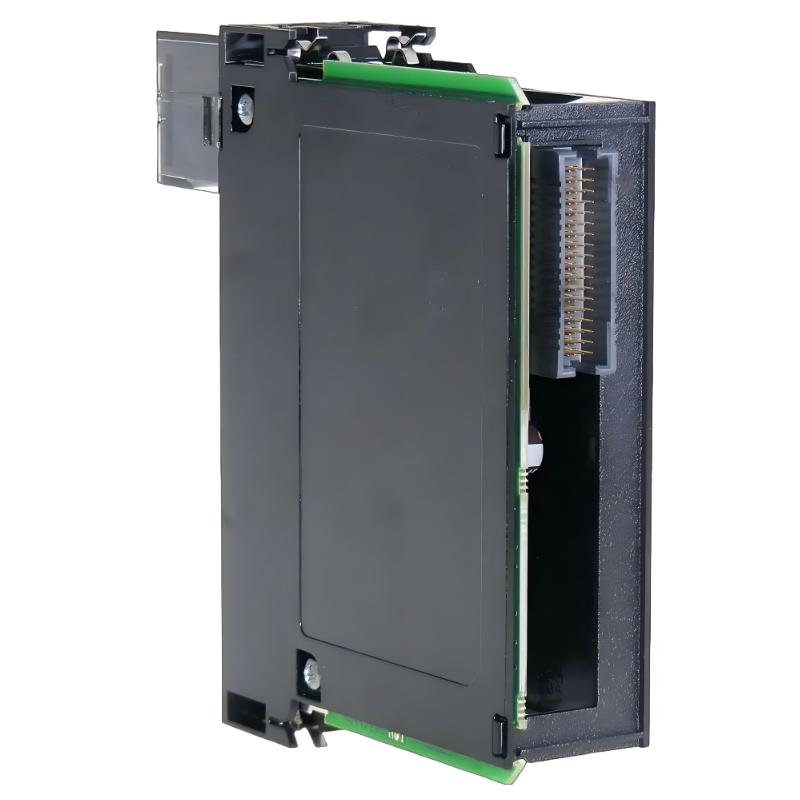

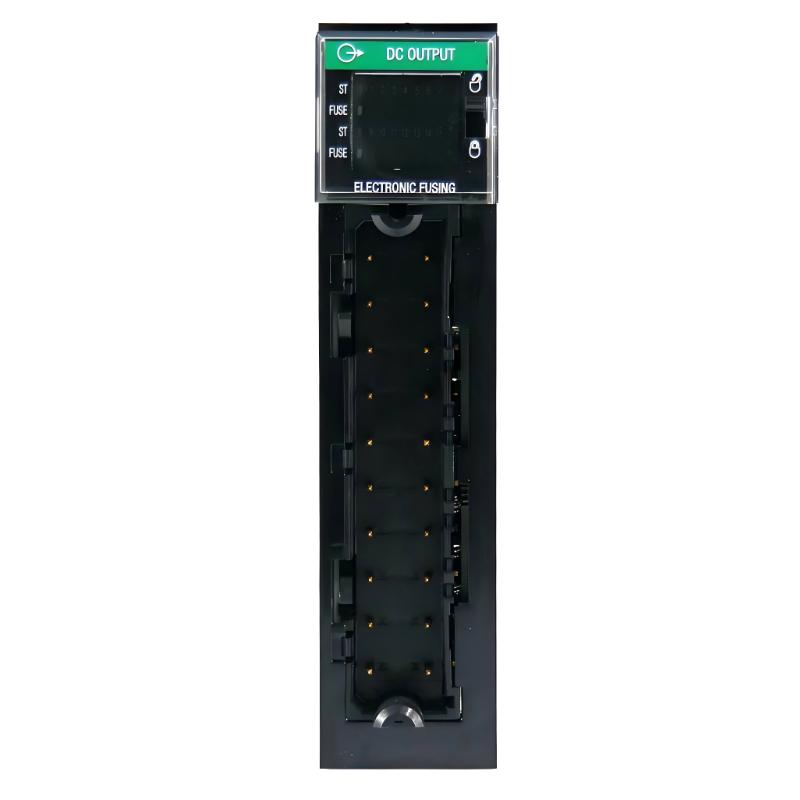

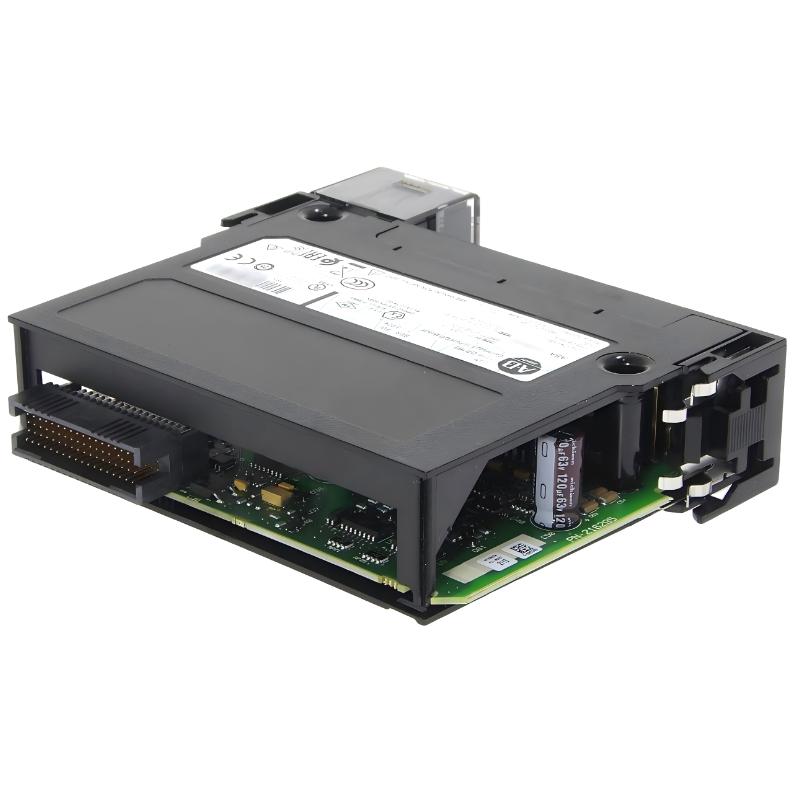

Allen Bradley 1756-OB16E Industrial Equipment
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 1756-OB16E |
| Product Type | Digital DC Output Module |
| Category | ControlLogix Diagnostic I/O Module |
| System Compatibility | ControlLogix chassis |
| Function | Provides 16-point DC output control with enhanced diagnostics |
| Output Channels | 16 points |
| Output Type | DC (sourcing, transistor output) |
| Voltage Range | 10–31.2 VDC (nominal 24 VDC) |
| Current Rating | 1.0 A per point (max), module total limited |
| Output Grouping | 2 groups of 8 points |
| Diagnostics | Per-channel diagnostics (open load, short circuit, fault reporting) |
| Backplane Interface | ControlLogix backplane |
| On-State Voltage Drop | < 1 V DC |
| Off-State Leakage | < 1 mA |
| Turn-On Time | ~0.1 ms |
| Turn-Off Time | ~1 ms |
| Isolation Voltage | 250 V continuous (channel-to-backplane) |
| Protection | Electronic short-circuit and overload protection |
| Wiring | Requires Removable Terminal Block (RTB) |
| RTB Compatibility | 1756-TBCH / 1756-TBS6H |
| Power Consumption | ~5 W |
| Current Draw | ~300–350 mA @ 5.1 VDC |
| Module Width | 1 slot |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5–95% non-condensing |
| Dimensions (H × W × D) | Approx. 145 mm × 35 mm × 140 mm |
| Weight | Approx. 0.3–0.4 kg |
| Lifecycle Status | Active I/O module |
FAQ
What is the 1756-OB16E used for?
It is a 16-point DC output module with enhanced diagnostics for monitoring output status and faults.
What does the “E” mean?
“E” indicates enhanced diagnostics, providing more detailed fault detection and status information.
What type of outputs does it provide?
It provides sourcing (PNP) transistor DC outputs.
How is it different from OB16 and OB16D?
It offers more advanced diagnostic capabilities, improving system monitoring and troubleshooting.
Can it be used for AC loads?
No. It is designed for DC output applications only.
Where is it typically used?
It is used in critical automation systems where detailed diagnostics and reliability are required.
Allen Bradley 1756-OB16E Industrial Equipment is in stock. Please contact us for a quick quote and competitive pricing.
