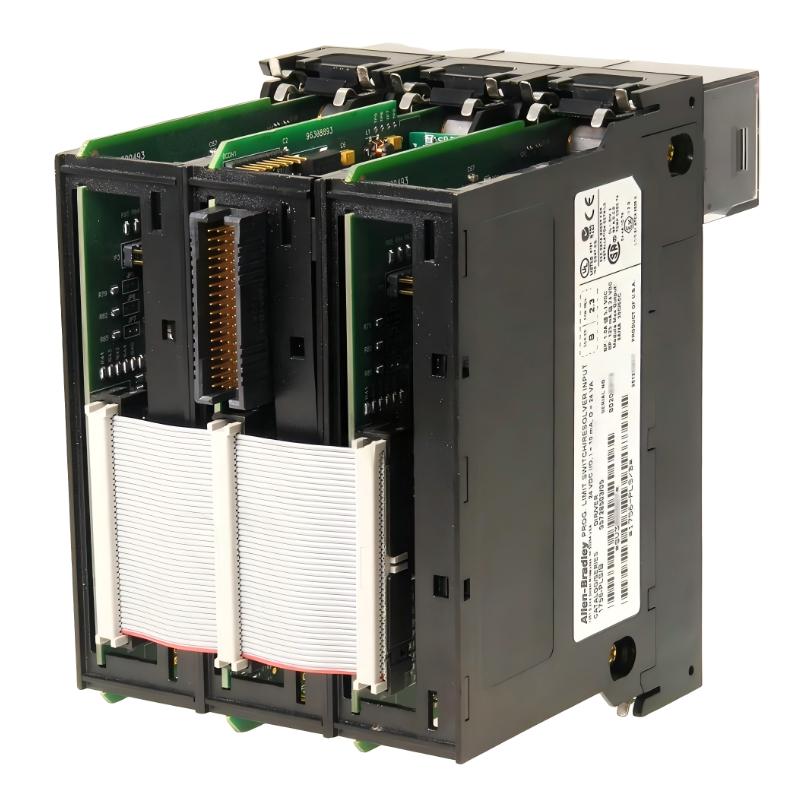

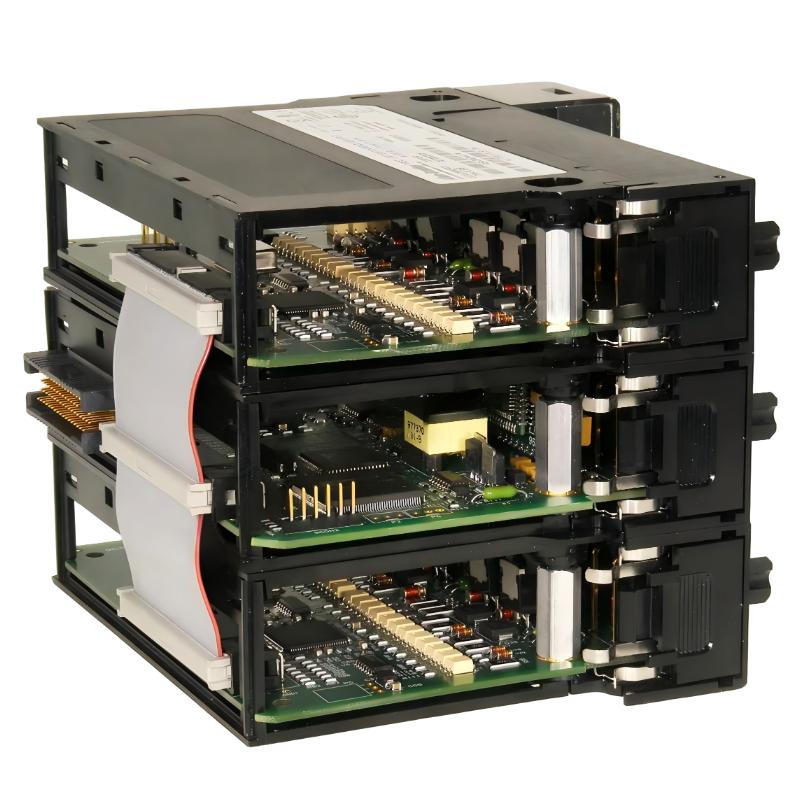

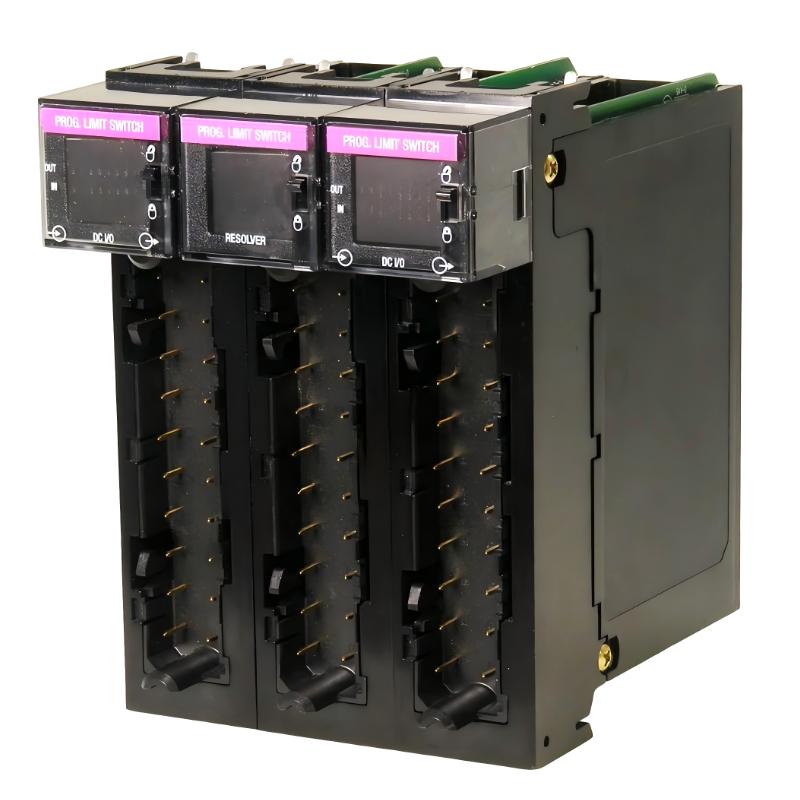

Allen Bradley 1756-PLS Industrial Equipment
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 1756-PLS |
| Product Type | Programmable Limit Switch (PLS) Module |
| Category | ControlLogix Specialty I/O Module |
| System Compatibility | ControlLogix chassis |
| Function | Provides position-based output switching (electronic cam / limit switch control) |
| Input Type | Resolver or high-speed position feedback |
| Output Type | 16 DC outputs (position-triggered) |
| Output Voltage Range | 10–31.2 VDC |
| Output Current | Up to 1 A per output |
| Output Groups | 4 groups of 4 outputs |
| Total Outputs | 16 outputs |
| Operating Principle | Position/event-driven switching (not PLC scan-based) |
| Configuration | Studio 5000 / RSLogix 5000 |
| Backplane Interface | ControlLogix backplane |
| Wiring | Requires RTB or IFM interface modules |
| RTB Compatibility | 1756-TBCH / 1492 IFM modules |
| Power Consumption | ~5 W |
| Isolation | Channel-to-backplane isolation |
| Module Width | 1 slot |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5–95% non-condensing |
| Dimensions (H × W × D) | Approx. 145 × 35 × 140 mm |
| Weight | Approx. 0.3–0.4 kg |
| Lifecycle Status | Specialty / legacy motion module |
FAQ
What is the 1756-PLS used for?
It is used for position-based switching of outputs, acting like an electronic cam or programmable limit switch.
How does it work?
It uses machine position feedback (resolver/encoder) to trigger outputs at predefined positions.
What is its main application?
High-speed and synchronized machines such as:
- Packaging equipment
- Printing machines
- Web processing systems
- Cam-driven automation systems
How is it different from standard digital output modules?
- Standard DO modules rely on PLC logic scan
- 1756-PLS operates based on real-time position events
How many outputs does it have?
It provides 16 DC outputs, grouped into 4 sections.
Does it require PLC logic for switching?
No for real-time switching; logic is mainly used for configuration and parameter setup.
Is it still commonly used?
It is considered a specialized or legacy motion control module, mostly replaced by modern servo/motion systems in new designs.
Allen Bradley 1756-PLS Industrial Equipment is in stock. Please contact us for a quick quote and competitive pricing.
