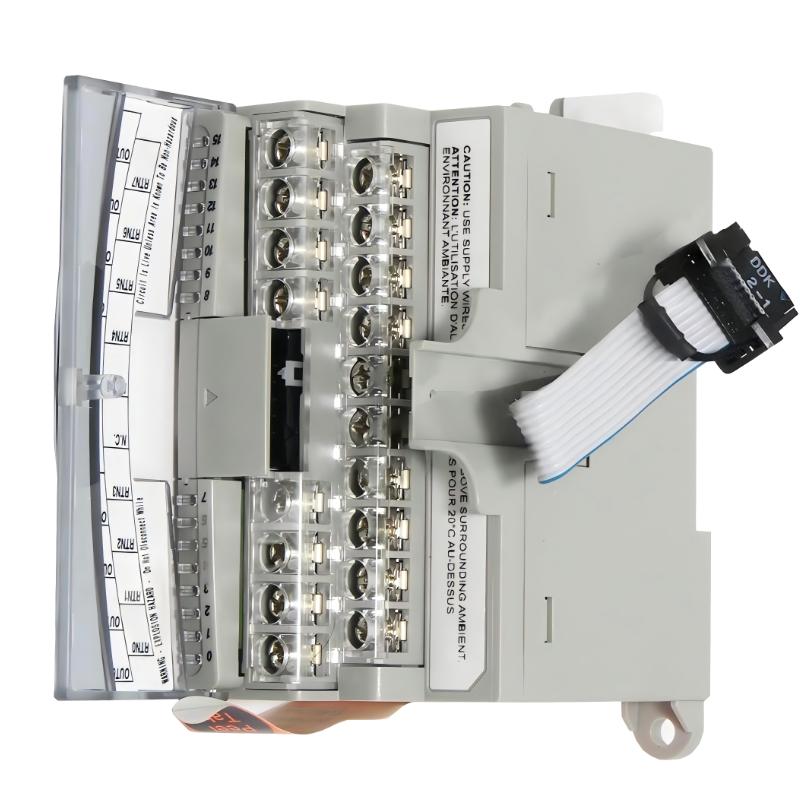

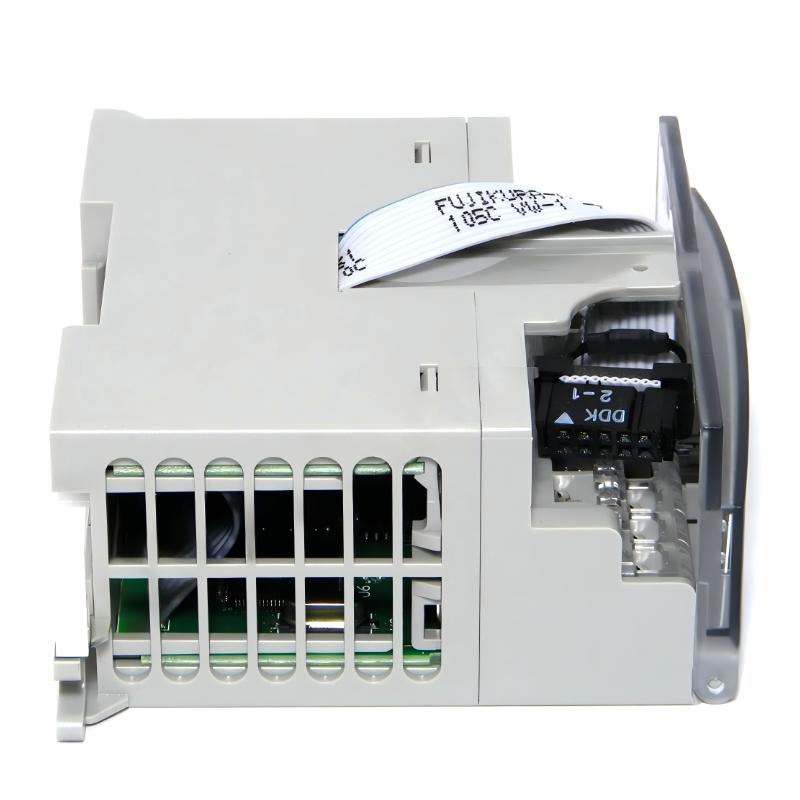

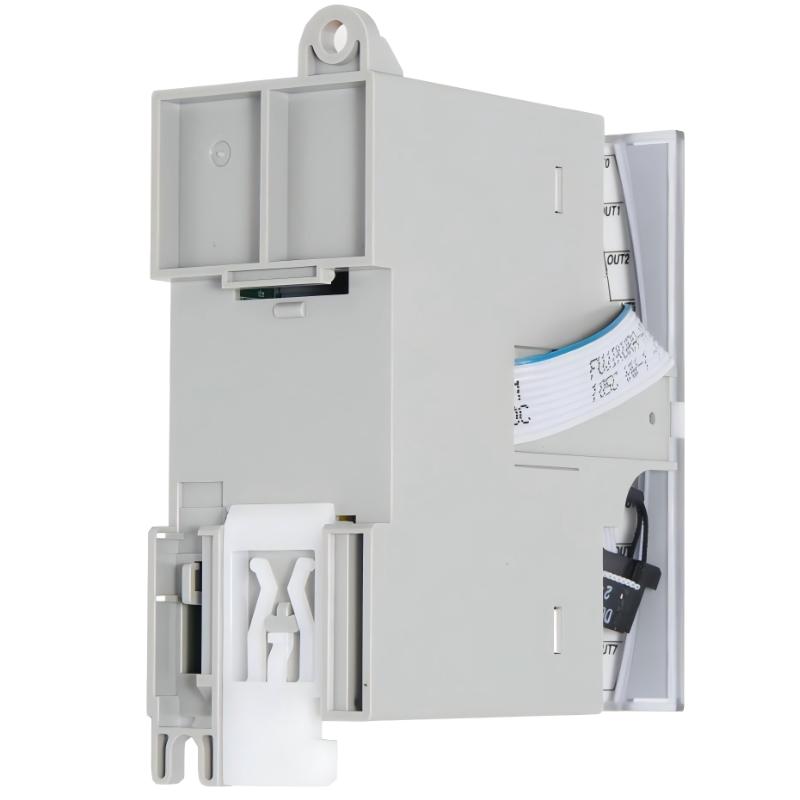

Allen Bradley 1762SC-OF8 Industrial Equipment
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
1762SC-OF8 Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 1762SC-OF8 |
| Product Type | Analog Output Module |
| Category | MicroLogix Expansion I/O (Spectrum Controls) |
| System Compatibility | MicroLogix 1100 / 1200 / 1400 |
| Function | Provides high-density multi-channel analog output control |
| Output Channels | 8 analog outputs |
| Output Types | Voltage / Current (configurable per channel) |
| Voltage Output Range | 0–5 V / 1–5 V / 0–10 V / ±10 V |
| Current Output Range | 0–20 mA / 4–20 mA |
| Resolution | 16-bit high resolution |
| Accuracy | ±20 mV / ±50 µA (typical @ 25°C) |
| Settling Time | < 1 ms to 63% of full scale |
| Output Configuration | Individually programmable per channel |
| Output Range Modes | Unipolar and bipolar selectable |
| Data Formats | Engineering units, raw counts, %, PID |
| Isolation | Channel-to-backplane isolation |
| Backplane Interface | MicroLogix 1762 expansion bus |
| Power Supply | Via PLC backplane |
| Backplane Current | ~30 mA @ 5 VDC; ~195 mA @ 24 VDC |
| Thermal Dissipation | ~4.9 W |
| Wiring | Removable terminal block |
| Mounting | DIN rail / panel mount |
| Configuration | RSLogix 500 / Studio 5000 |
| LED Indicators | Module and channel status |
| Operating Temperature | -20°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5–95% non-condensing |
| Dimensions (H × W × D) | Approx. 90 mm × 40 mm × 87 mm |
| Weight | ~0.9 kg |
| Manufacturer | Spectrum Controls |
| Lifecycle Status | Active / specialty module |
FAQ
What is the 1762SC-OF8 used for?
It is a high-density analog output module used to control devices such as drives, valves, and actuators using voltage or current signals.
How many outputs does it have?
It provides 8 analog output channels, offering higher density than standard modules.
What signal types does it support?
- Voltage: 0–5 V, 1–5 V, 0–10 V, ±10 V
- Current: 0–20 mA, 4–20 mA
Can each channel be configured independently?
Yes, each channel can be individually configured for voltage or current output.
What makes it different from standard modules like 1762-OF4?
- Double the output channels (8 vs 4)
- Higher resolution (16-bit)
- More flexible per-channel configuration
Which PLCs is it compatible with?
MicroLogix 1100, 1200, and 1400 systems.
What software is used?
RSLogix 500 / Studio 5000.
Where is it typically used?
- Process control systems
- Variable frequency drive (VFD) control
- Valve positioning
- Industrial automation requiring multiple analog outputs
Is it a standard Allen-Bradley module?
It is manufactured by Spectrum Controls, a Rockwell Automation partner, specifically for MicroLogix platforms.
Allen Bradley 1762SC-OF8 Industrial Equipment is in stock. Please contact us for a quick quote and competitive pricing.
