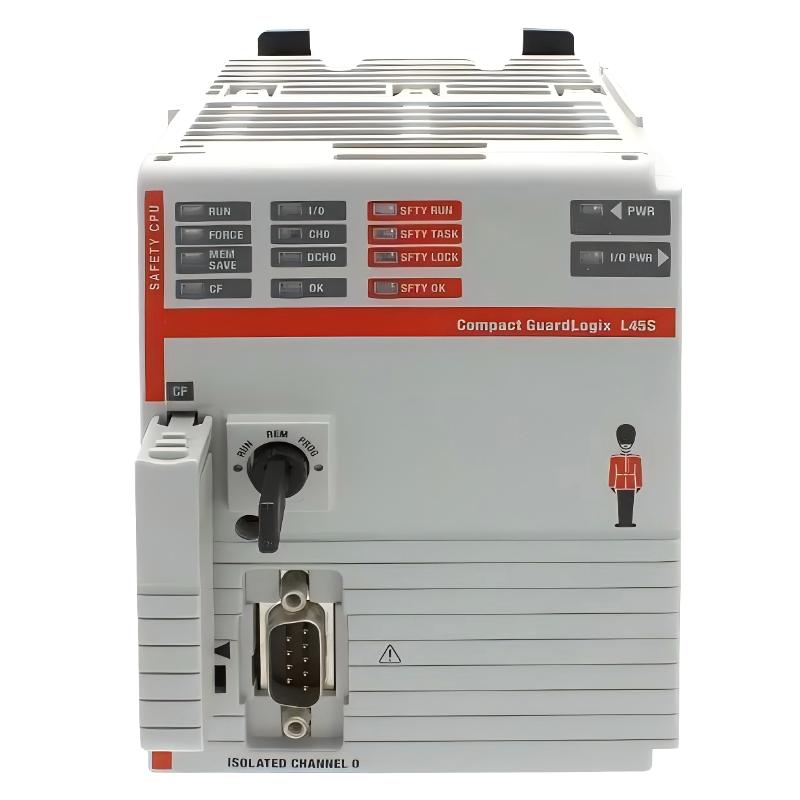

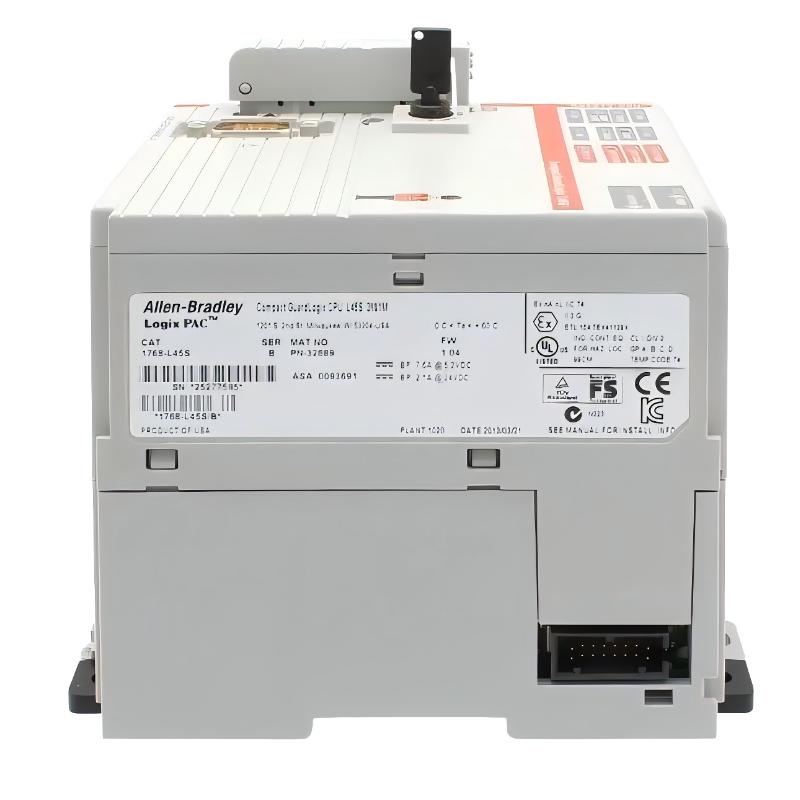

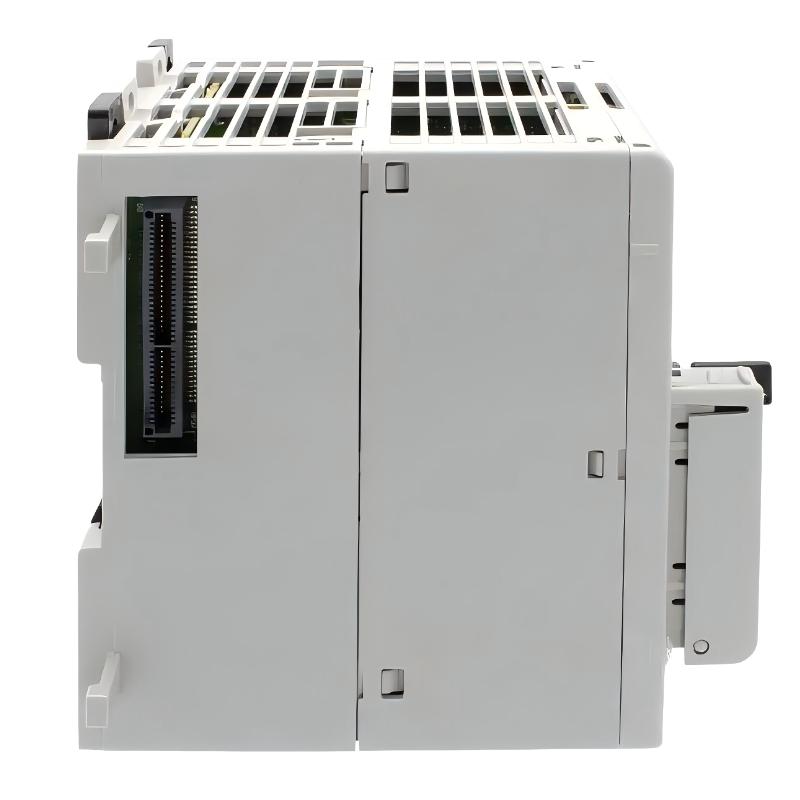

Allen Bradley 1768-L45S Industrial Equipment
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
1768-L45S Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 1768-L45S |
| Product Type | Compact GuardLogix Safety Controller |
| Category | Safety PLC CPU Module |
| System Compatibility | 1768 CompactLogix / GuardLogix system |
| Function | Safety + standard control processor for industrial automation systems |
| Safety Integrity | SIL 3 / PLe (ISO 13849-1) |
| User Memory | 3 MB standard memory + 1 MB safety memory |
| Memory Type | Standard + Safety partitioned memory |
| Communication Ports | 1 × RS-232 (isolated) |
| Protocols | EtherNet/IP, ControlNet, DeviceNet, DF1, ASCII |
| Programming Software | RSLogix 5000 / Studio 5000 |
| Task Types | Standard tasks + safety tasks |
| Safety Function | Integrated safety logic processing within same controller |
| Motion Control | Supported (via 1768 motion modules) |
| Expansion Capability | Supports 1768 + 1769 I/O modules |
| Max 1768 Modules | Up to 4 modules |
| Max 1769 I/O Modules | Up to 30 modules |
| Network Support | EtherNet/IP, ControlNet (via modules) |
| Backplane Current | ~2.1 A @ 24 VDC |
| 5V Backplane Current | ~5.6 A |
| Power Consumption | ~50.4 W |
| Power Dissipation | ~9.5 W |
| Isolation | Functional isolation (RS-232 to system) |
| Mounting | DIN rail or panel mount |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5–95% non-condensing |
| Vibration | 5 g (10–500 Hz) |
| Shock | 30 g operating |
| Dimensions (H × W × D) | 131.6 mm × 89.6 mm × 122.1 mm |
| Weight | ~0.45 kg |
| Lifecycle Status | Discontinued |
FAQ
What is the 1768-L45S used for?
It is a safety-rated Compact GuardLogix PLC, used for applications requiring both standard control and safety functions in a single controller.
What makes it different from 1768-L45?
- Includes safety processing capability (SIL 3 / PLe)
- Has separate safety memory (1 MB)
- Supports safety-certified logic execution in the same project
Does it support safety applications?
Yes, it is specifically designed for machine safety systems such as emergency stop, interlocks, and safe motion control.
How much memory does it have?
- 3 MB standard memory
- 1 MB safety memory
What communication does it support?
- EtherNet/IP
- ControlNet (via modules)
- DeviceNet (via modules)
- RS-232 serial communication
Can it do motion control?
Yes, it supports integrated motion when used with appropriate 1768 motion modules.
What software is used?
RSLogix 5000 / Studio 5000.
Where is it typically used?
- Safety-critical machinery
- Packaging systems with safety interlocks
- Robotics and motion systems
- Industrial automation requiring SIL 3 compliance
Is it still in production?
No, it is a discontinued safety controller, but still widely used in installed safety systems.
Allen Bradley 1768-L45S Industrial Equipment is in stock. Please contact us for a quick quote and competitive pricing.
