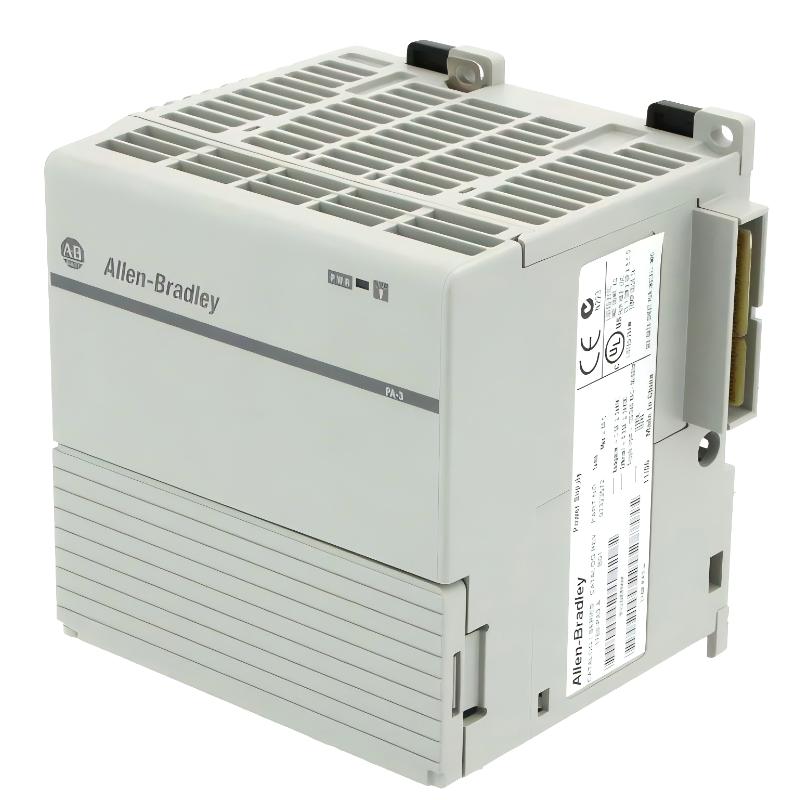

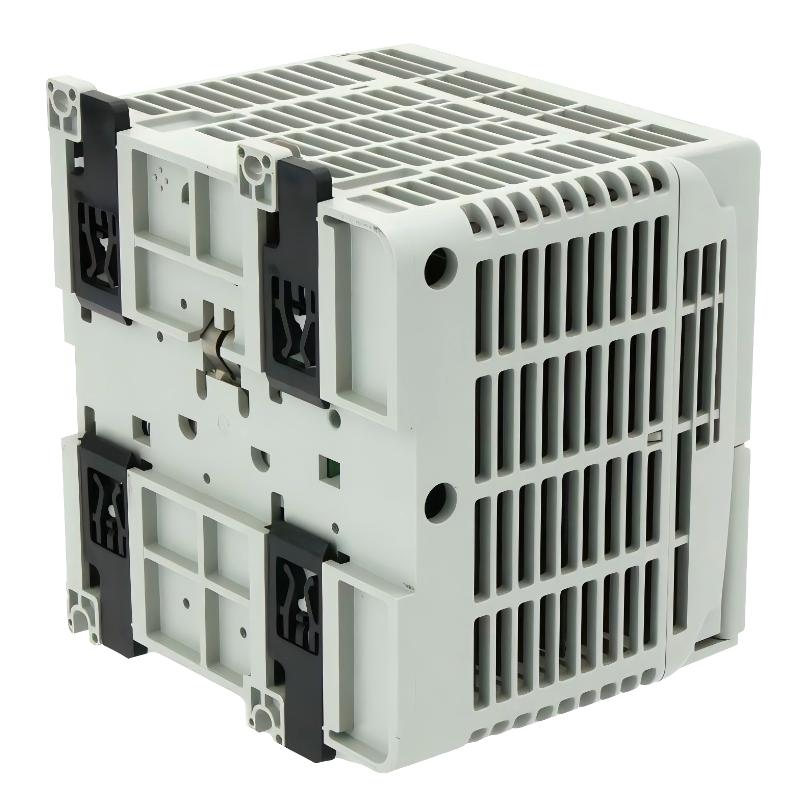

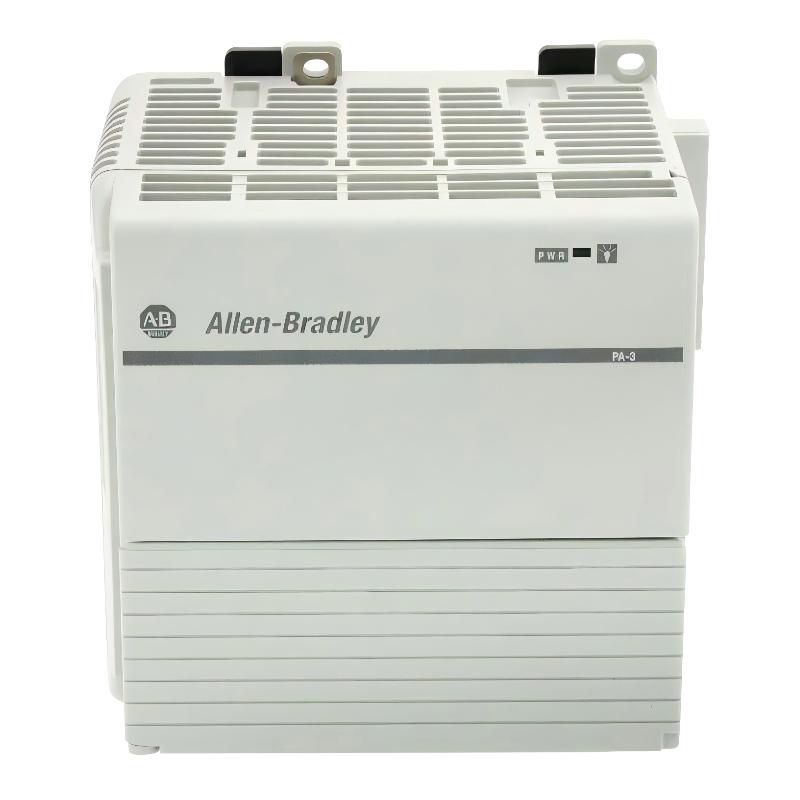

1768-PA3 Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 1768-PA3 |
| Product Type | Power Supply Module |
| Category | 1768 CompactLogix System Module |
| System Compatibility | 1768 CompactLogix (e.g., 1768-L43 / L45 / L45S) |
| Function | Provides system power to controller and backplane modules |
| Input Voltage | 85–265 VAC / 108–132 VDC |
| Nominal Voltage | 120 / 240 VAC |
| Input Frequency | 47–63 Hz |
| Input Power | Max. ~120 VA / 120 W |
| Output Voltage | 24 VDC (backplane supply) |
| Efficiency | ~75% typical |
| Power Dissipation | ~30 W max |
| Overcurrent Protection | Internal protection (external fuse up to 15 A recommended) |
| Isolation | Reinforced isolation (input to system) |
| Backplane Role | Supplies power to controller and modules (not field devices) |
| Mounting | DIN rail or panel mount |
| Enclosure Type | Open-style module |
| LED Indicators | Power status indicators |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5–95% non-condensing |
| Dimensions (H × W × D) | 131.5 mm × 132.7 mm × 105 mm |
| Weight | ~2 kg |
| Lifecycle Status | Discontinued / legacy product |
FAQ
What is the 1768-PA3 used for?
It is a power supply module for CompactLogix 1768 systems, providing operating power to the controller and backplane modules.
What does it power?
- 1768 controllers (L43 / L45 / L45S)
- Communication modules
- Motion modules
⚠ Note:
It does not directly power field devices (sensors/actuators).
What input voltage does it support?
- 85–265 VAC
- 108–132 VDC
Suitable for global industrial power systems.
What is the difference between 1768-PA3 and 1768-PB3?
- 1768-PA3: AC/DC input power supply
- 1768-PB3: DC-only input power supply
Where is it installed?
It must be installed at the leftmost position of the 1768 CompactLogix system.
Can it power I/O devices directly?
No.
It provides backplane/system power only.
Field devices require an external 24 VDC power supply.
How many modules can it support?
Depends on total system power consumption, typically supports:
- Multiple 1768 modules
- Expansion with 1769 I/O modules (subject to power budget)
Where is it typically used?
- Medium-scale automation systems
- Motion control systems
- Production lines
- Industrial process control
Is it still in production?
No, it is a discontinued legacy product, but still widely used in existing systems.
