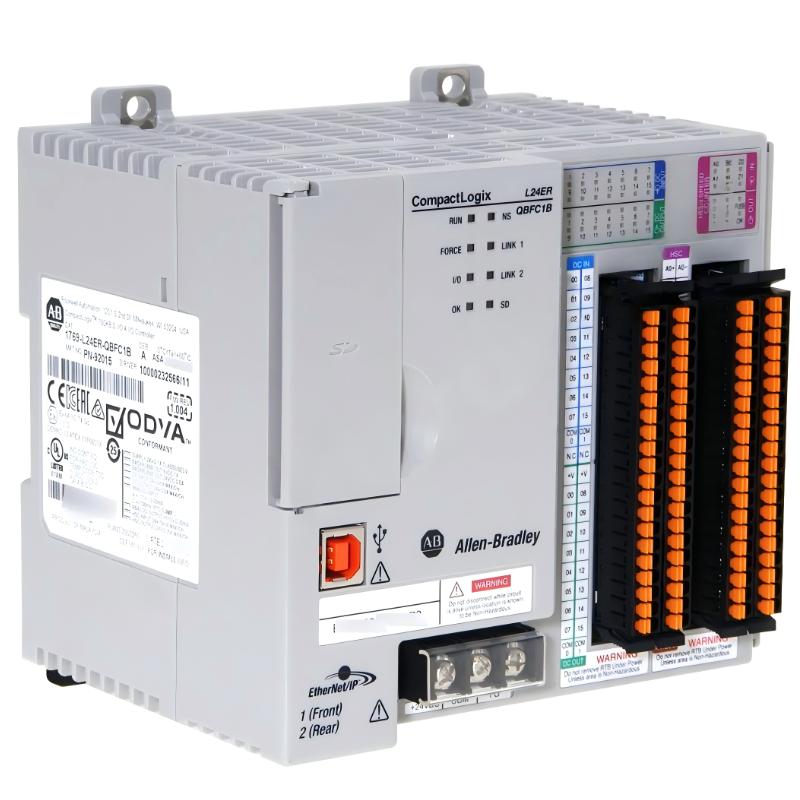

Allen Bradley 1769-L24ER-QB1B Industrial Equipment
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
1769-L24ER-QB1B Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 1769-L24ER-QB1B |
| Product Type | Industrial Equipment |
| Category | CompactLogix 5370 L2 Controller |
| System Type | Programmable Automation Controller (PAC) |
| Function | PLC with embedded I/O and EtherNet/IP communication |
| User Memory | 750 KB |
| Communication Ports | 2 × EtherNet/IP (DLR supported), 1 × USB |
| Network Capability | Up to 8 EtherNet/IP nodes, 120 TCP connections |
| Embedded I/O | 16 × 24 VDC digital inputs + 16 × 24 VDC digital outputs |
| Input Type | 24 VDC sinking inputs |
| Output Type | 24 VDC sourcing outputs |
| Expansion Capability | Up to 4 × 1769 I/O modules |
| Power Supply | 24 VDC external input (embedded power supply) |
| Data Storage | SD card support (1 GB standard, up to 2 GB) |
| Motion Control | Supported over EtherNet/IP |
| Programming Software | Studio 5000 Logix Designer |
| Isolation | Basic insulation (system-level) |
| Mounting | DIN rail or panel mount |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5–95% non-condensing |
| Dimensions (H × W × D) | ~118 mm × 115 mm × 105 mm |
| Weight | ~0.65–0.9 kg |
| Lifecycle Status | Active Mature |
Key Features
- Compact all-in-one PLC (CPU + power + I/O)
- Dual EtherNet/IP ports with DLR (ring network support)
- Built-in 16 DI + 16 DO
- Expandable up to 4 additional 1769 I/O modules
- Supports motion control over Ethernet
- SD card for program backup and data logging
Typical Applications
- Packaging machines
- Conveyors and material handling
- Small-to-medium production lines
- Standalone machine automation
- Distributed industrial control systems
Summary
The 1769-L24ER-QB1B is a CompactLogix 5370 L2 controller that integrates PLC, Ethernet communication, power system, and digital I/O in one unit. It is designed for flexible machine automation with Ethernet networking and moderate expansion capability.
