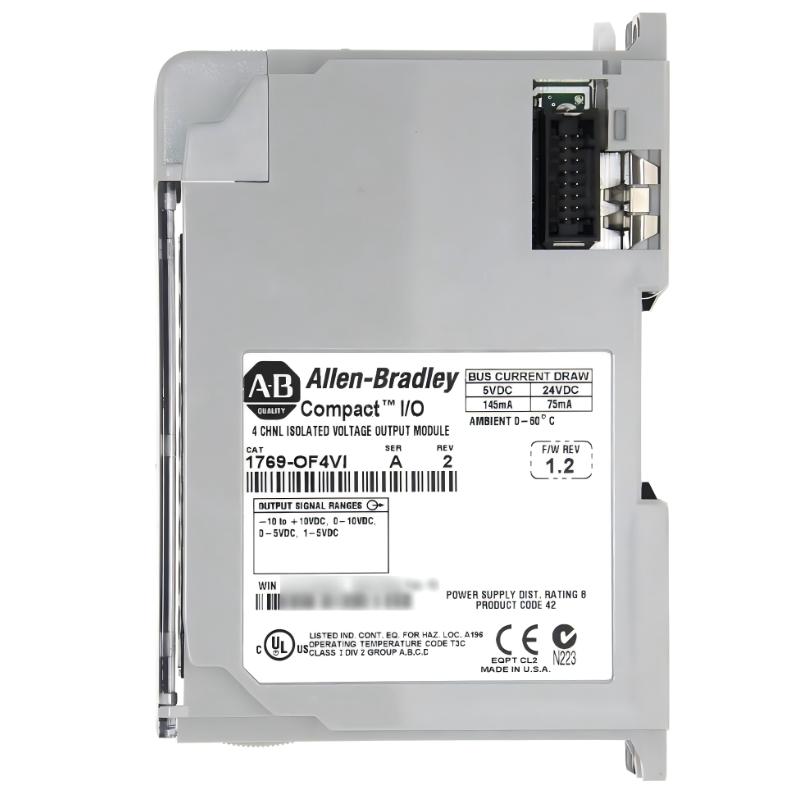

1769-OF4VI Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 1769-OF4VI |
| Product Type | Industrial Equipment |
| Category | CompactLogix Isolated Analog Output Module |
| Output Type | Analog Voltage (individually isolated) |
| Number of Channels | 4 outputs |
| Output Signal Range | ±10 V, 0–10 V, 0–5 V, 1–5 V |
| Resolution | 15-bit + sign (bipolar) |
| Output Type | Differential, individually isolated per channel |
| Conversion Rate | ~120 ms (all channels) |
| Backplane Current | ~165 mA @ 5V DC |
| External Power | ~110 mA @ 24 VDC |
| Power Dissipation | ~2.0 W |
| Output Load | High impedance (typically >1 kΩ) |
| Isolation | ~500 VAC / 710 VDC (channel-to-bus isolation) |
| Working Voltage | 30 VAC / 30 VDC |
| Mounting | DIN rail / panel mount |
| Module Width | 1 slot |
| Operating Temperature | 0°C to 60°C |
| Dimensions (H × W × D) | 118 × 35 × 87 mm |
| Weight | ~0.2–0.3 kg |
| Lifecycle Status | Active Mature |
Key Features
- 4-channel analog voltage output module
- Each channel has individual electrical isolation
- Supports standard voltage outputs: ±10 V / 0–10 V / 1–5 V
- Differential output design improves noise immunity
- High resolution (15-bit) for precise control
- Suitable for demanding industrial environments
Difference vs 1769-OF4
- OF4VI: Voltage only + per-channel isolation
- OF4: Voltage and current outputs, shared (group) isolation
- OF4VI provides better noise resistance and signal stability
Typical Applications
- High-precision VFD speed control
- Analog valve and actuator control
- Process automation in noisy environments
- Systems requiring isolated analog outputs
Summary
The 1769-OF4VI is a 4-channel isolated analog voltage output module designed for high-precision and noise-sensitive industrial control applications, offering improved signal integrity through individual channel isolation.
