1771-IAD Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 1771-IAD |
| Product Type | Industrial Equipment |
| Category | PLC-5 Digital Input Module |
| System Series | 1771 / PLC-5 I/O System |
| Function | AC/DC discrete input module |
| Input Channels | 16 points |
| Input Voltage Range | 79–138 VAC / 79–138 VDC |
| Nominal Input | 120 VAC / 125 VDC |
| Input Type | Sink/source compatible discrete signals |
| Backplane Current | ~195 mA @ 5 VDC |
| Power Dissipation | ~8.8 W |
| Signal Delay | ~3–25 ms (configurable depending on AC/DC mode) |
| Isolation | Optical isolation (field to logic side) |
| Wiring Arm | 1771-WH |
| Keying | Compatible with 1771 chassis keying positions |
| Chassis Compatibility | 1771-A1B, A3B1, A4B, AM1, AM2 |
| Mounting | 1771 I/O chassis slot module |
| Indicators | 16 point status LEDs + module status LED |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5–95% non-condensing |
| Dimensions (H × W × D) | ~113 × 278 × 360 mm |
| Weight | ~0.9–1.0 kg |
| Lifecycle Status | Discontinued / legacy module |
Key Features
- 16-point AC/DC digital input module for PLC-5 systems
- Accepts wide voltage range (120 VAC / 125 VDC nominal)
- Built-in optical isolation and noise filtering
- Supports flexible slot addressing (½, 1, 2-slot modes)
- Front-panel LED diagnostics for each input channel
- Designed for industrial discrete signal interfacing
Typical Applications
- Pushbuttons, limit switches, and selector switches
- Motor starter auxiliary contacts
- Industrial machine status monitoring
- Discrete signal acquisition in PLC-5 systems
- Legacy factory automation systems
Summary

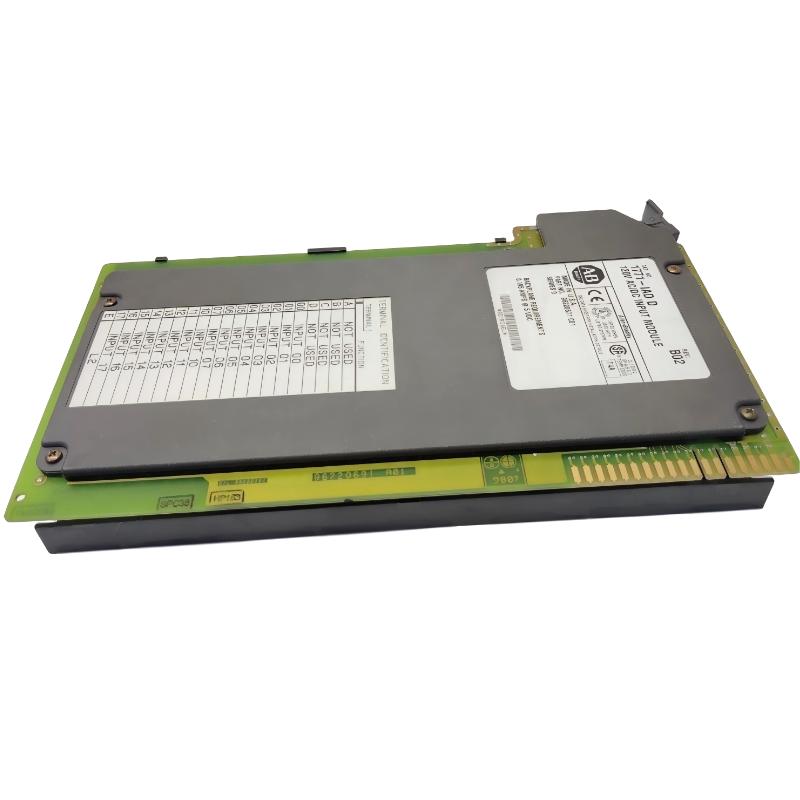

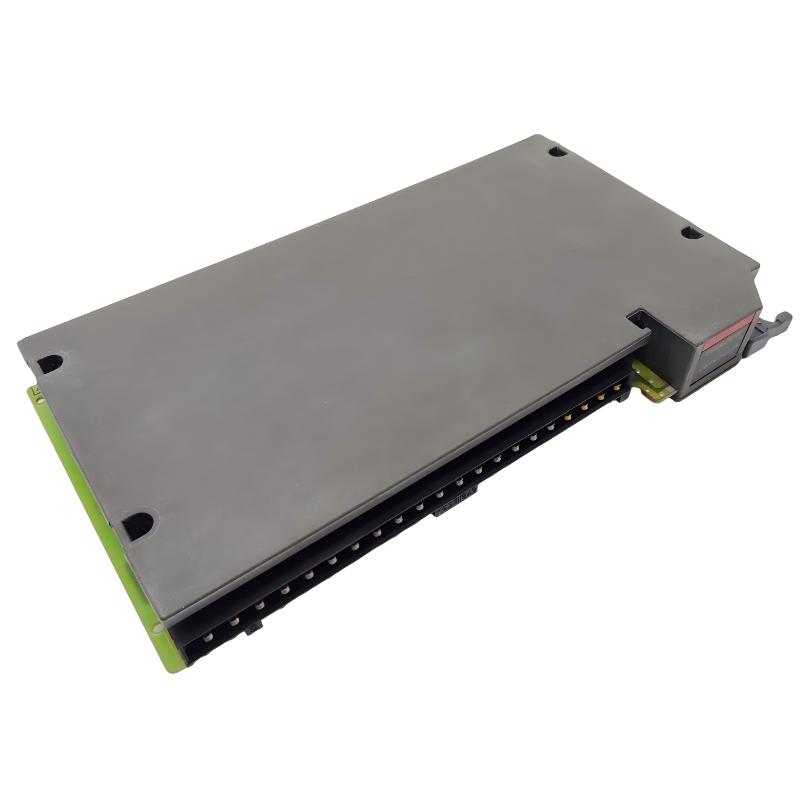

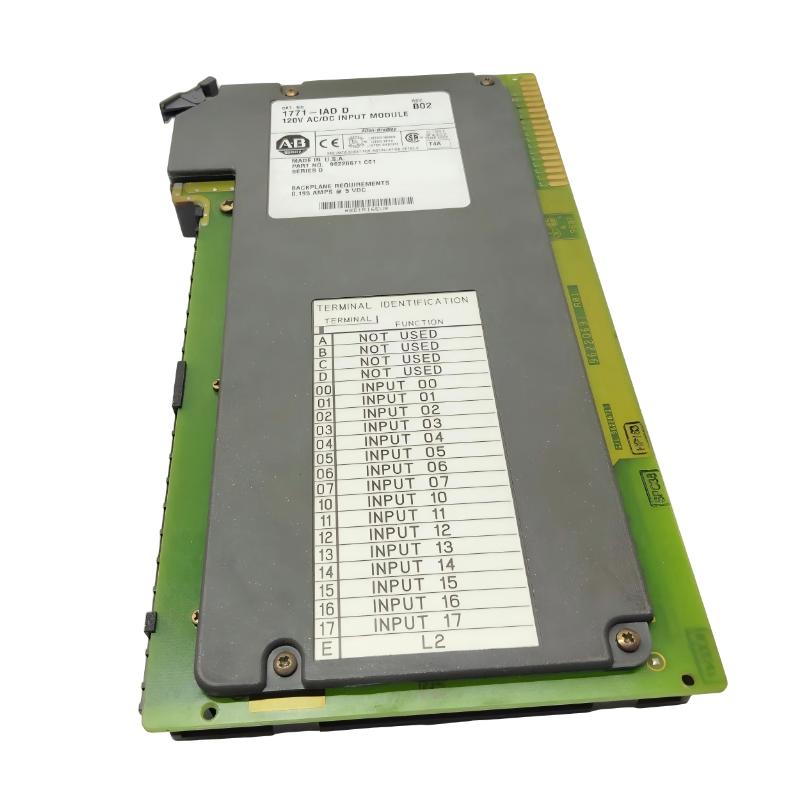

The 1771-IAD is a 16-channel PLC-5 AC/DC digital input module used to interface industrial field devices such as switches and sensors into 1771 I/O chassis systems. It is a robust legacy module widely used in older Rockwell automation architectures.
Allen Bradley 1771-IAD Industrial Equipment is in stock. Please contact us for a quick quote and competitive pricing.
