Technical Specifications
| Parameter | Specification |
|---|---|

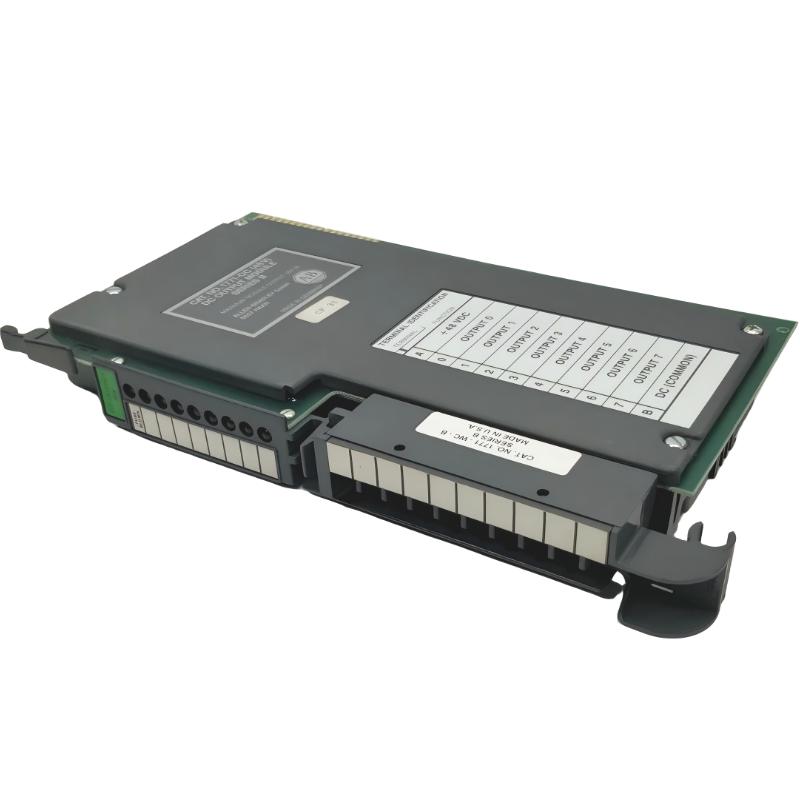

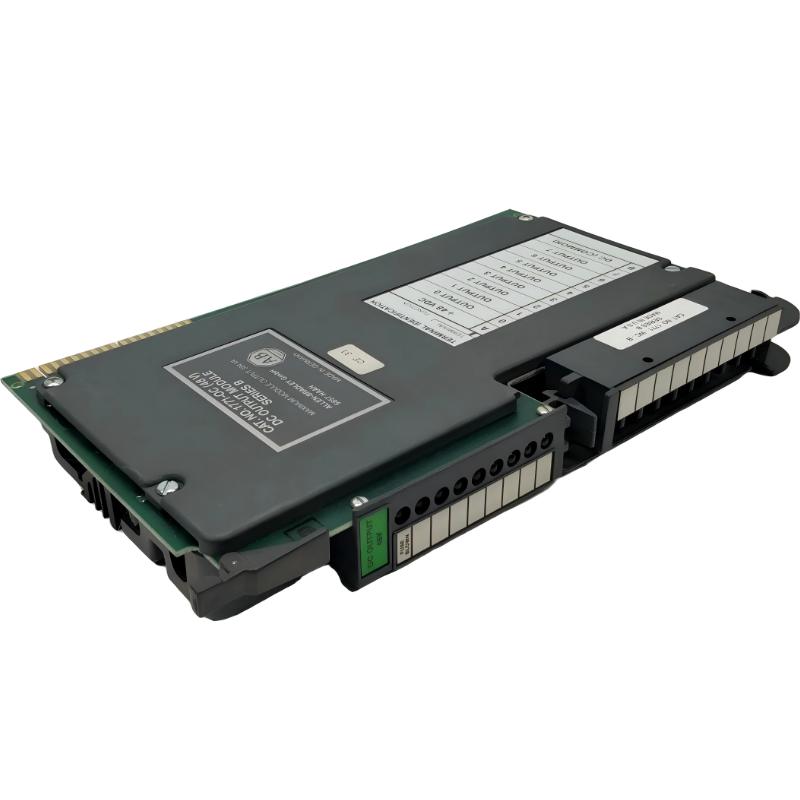

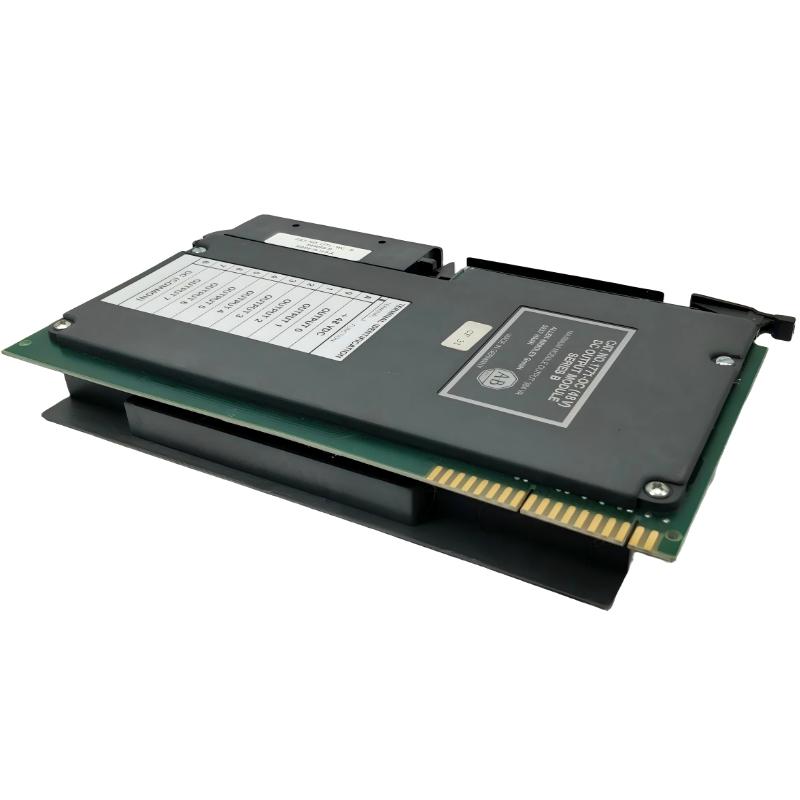

| Product Name | 1771-OC Output Module |
| Product Type | Industrial Equipment |
| Series | Allen-Bradley PLC-5 / 1771 I/O Series |
| Module Type | Discrete DC Output Module |
| Output Channels | 8-point sourcing outputs |
| Output Voltage Range | 10–60V DC (field dependent) |
| Operating Voltage | Approx. 42–53V DC internal supply |
| Output Current | 1.5 A per channel (8 A max per module) |
| Surge Current | Up to 4 A for 1 ms (repeatable) |
| Off-State Leakage | ≤ 1 mA per output |
| On-State Voltage Drop | ≤ 2.0 V DC |
| Backplane Current Load | ~165 mA @ 5V DC |
| Isolation Voltage | Up to 1500V AC RMS |
| Response Time | ~10–50 ms switching delay (depending on load) |
| Wiring System | 1771-WH / 1771-WA wiring arm compatible |
| Mounting Type | 1771 PLC I/O chassis rack-mounted |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 5%–95% non-condensing |
| Dimensions (H × W × D) | Approx. 250 × 35 × 180 mm |
| Weight | Approx. 1.2 kg |
| Typical Applications | Solenoids, motor starters, indicator lamps, industrial relay control |
FAQ
What is the 1771-OC used for?
It is a DC output module designed to control industrial field devices such as solenoids, relays, and indicator lamps within PLC-5 systems.
How many output channels does it have?
It provides 8 discrete sourcing output points.
What voltage level does it support?
It operates with a DC field voltage range typically between 10V and 60V DC.
Is the 1771-OC still in production?
No, it is a legacy module from the PLC-5 / 1771 I/O platform and is considered discontinued.
What kind of control system is it compatible with?
It is used with Allen-Bradley PLC-5 systems and 1771 I/O chassis architectures.
Does it include electrical isolation?
Yes, it provides optical isolation up to 1500V AC between field wiring and backplane logic.
What is the installation method?
It is installed in a 1771 I/O rack and connected via a backplane with a compatible wiring arm.
What are typical industrial uses?
It is commonly used in legacy manufacturing lines, process control systems, and machine automation setups where PLC-5 architecture is still in operation.
