Technical Specifications
| Parameter | Specification |
|---|---|

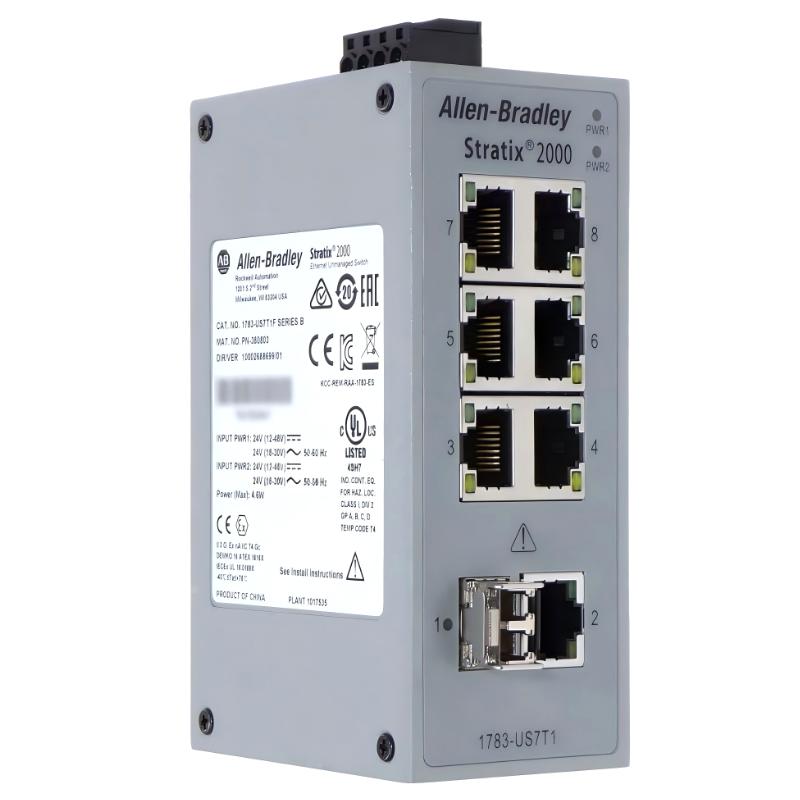

| Product Name | 1783-US7T1H Stratix 2000 Unmanaged Ethernet Switch |
| Product Type | Industrial Equipment |
| Series | Stratix 2000 |
| Device Type | Unmanaged Industrial Ethernet Switch |
| Network Type | Industrial Ethernet |
| Total Ports | 8 Ports |
| Copper Ports | 7 × 10/100 Mbps RJ45 Fast Ethernet |
| Fiber Ports | 1 × 100 Mbps Singlemode Fiber Port (preinstalled SFP module, LC connector) |
| Switching Mode | Unmanaged plug-and-play operation |
| Network Speed | 10/100 Mbps Ethernet |
| Fiber Standard | 100BASE-FX |
| Fiber Wavelength | 1310 nm |

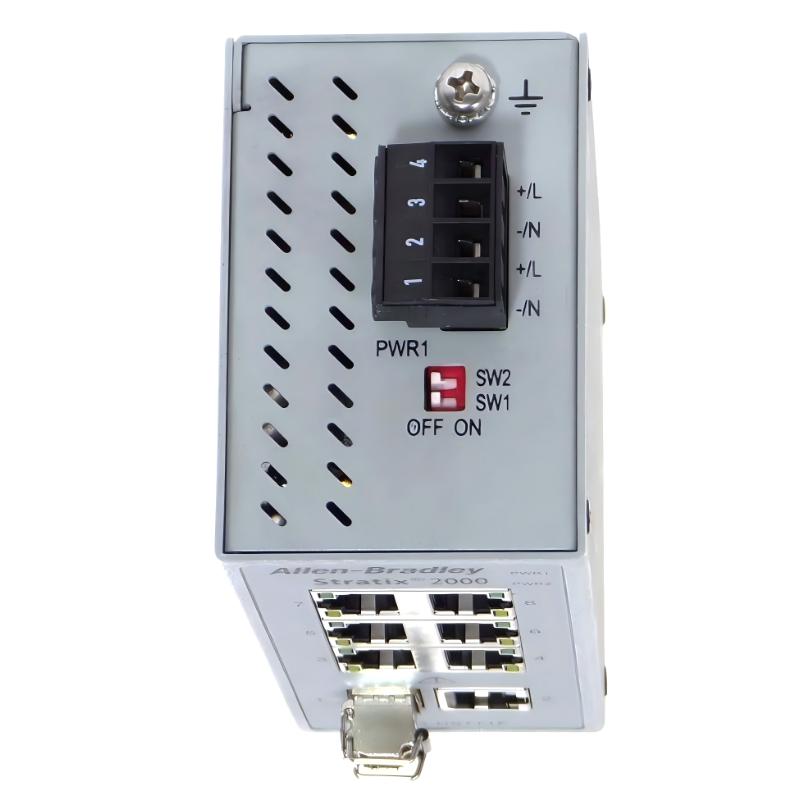

| Power Input | 12–48 V DC or 18–30 V AC (50–60 Hz) |
| Nominal Voltage | 24 V DC |
| Power Consumption | Approx. 4–5 W |
| Maximum Current | Approx. 510 mA DC / 1100 mA AC |
| Inrush Current | Approx. 0.41 A |
| Isolation Voltage | 30 V continuous isolation |

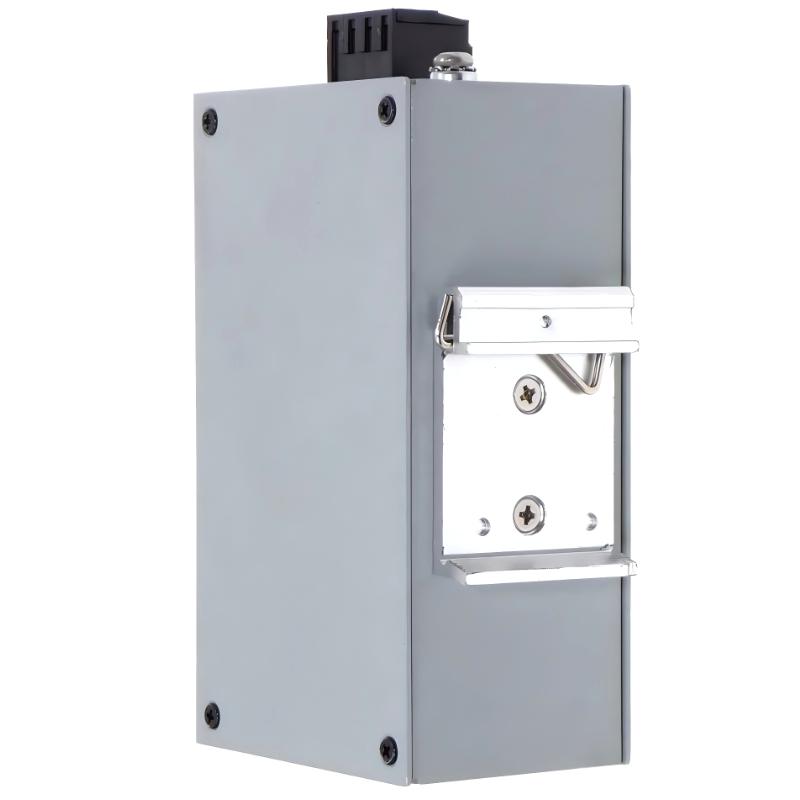

| Mounting Type | DIN rail mount |
| Enclosure Rating | IP20 |
| Cooling Method | Fanless passive cooling |
| Operating Temperature | -40°C to 75°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 5%–95% non-condensing |
| Dimensions (H × W × D) | Approx. 114.5 × 76.8 × 29.6 mm |
| Weight | Approx. 0.3–0.6 kg |
| Typical Applications | PLC networking, machine automation, industrial Ethernet systems, mixed copper + fiber communication in factory environments |
FAQ
What is the 1783-US7T1H used for?
It is an unmanaged industrial Ethernet switch used to connect PLCs, HMIs, drives, and other automation devices in factory networks.
How many ports does it have?
It provides 8 ports in total: 7 copper Fast Ethernet ports and 1 singlemode fiber port.
Does it support fiber communication?
Yes, it includes a preinstalled 100BASE-FX singlemode fiber SFP module with LC connector.
Is it managed or unmanaged?
It is an unmanaged plug-and-play switch, requiring no configuration.
What is the difference between copper and fiber ports in this model?
Copper ports are for short-distance device connections, while the fiber port enables long-distance communication up to industrial plant levels.
What is the operating temperature range?
It operates in industrial environments from -40°C to 75°C.
Is this model still recommended for new systems?
It is considered a legacy industrial switch; newer Stratix 2100 series models are typically recommended for new installations.
Where is it commonly used?
It is commonly used in factory automation systems, PLC networks, and industrial Ethernet infrastructures requiring simple unmanaged switching with one fiber uplink.
Allen Bradley 1783-US7T1H Industrial Equipment is in stock. Please contact us for a quick quote and competitive pricing.
