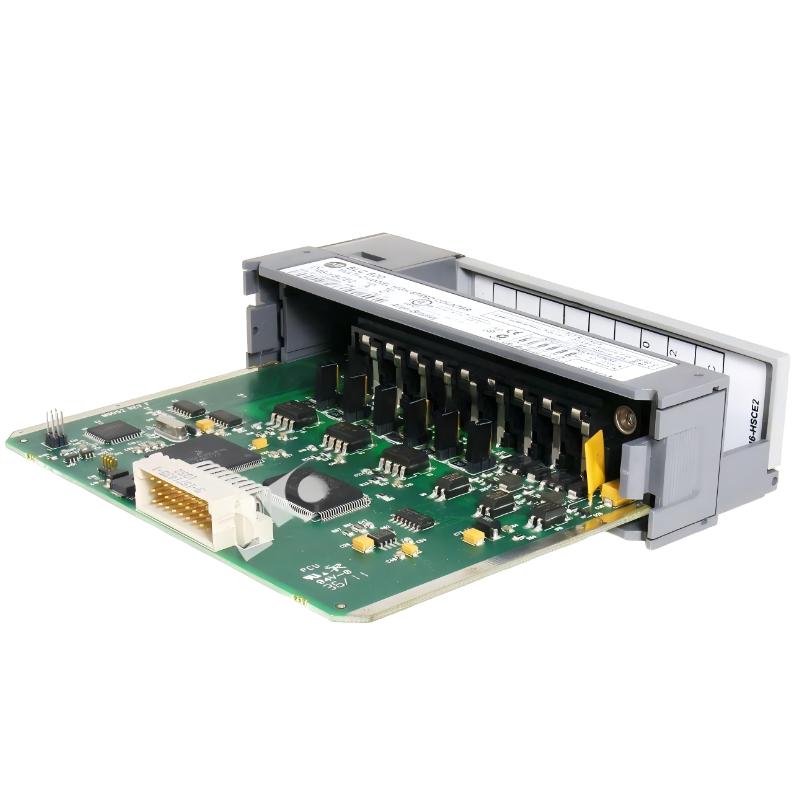

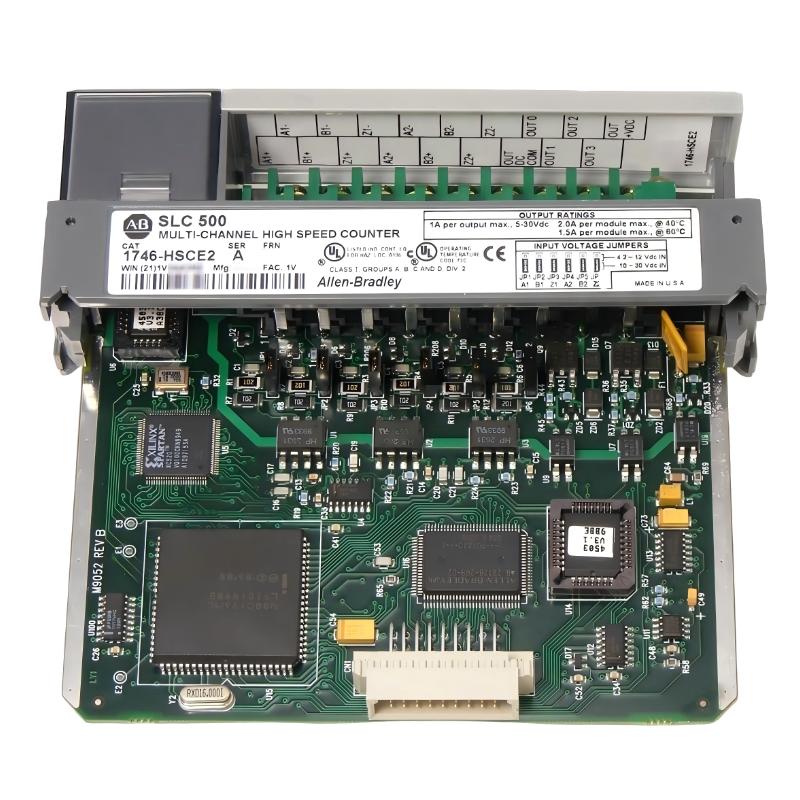

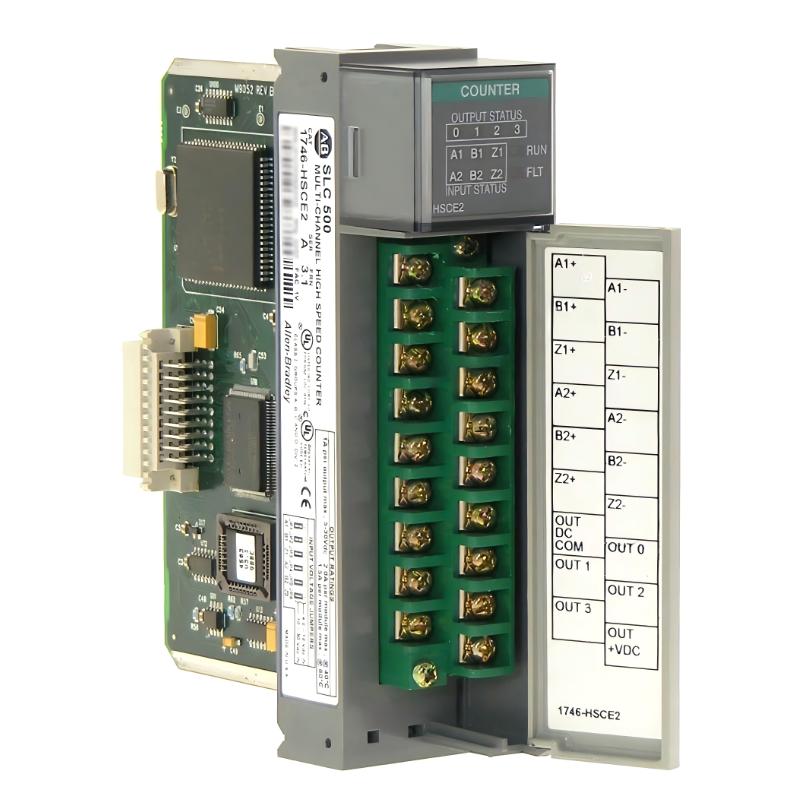

Allen Bradley 1746-HSCE2 Industrial Equipment
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 1746-HSCE2 |
| Product Type | Industrial Equipment |
| Device Category | SLC 500 High-Speed Counter Encoder Module (Enhanced) |
| System Compatibility | Allen-Bradley SLC 500 series |
| Input Channels | 2 high-speed encoder/counter channels |
| Input Types | Incremental encoder (A/B/Z), pulse/direction signals |
| Maximum Input Frequency | Up to 100 kHz (enhanced high-speed capability) |
| Counter Resolution | 32-bit high-resolution counting |
| Encoder Support | Quadrature decoding (X1, X2, X4 modes) |
| Index Input | Supported (Z-channel for reference position) |
| Operating Modes | Position tracking, frequency measurement, event counting |
| Input Voltage Range | 5–24V DC compatible digital signals |
| Input Type | Sink/source compatible high-speed inputs |
| Gate Control | Hardware and software gating supported |
| Reset Function | Hardware/software reset supported |
| Isolation | Channel-to-system isolation supported |
| Backplane Interface | SLC 500 backplane integration |
| Power Supply | Powered via SLC chassis backplane |
| Mounting Type | Installed in SLC 500 chassis slot |
| Dimensions (W × H × D) | Standard SLC module form factor (~140 × 35 × 145 mm) |
| Weight | Approx. 0.3–0.5 kg |
| Operating Temperature | 0°C to +60°C (industrial grade) |
| Storage Temperature | -40°C to +85°C |
| Application Area | High-speed motion control, encoder feedback, precision positioning, industrial automation |
FAQ
What is the main function of the 1746-HSCE2 module?
It is used to process high-speed encoder signals for precise motion control and position tracking in industrial systems.
How is it different from the 1746-HSCE?
It offers enhanced performance, including higher input frequency support and improved encoder handling features.
How many channels does it support?
It provides 2 independent high-speed encoder/counter channels.
What types of encoders can it read?
It supports incremental encoders with A/B/Z signals and pulse/direction inputs.
What is the maximum input frequency?
It supports higher input frequencies, up to approximately 100 kHz.
What is the benefit of quadrature decoding?
It improves accuracy in detecting position and direction by analyzing phase-shifted signals.
How is it installed?
It is installed in an SLC 500 chassis and communicates via the backplane.
Where is the 1746-HSCE2 commonly used?
It is used in precision motion systems, robotics, conveyor tracking, and industrial automation requiring high-speed encoder processing.
Allen Bradley 1746-HSCE2 Industrial Equipment is in stock. Please contact us for a quick quote and competitive pricing.
