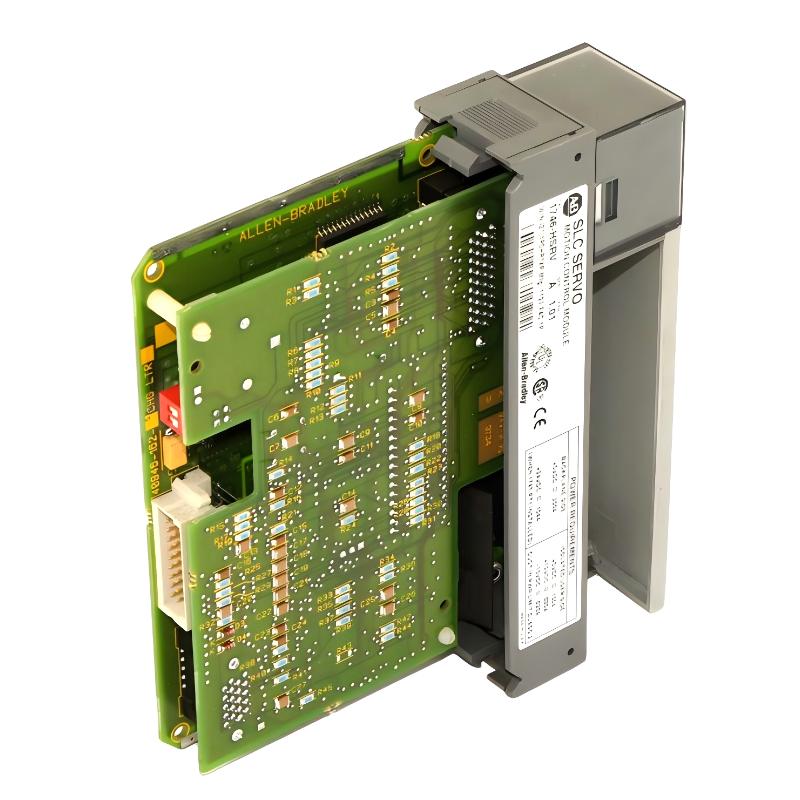

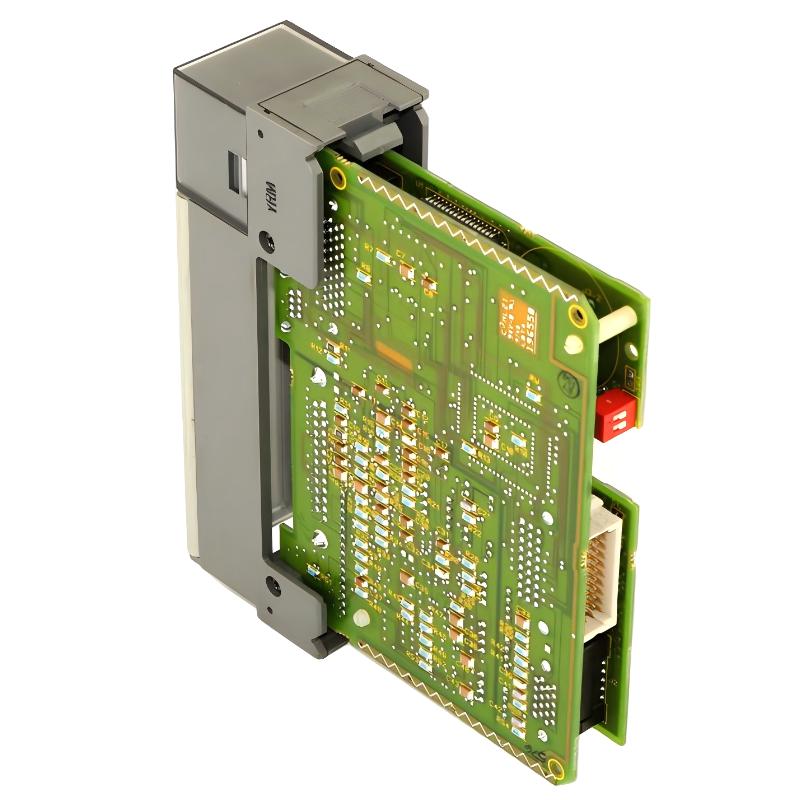

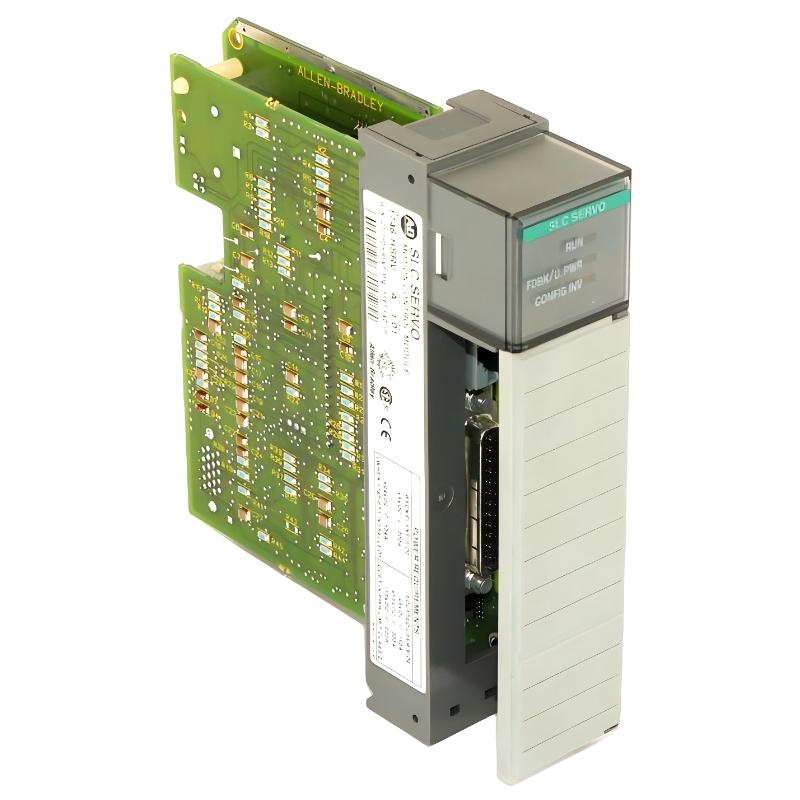

Allen Bradley 1746-HSRV Industrial Equipment
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 1746-HSRV |
| Product Type | Industrial Equipment |
| Device Category | SLC 500 High-Speed Resolver Interface Module |
| System Compatibility | Allen-Bradley SLC 500 series |
| Input Channels | 1 resolver input channel |
| Input Type | Resolver (sin/cos analog feedback signals) |
| Supported Devices | Rotary and linear resolvers |
| Resolution | Up to 16-bit position resolution |
| Maximum Update Rate | High-speed position update (sub-millisecond typical) |
| Signal Processing | Resolver-to-digital conversion |
| Operating Modes | Position tracking, velocity calculation |
| Input Voltage Range | Resolver excitation and feedback signals (module generated) |
| Excitation Output | Built-in resolver excitation signal |
| Isolation | Field-to-system isolation supported |
| Backplane Interface | SLC 500 backplane integration |
| Power Supply | Powered via SLC chassis backplane |
| Mounting Type | Installed in SLC 500 chassis slot |
| Dimensions (W × H × D) | Standard SLC module form factor (~140 × 35 × 145 mm) |
| Weight | Approx. 0.3–0.5 kg |
| Operating Temperature | 0°C to +60°C (industrial grade) |
| Storage Temperature | -40°C to +85°C |
| Application Area | Motion control, resolver feedback systems, position and speed monitoring, industrial automation |
FAQ
What is the main function of the 1746-HSRV module?
It interfaces with resolver sensors to provide precise position and speed feedback in industrial control systems.
What type of sensors does it support?
It supports resolver-based position sensors, commonly used in harsh industrial environments.
How many channels does it have?
It provides a single resolver input channel.
What is the advantage of using a resolver?
Resolvers are highly robust and reliable in extreme conditions such as high temperature, vibration, and electrical noise.
Does the module provide excitation for the resolver?
Yes, it includes built-in excitation for driving the resolver sensor.
What kind of output does it generate?
It converts analog resolver signals into digital position and velocity data for the PLC.
How is it installed?
It is installed in an SLC 500 chassis and communicates via the backplane.
Where is the 1746-HSRV commonly used?
It is used in motion control systems, heavy machinery, and industrial applications requiring durable and precise position feedback.
Allen Bradley 1746-HSRV Industrial Equipment is in stock. Please contact us for a quick quote and competitive pricing.
