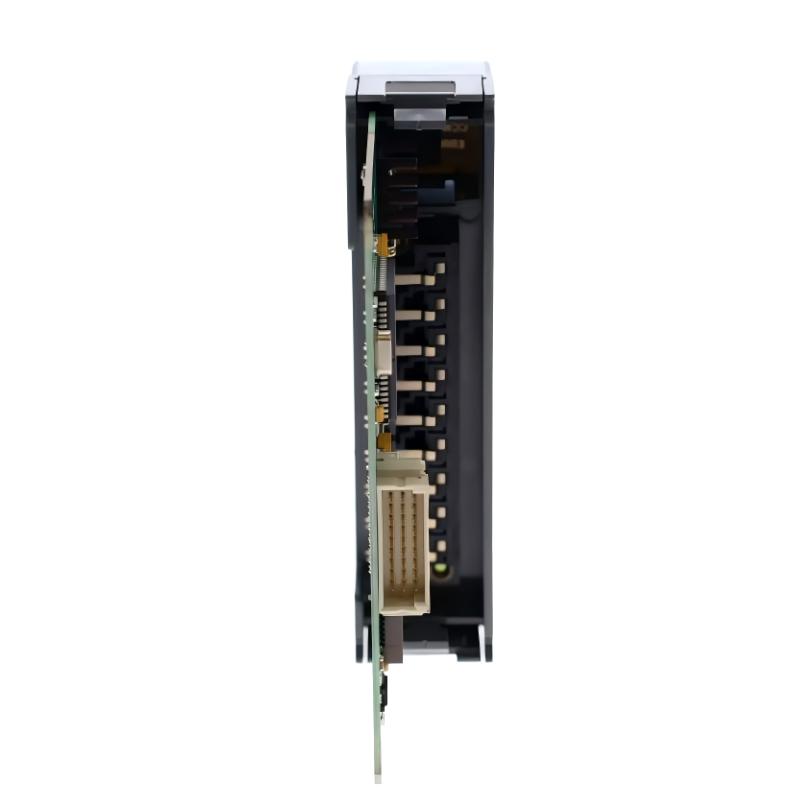

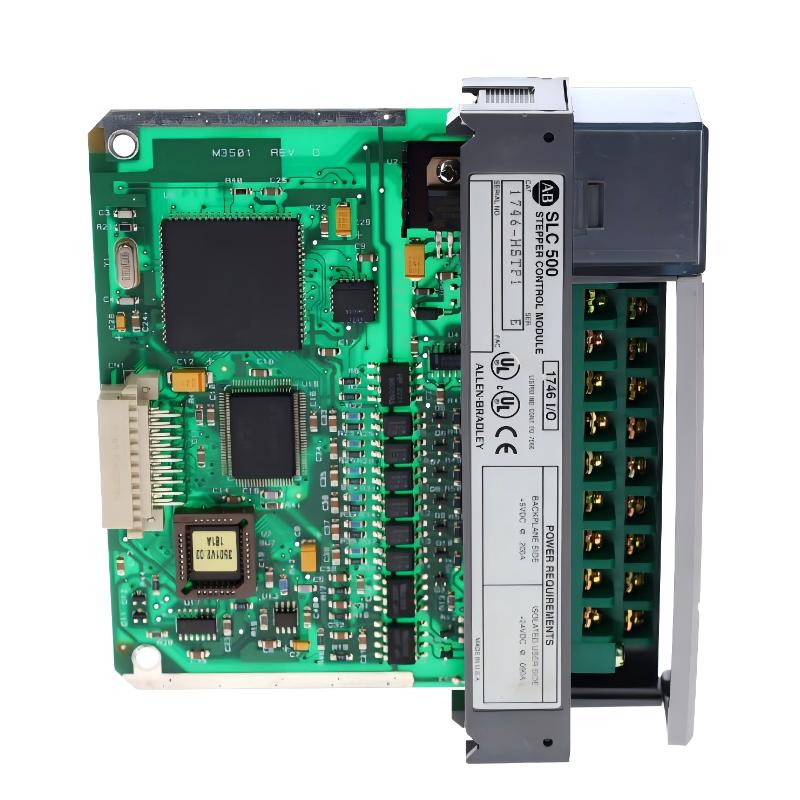

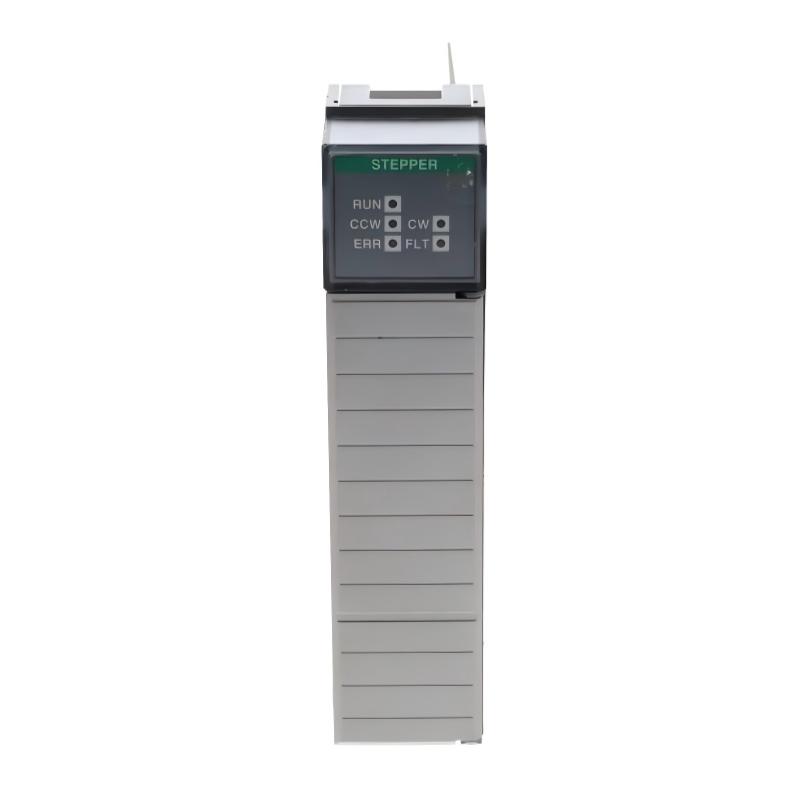

Allen Bradley 1746-HSTP1 Industrial Equipment
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 1746-HSTP1 |
| Product Type | Industrial Equipment |
| Device Category | SLC 500 High-Speed Stepper Motor Control Module |
| System Compatibility | Allen-Bradley SLC 500 series |
| Control Channels | 1-axis stepper motor control |
| Output Type | Pulse and direction outputs |
| Output Signal | Step (pulse) and direction control signals |
| Maximum Output Frequency | Up to 50 kHz (high-speed pulse output) |
| Motion Control Modes | Positioning, velocity control, incremental moves |
| Position Resolution | High-resolution pulse-based positioning |
| Acceleration/Deceleration | Programmable ramp control supported |
| Input Signals | Limit switches, home input, and control signals |
| Isolation | Field-to-system isolation supported |
| Backplane Interface | SLC 500 backplane integration |
| Power Supply | Powered via SLC chassis backplane |
| Mounting Type | Installed in SLC 500 chassis slot |
| Dimensions (W × H × D) | Standard SLC module form factor (~140 × 35 × 145 mm) |
| Weight | Approx. 0.3–0.5 kg |
| Operating Temperature | 0°C to +60°C (industrial grade) |
| Storage Temperature | -40°C to +85°C |
| Application Area | Motion control, stepper motor systems, positioning applications, industrial automation |
FAQ
What is the main function of the 1746-HSTP1 module?
It controls a single-axis stepper motor by generating high-speed pulse and direction signals.
What type of motors does it support?
It is designed specifically for stepper motors using pulse/direction control.
How many axes can it control?
It supports one axis of motion control.
What is the maximum output frequency?
It can generate pulse outputs up to approximately 50 kHz.
Does it support positioning control?
Yes, it supports precise positioning through programmable pulse output.
Can it handle acceleration and deceleration?
Yes, it includes programmable ramp control for smooth motion.
How is it installed?
It is installed in an SLC 500 chassis and communicates via the backplane.
Where is the 1746-HSTP1 commonly used?
It is used in machine automation, positioning systems, packaging equipment, and other applications requiring stepper motor control.
Allen Bradley 1746-HSTP1 Industrial Equipment is in stock. Please contact us for a quick quote and competitive pricing.
