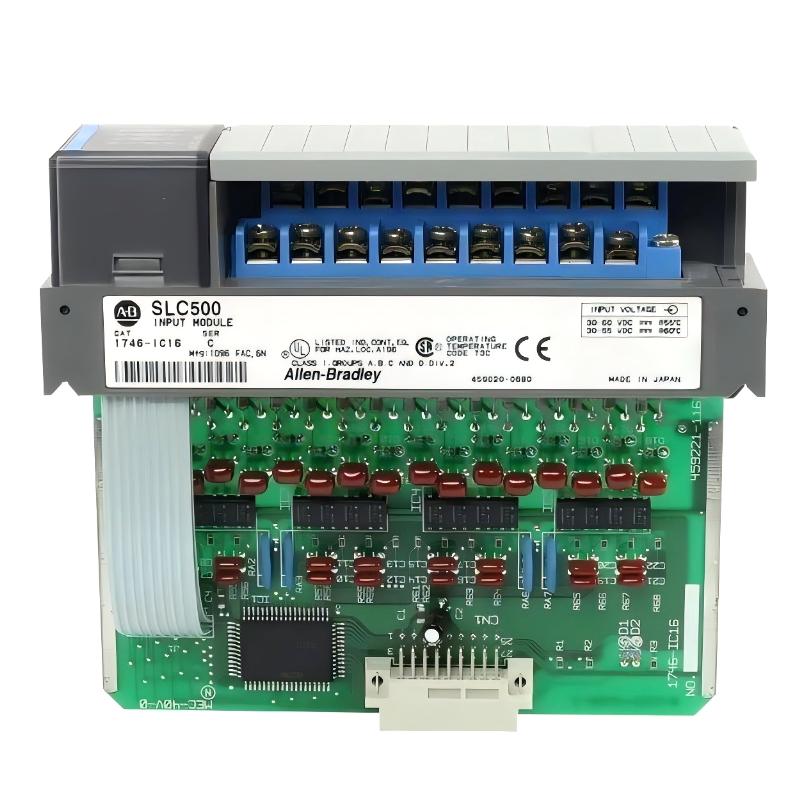

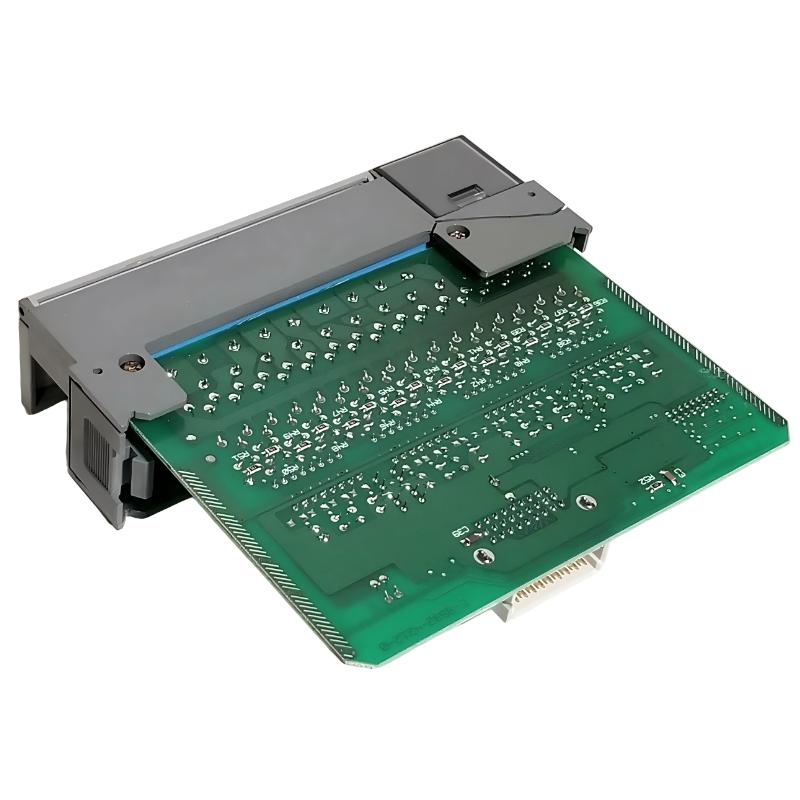

Allen Bradley 1746-IC16 Industrial Equipment
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 1746-IC16 |
| Product Type | Industrial Equipment |
| Device Category | SLC 500 DC Digital Input Module (Isolated) |
| System Compatibility | Allen-Bradley SLC 500 series |
| Input Channels | 16-point DC digital inputs |
| Input Voltage Range | 10–30V DC (nominal 24V DC) |
| Input Current | Approx. 8 mA per channel at 24V DC |
| Input Type | Sinking (compatible with sourcing field devices) |
| Isolation | Individually isolated input channels |
| Signal Delay | Typical ON delay ~8 ms / OFF delay ~8 ms |
| Noise Immunity | Enhanced due to channel isolation |
| Backplane Interface | SLC 500 backplane integration |
| Power Supply | Powered via SLC chassis backplane |
| Mounting Type | Installed in SLC 500 chassis slot |
| Dimensions (W × H × D) | Standard SLC module form factor (~140 × 35 × 145 mm) |
| Weight | Approx. 0.4–0.6 kg |
| Operating Temperature | 0°C to +60°C (industrial grade) |
| Storage Temperature | -40°C to +85°C |
| Status Indicators | LED indicators per channel |
| Application Area | Industrial automation, isolated signal monitoring, high-noise environments, machine control systems |
FAQ
What is the main function of the 1746-IC16 module?
It is used to monitor 16-channel DC digital input signals with enhanced isolation for industrial applications.
What makes it different from standard input modules?
Each channel is individually isolated, improving noise immunity and signal reliability.
How many input channels does it provide?
It provides 16 independent DC input channels.
What voltage range does it support?
It supports 10–30V DC, typically used with 24V DC control signals.
What type of input configuration does it use?
It is a sinking input module designed for sourcing field devices.
Why is isolation important?
Isolation protects the system from electrical noise, ground loops, and voltage spikes.
How is it installed?
It is installed in an SLC 500 chassis and communicates through the backplane.
Where is the 1746-IC16 commonly used?
It is commonly used in industrial environments with high electrical noise or where signal integrity is critical.
Allen Bradley 1746-IC16 Industrial Equipment is in stock. Please contact us for a quick quote and competitive pricing.
