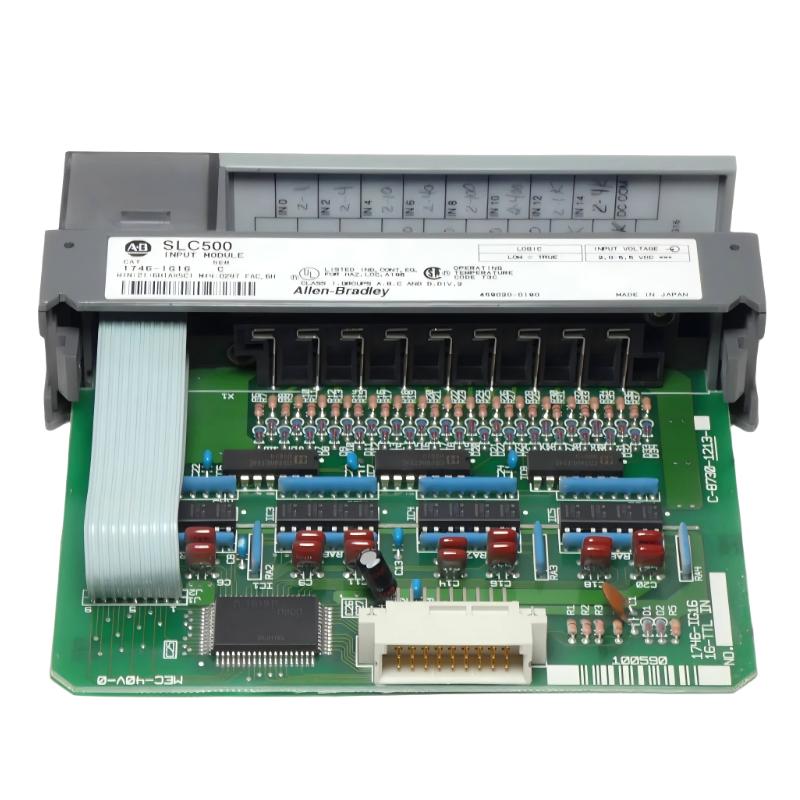

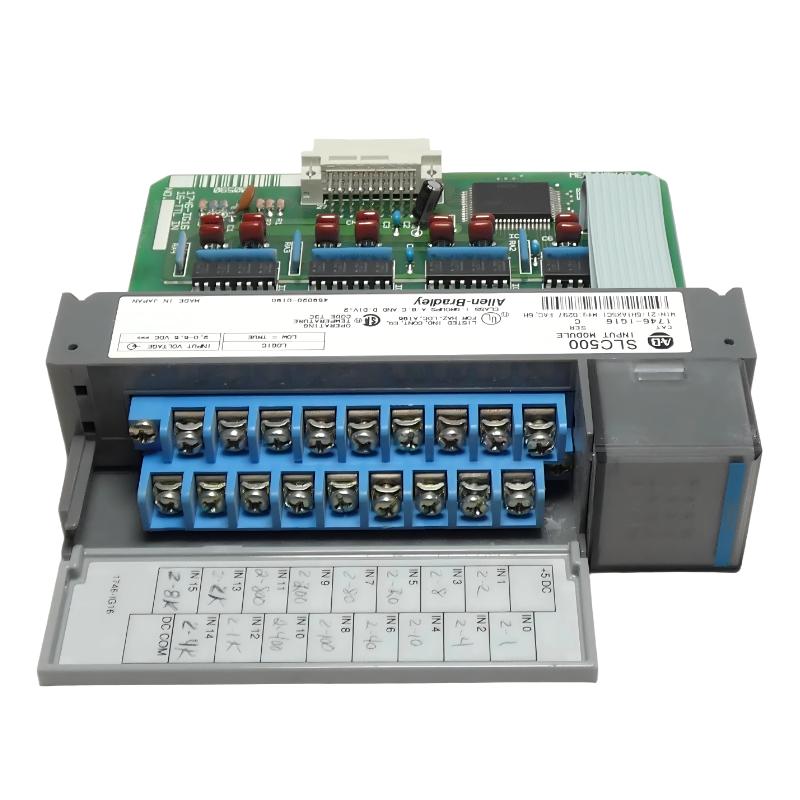

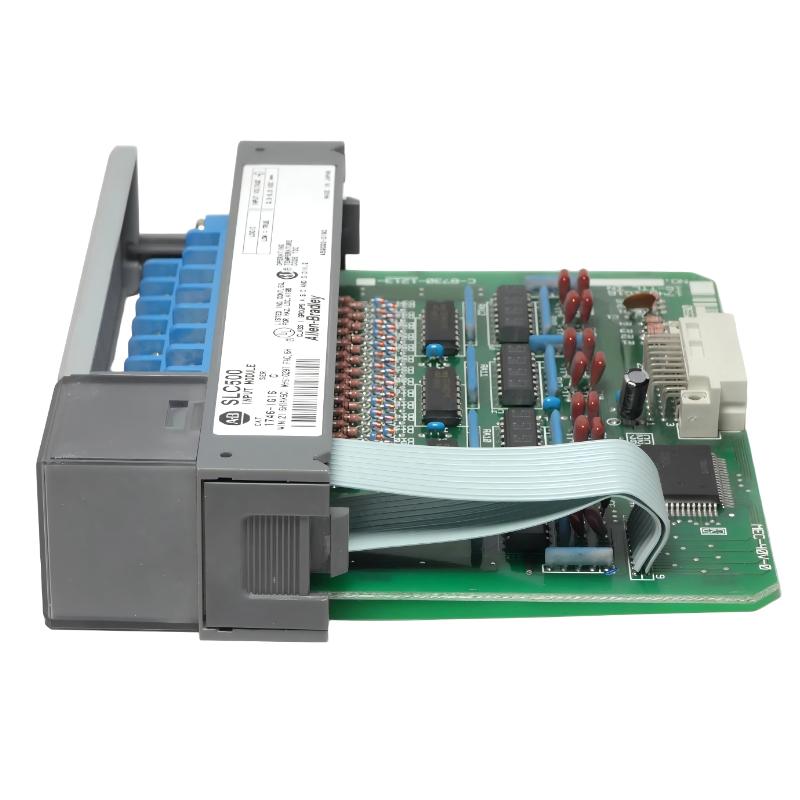

Allen Bradley 1746-IG16 Industrial Equipment
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 1746-IG16 |
| Product Type | Industrial Equipment |
| Device Category | SLC 500 TTL Digital Input Module |
| System Compatibility | Allen-Bradley SLC 500 series |
| Input Channels | 16-point TTL digital inputs |
| Input Voltage Range | 4.5–5.5V DC (TTL logic level) |
| Input Current | Low-current TTL input level |
| Input Type | TTL-compatible discrete signals |
| Signal Logic | High-speed ON/OFF logic level detection |
| Signal Delay | Minimal delay (microsecond-level response typical) |
| Isolation | Limited isolation (logic-level interface) |
| Backplane Interface | SLC 500 backplane integration |
| Power Supply | Powered via SLC chassis backplane |
| Mounting Type | Installed in SLC 500 chassis slot |
| Dimensions (W × H × D) | Standard SLC module form factor (~140 × 35 × 145 mm) |
| Weight | Approx. 0.3–0.5 kg |
| Operating Temperature | 0°C to +60°C (industrial grade) |
| Storage Temperature | -40°C to +85°C |
| Status Indicators | LED indicators per channel |
| Application Area | High-speed digital signal monitoring, TTL logic interfacing, industrial automation systems |
FAQ
What is the main function of the 1746-IG16 module?
It is used to monitor 16-channel TTL-level digital input signals in industrial control systems.
What type of signals does it support?
It supports TTL logic signals, typically in the 5V DC range.
How many input channels does it have?
It provides 16 independent TTL digital input channels.
Is it suitable for 24V DC signals?
No, it is designed specifically for low-voltage TTL signals, not standard 24V industrial inputs.
What is the advantage of TTL inputs?
They offer fast response times and are suitable for high-speed digital applications.
Does it provide isolation?
It has limited isolation compared to standard industrial input modules.
How is it installed?
It is installed in an SLC 500 chassis and communicates via the backplane.
Where is the 1746-IG16 commonly used?
It is used in applications requiring fast digital signal processing, such as interfacing with electronic circuits, counters, or specialized control systems.
Allen Bradley 1746-IG16 Industrial Equipment is in stock. Please contact us for a quick quote and competitive pricing.
