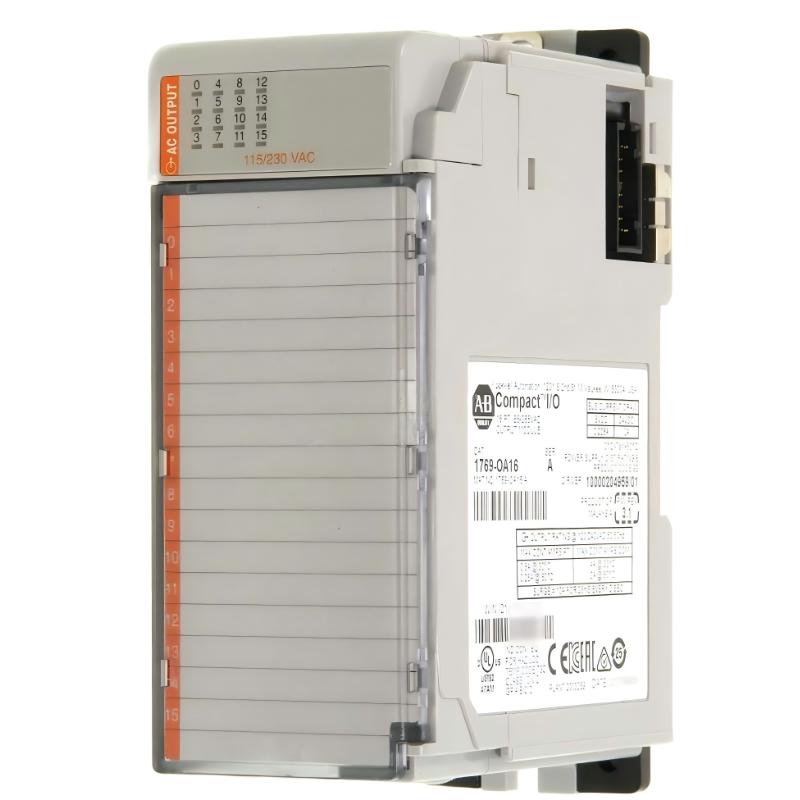

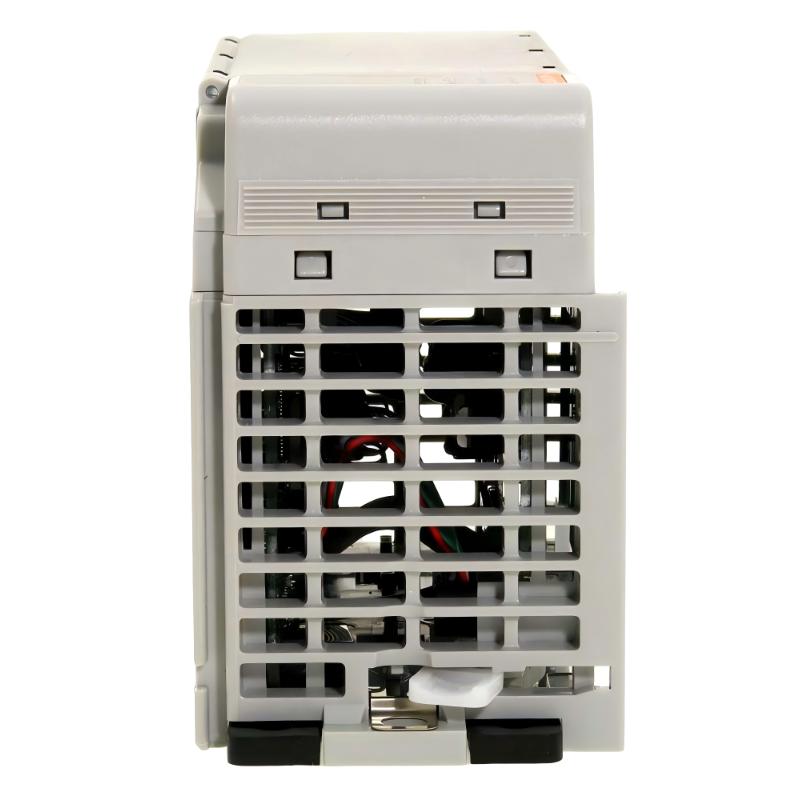

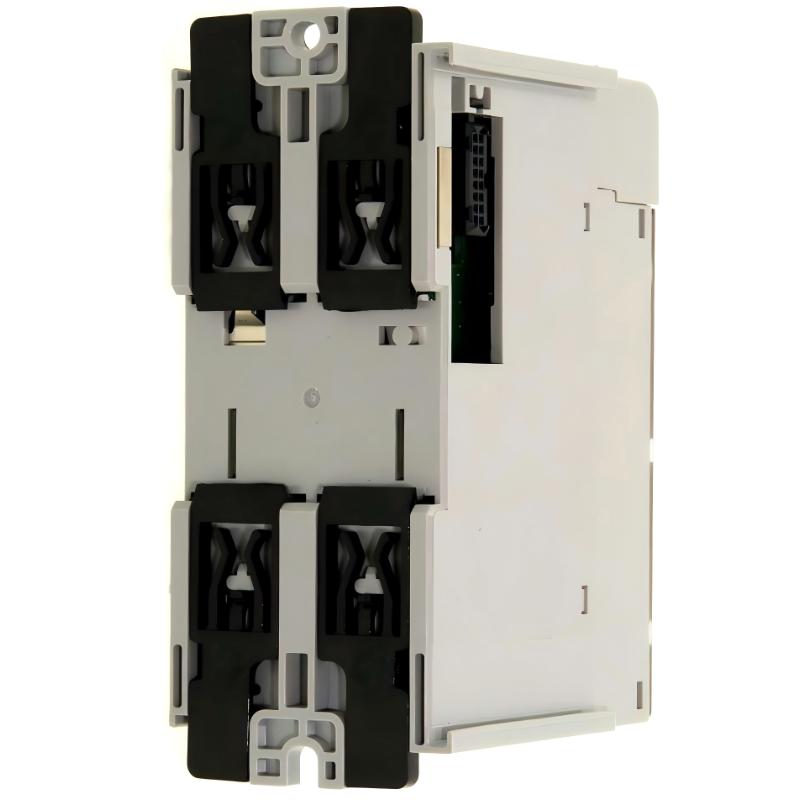

Allen Bradley 1769-OA16 Industrial Equipment
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
1769-OA16 Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 1769-OA16 |
| Product Type | Industrial Equipment |
| Category | CompactLogix 16-point AC Output Module |
| Output Type | Triac AC output |
| Number of Channels | 16 points |
| Output Voltage Range | 85–265 VAC |
| Frequency Range | 47–63 Hz |
| Output Grouping | 2 groups (8 points per group) |
| Output Current Rating | Typically up to 0.5 A per point (varies by load type) |
| Leakage Current | Small off-state leakage (typical for triac outputs) |
| Isolation | 1836 VAC for 1 second (channel-to-bus / group isolation) |
| Backplane Power | ~225 mA @ 5V DC |
| Power Dissipation | ~4.9 W max |
| Mounting | DIN rail / panel mount |
| Module Width | 1 slot |
| Wiring Type | AC load switching (no relay contacts, solid-state triac) |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5–95% non-condensing |
| Dimensions (H × W × D) | ~118 × 35 × 87 mm |
| Weight | ~0.4 kg |
| Lifecycle Status | Active Mature |
Key Features
- 16-point AC solid-state output module (triac type)
- Designed for 85–265 VAC loads
- Fast switching with electronic triac outputs (no mechanical wear)
- Grouped outputs for simplified wiring
- Suitable for relays, solenoids, lamps, small AC loads
- Compact 1769 I/O system compatible
Typical Applications
- Control of AC relays and contactors
- Indicator lamps and signal devices
- Small AC motor starters (via contactor)
- Packaging and conveyor machine outputs
- General industrial automation AC switching
Summary
The 1769-OA16 is a CompactLogix AC output module with 16 triac-based outputs designed for switching 85–265 VAC industrial loads. It is commonly used where fast, reliable, and maintenance-free AC switching is required, replacing mechanical relay output modules in many applications.
Allen Bradley 1769-OA16 Industrial Equipment is in stock. Please contact us for a quick quote and competitive pricing.
