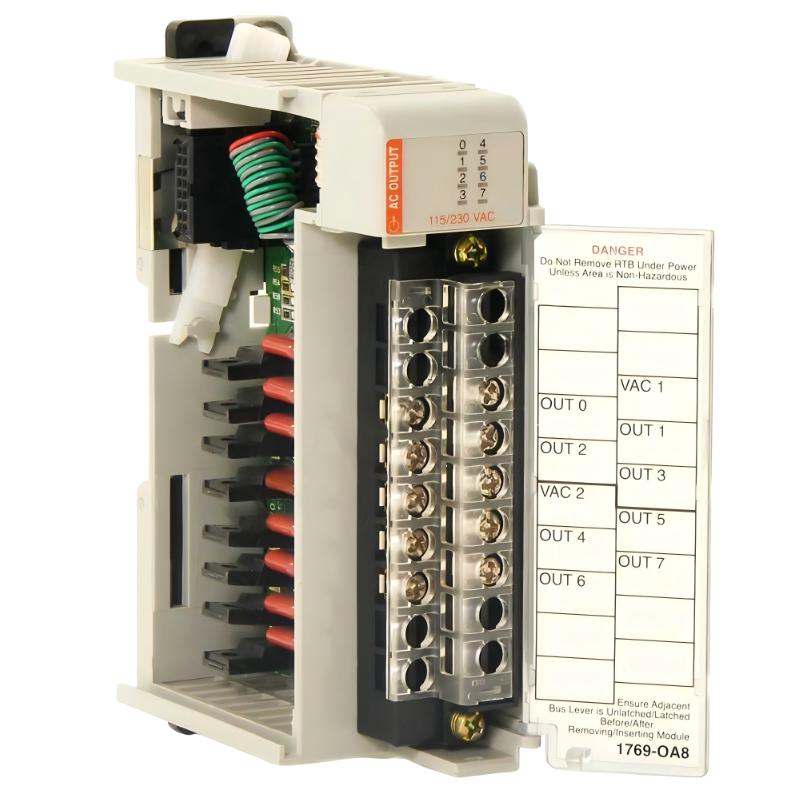

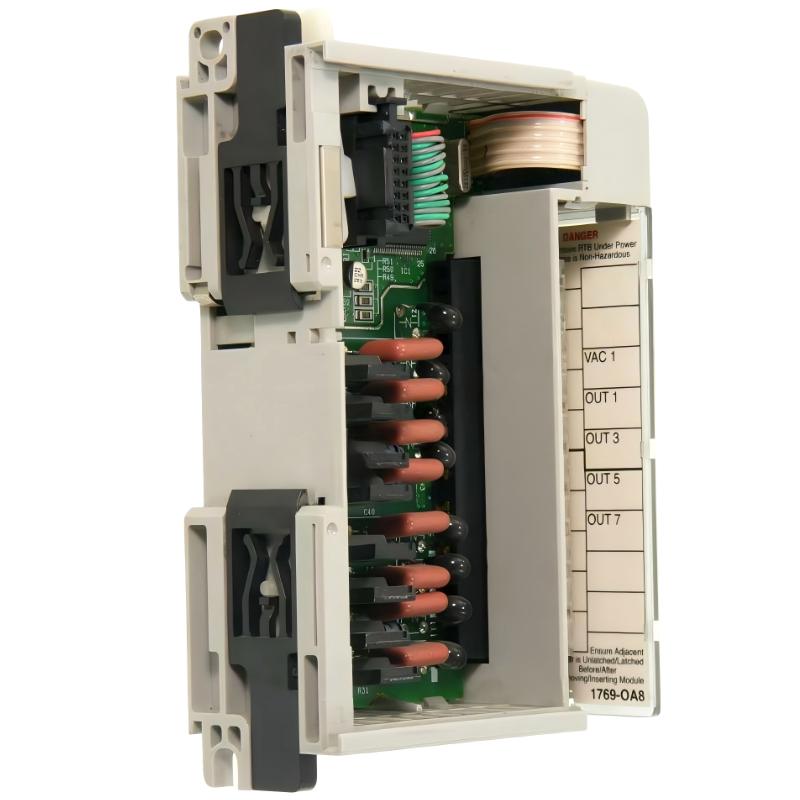

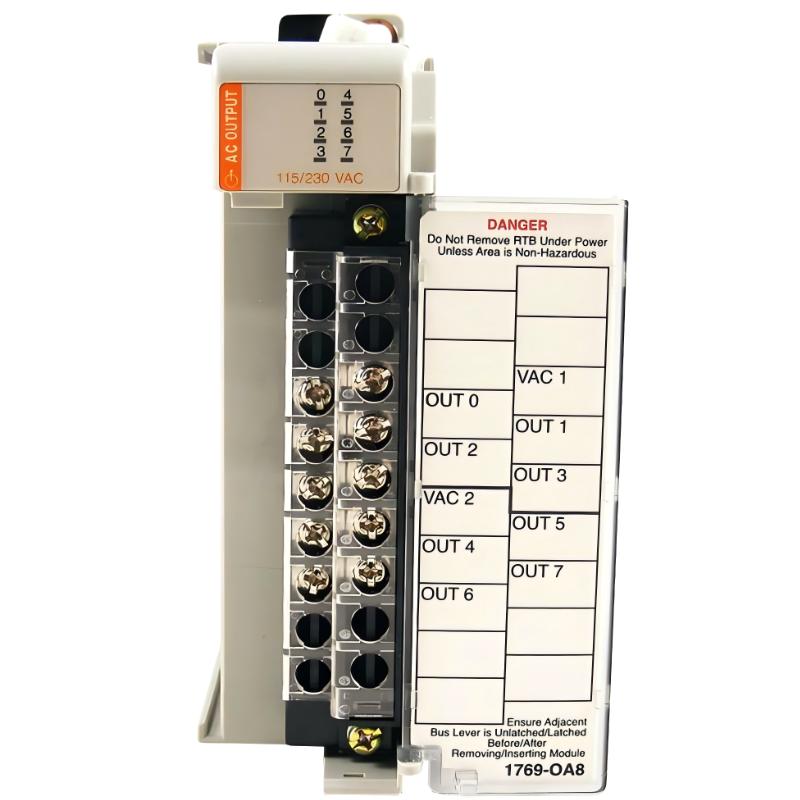

Allen Bradley 1769-OA8 Industrial Equipment
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
1769-OA8 Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 1769-OA8 |
| Product Type | Industrial Equipment |
| Category | CompactLogix AC Output Module |
| Output Type | Triac AC output |
| Number of Channels | 8 points |
| Output Voltage Range | 85–265 VAC |
| Frequency Range | 47–63 Hz |
| Output Grouping | 2 groups (4 points per group) |
| Output Current Rating | Typically up to ~0.5 A per point (load dependent) |
| Leakage Current | Small off-state leakage (typical triac behavior) |
| Isolation | ~1836 VAC (channel/group to bus, test rating) |
| Backplane Current | ~145–225 mA @ 5V DC (varies by revision) |
| Power Dissipation | ~2.1–4.9 W |
| Mounting | DIN rail / panel mount |
| Module Width | 1 slot |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5–95% non-condensing |
| Dimensions (H × W × D) | ~118 × 35 × 87 mm |
| Weight | ~0.2–0.28 kg |
| Lifecycle Status | Active Mature |
Key Features
- 8-point AC solid-state output module
- Uses triac switching (no mechanical relays)
- Designed for 85–265 VAC industrial loads
- Fast switching with long electrical life
- Suitable for relays, solenoids, lamps, contactor coils
- Compact 1769 I/O system compatible
Typical Applications
- AC relay and contactor control
- Indicator lamps and signaling devices
- Small AC load switching
- Packaging and conveyor machine outputs
- General industrial automation AC control
Summary
The 1769-OA8 is a CompactLogix AC output module with 8 triac-based outputs designed for switching 85–265 VAC loads. It is commonly used in industrial automation systems where reliable, maintenance-free AC output switching is required.
Allen Bradley 1769-OA8 Industrial Equipment is in stock. Please contact us for a quick quote and competitive pricing.
