Technical Specifications
| Parameter | Specification |
|---|---|

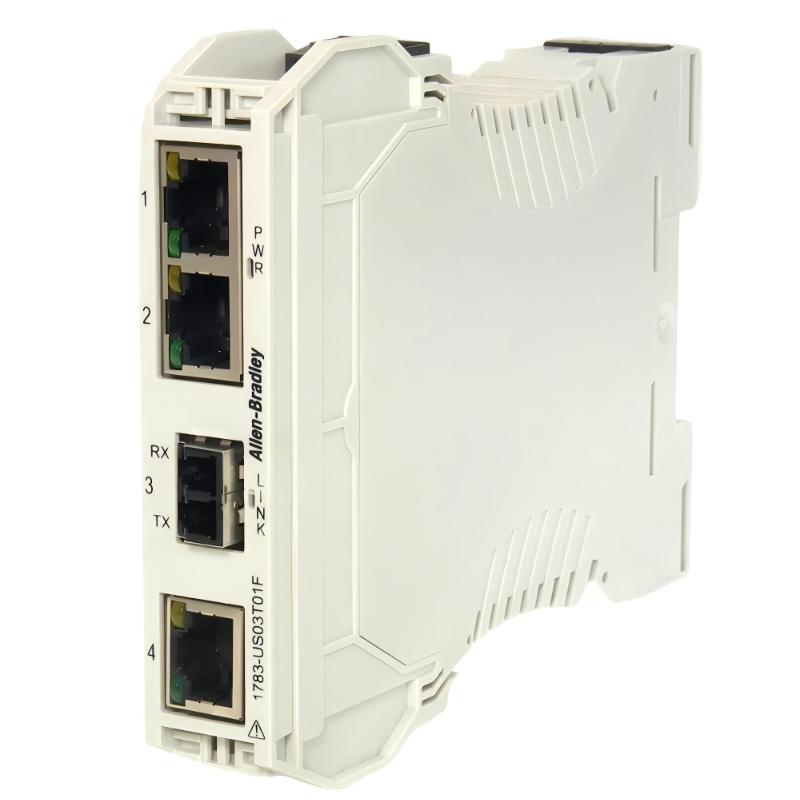

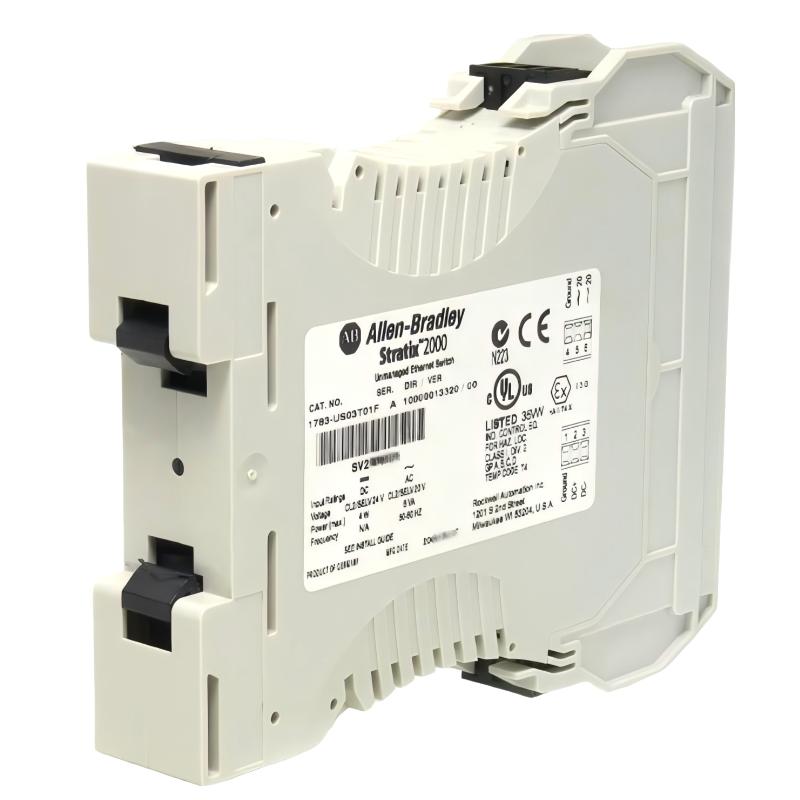

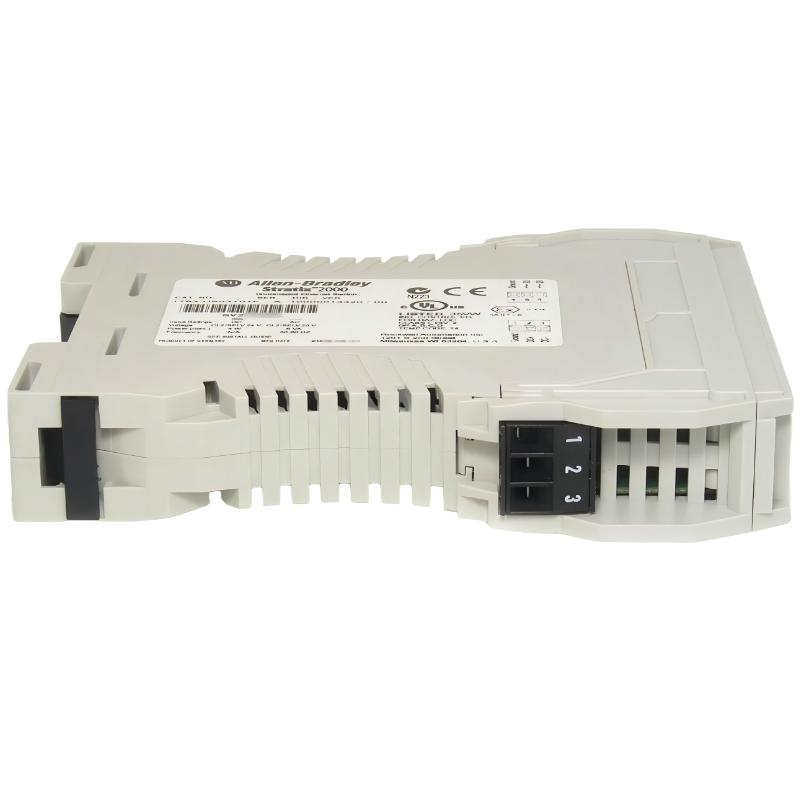

| Product Name | 1783-US03T01F Stratix 2000 Unmanaged Ethernet Switch |
| Product Type | Industrial Equipment |
| Series | Stratix 2000 |
| Device Type | Unmanaged Industrial Ethernet Switch |
| Network Type | Industrial Ethernet |
| Total Ports | 4 Ports |
| Copper Ports | 3 × 10/100 Mbps RJ45 Fast Ethernet |
| Fiber Ports | 1 × 100 Mbps Multimode Fiber (LC connector) |
| Switching Mode | Unmanaged (plug-and-play) |
| Network Speed | 10/100 Mbps Ethernet |
| Power Input | 20V AC or 24V DC (wide-range support) |
| Power Consumption | Approx. 4 W |
| Inrush Current | Up to 2.2 A |
| Isolation Voltage | ~30 V industrial isolation |
| Mounting Type | DIN rail mount |
| Enclosure Type | Open industrial enclosure |
| Cooling Method | Fanless passive cooling |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 5%–95% non-condensing |
| Fiber Link Type | 100Base-FX multimode fiber |
| Dimensions (H × W × D) | Approx. 127 × 22.5 × 108 mm |
| Weight | Approx. 0.48 kg |
| Typical Applications | Small machine networks, PLC connectivity, basic industrial Ethernet communication, compact control systems |
FAQ
What is the 1783-US03T01F used for?
It is a small unmanaged industrial Ethernet switch designed to connect PLCs and devices in compact automation systems.
Is it a managed switch?
No, it is an unmanaged plug-and-play switch with no configuration required.
How many ports does it have?
It has 4 total ports: 3 copper Ethernet ports and 1 fiber optic port.
Does it support fiber connections?
Yes, it includes 1 multimode fiber port using an LC connector.
What is the power requirement?
It supports either 20V AC or 24V DC industrial power input.
What is its operating temperature range?
It operates from 0°C to 60°C in industrial environments.
Is it suitable for harsh environments?
Yes, it is designed for industrial use, though it is more basic compared to Stratix managed switches.
Where is it commonly used?
It is typically used in small-scale automation systems, machine-level networks, and basic PLC communication setups.
Allen Bradley 1783-US03T01F Industrial Equipment is in stock. Please contact us for a quick quote and competitive pricing.
