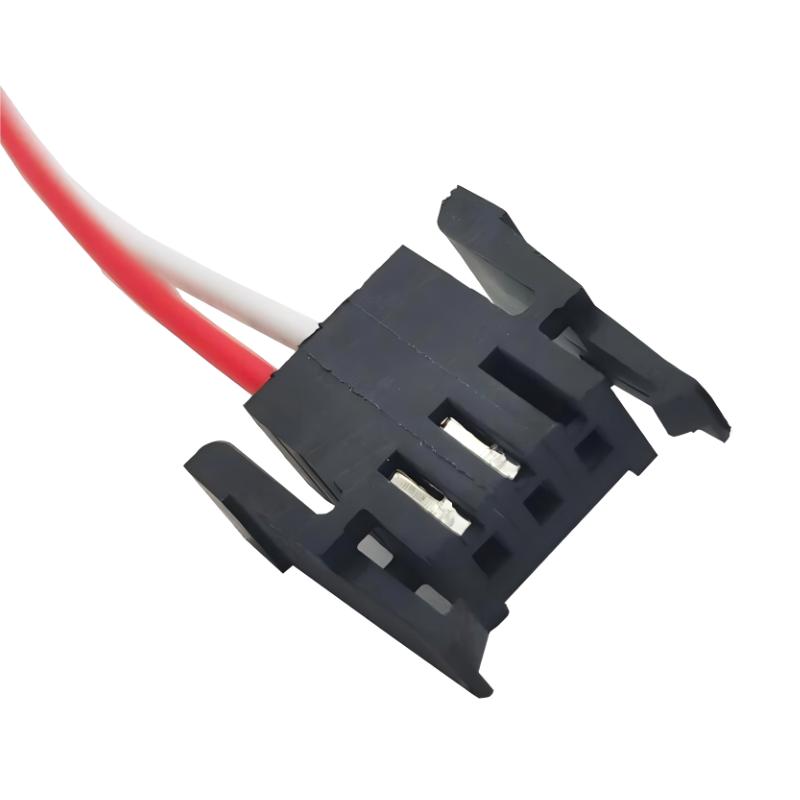

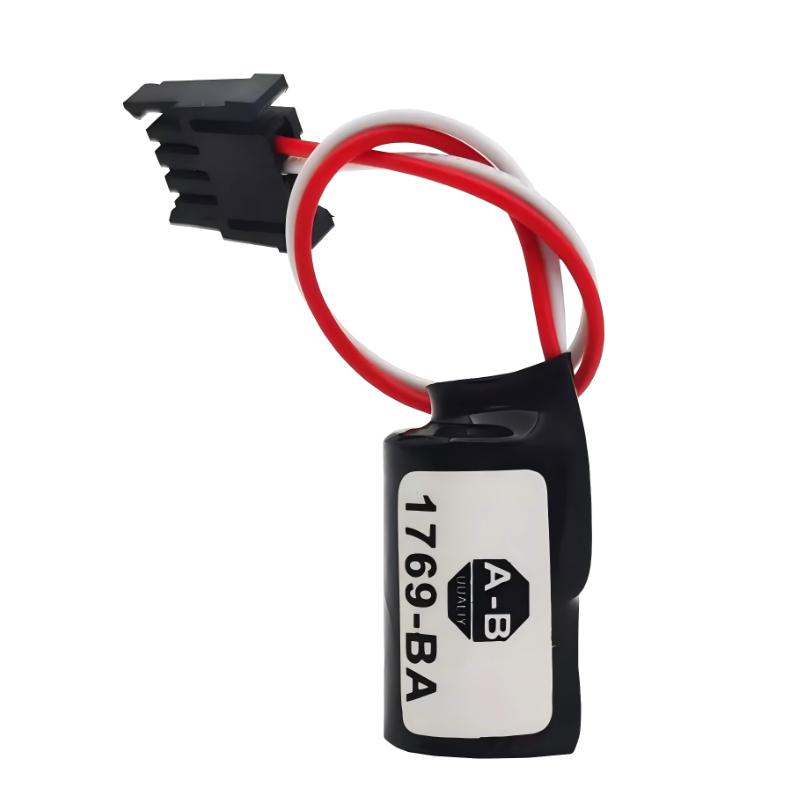

Allen Bradley 1769-BA Industrial Equipment
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
1769-BA Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 1769-BA |
| Product Type | Industrial Equipment |
| Category | PLC Battery Backup Module |
| System Compatibility | CompactLogix 1769 series controllers |
| Function | Provides memory and real-time clock backup during power loss |
| Battery Type | Lithium battery assembly (3.6 V class) |
| Nominal Voltage | ~3.6 V |
| Capacity | ~850 mAh (typical) |
| Function Scope | Retains RAM data and RTC settings |
| Memory Retention | Program data retention during power outage |
| Real-Time Clock Support | Yes |
| Installation Type | Plug-in battery assembly within controller system |
| Replaceability | Field-replaceable battery module |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -45°C to 85°C |
| Humidity | 5–95% non-condensing |
| Isolation Voltage | ~30 V continuous (system dependent) |
| Dimensions | 50 mm × 25 mm × 15 mm |
| Weight | ~0.04–0.05 kg |
| Lifecycle Status | Active / widely used in legacy systems |
FAQ
What is the 1769-BA used for?
It is a battery backup module for CompactLogix 1769 PLC systems, used to preserve memory and real-time clock data during power loss.
What does it protect?
- PLC program data (RAM retention)
- Configuration data
- Real-time clock (RTC) settings
Is it rechargeable?
No.
It is a non-rechargeable lithium battery assembly.
How long does it last?
Typically 3–5 years, depending on temperature and usage conditions.
What happens when the battery is low or fails?
- Loss of retained memory after power loss
- RTC resets
- System may require program reload
Can it be replaced while the system is running?
In many installations, it is replaceable, but proper maintenance procedure must be followed.
Where is it used?
- CompactLogix PLC systems
- Industrial automation control panels
- Machines requiring memory retention during outages
Is it still in production?
Yes, it is still used as a standard replacement battery for 1769 systems, although the platform itself is considered legacy.
