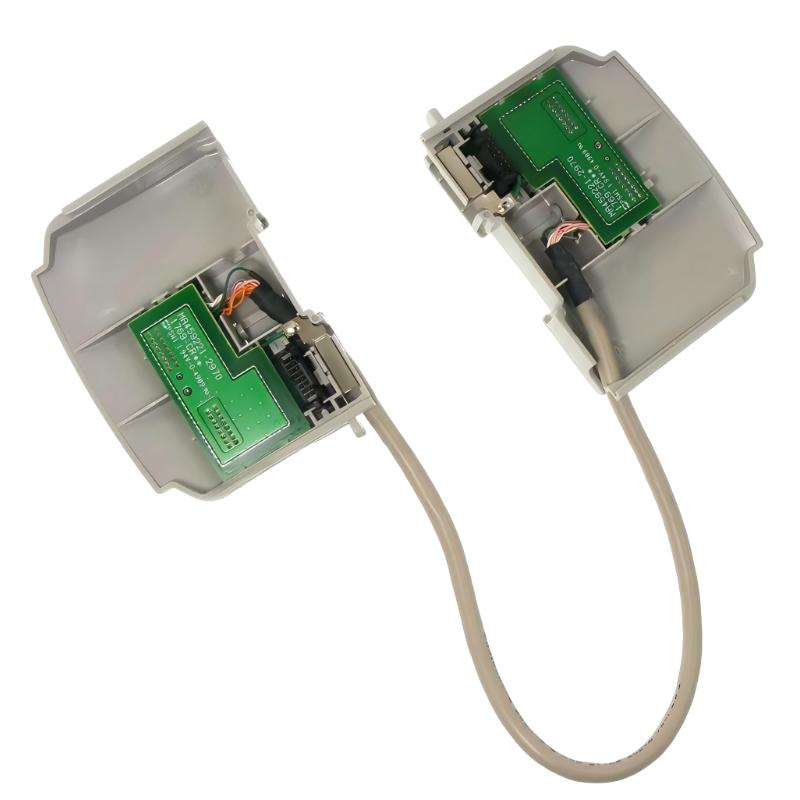

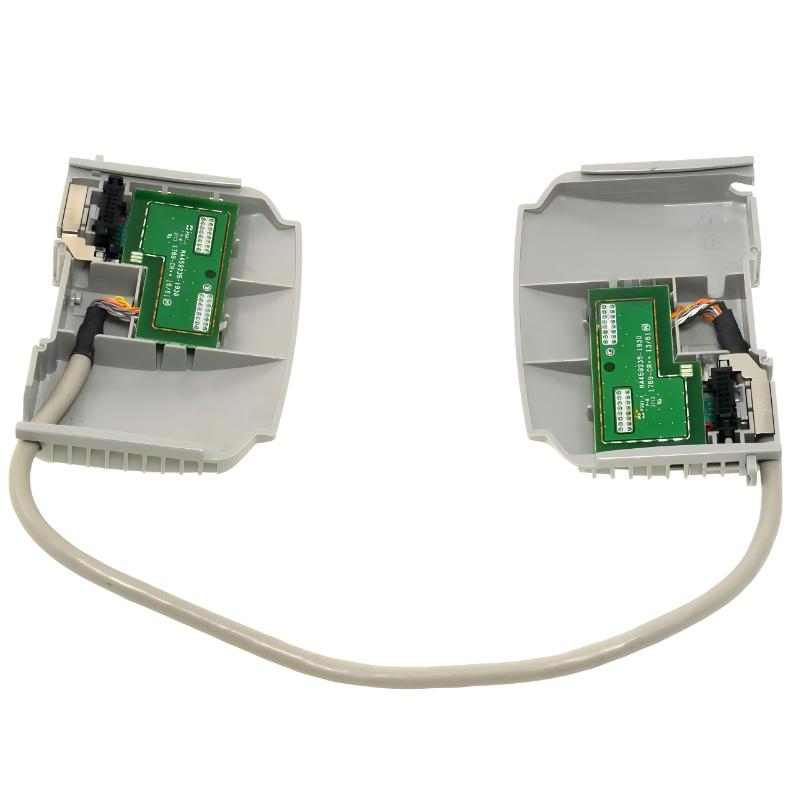

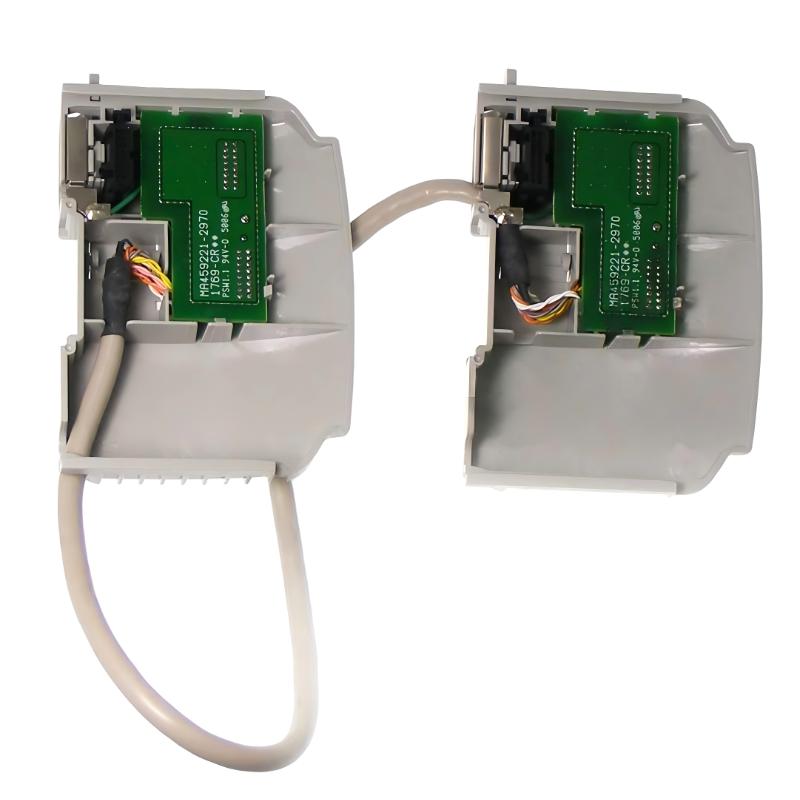

Allen Bradley 1769-CRR1 Industrial Equipment
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
1769-CRR1 Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 1769-CRR1 |
| Product Type | Industrial Equipment |
| Category | Compact I/O Communication Bus Expansion Cable |
| System Compatibility | CompactLogix 1769 / MicroLogix 1500 |
| Function | Extends 1769 I/O backplane communication bus (right-to-right connection) |
| Cable Type | Right Bank-to-Right Bank expansion cable |
| Cable Length | 0.3 m (1 ft) |
| Max Quantity in System | Up to 2 expansion cables per system (forming up to 3 I/O banks) |
| Communication Role | Extends I/O communication only (does NOT extend power) |
| Power Extension | Not supported |
| Connector Type | 1769 bus connector |
| Installation Requirement | System power must be removed before installation/removal |
| ESD Protection | Required during handling |
| Mounting | Integrated between 1769 I/O modules |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5–95% non-condensing |
| Vibration | 10–500 Hz, 5G |
| Shock | Up to 30G (operating) |
| Dimensions | Cable assembly (approx. 0.3 m length) |
| Weight | ~0.28–0.35 kg |
| Lifecycle Status | Discontinued / legacy product |
FAQ
What is the 1769-CRR1 used for?
It is an Industrial Equipment bus expansion cable used to extend the CompactLogix 1769 I/O communication backplane between I/O banks.
What does it actually do?
- Extends I/O communication bus only
- Allows multiple I/O banks in one system
- Enables distributed 1769 module layouts
Does it extend power?
No.
👉 It only extends the communication bus, not the power supply. Each I/O bank requires its own power supply.
How many can be used in one system?
- Maximum 2 expansion cables
- Allows up to 3 I/O banks total
Where is it used?
- CompactLogix modular I/O systems
- Distributed I/O cabinet layouts
- Multi-rack PLC installations
What is its main limitation?
- Does NOT carry power
- Limited system expansion (max 3 banks)
Is it still in production?
No, it is a discontinued legacy accessory, still used in existing installations.
Allen Bradley 1769-CRR1 Industrial Equipment is in stock. Please contact us for a quick quote and competitive pricing.
