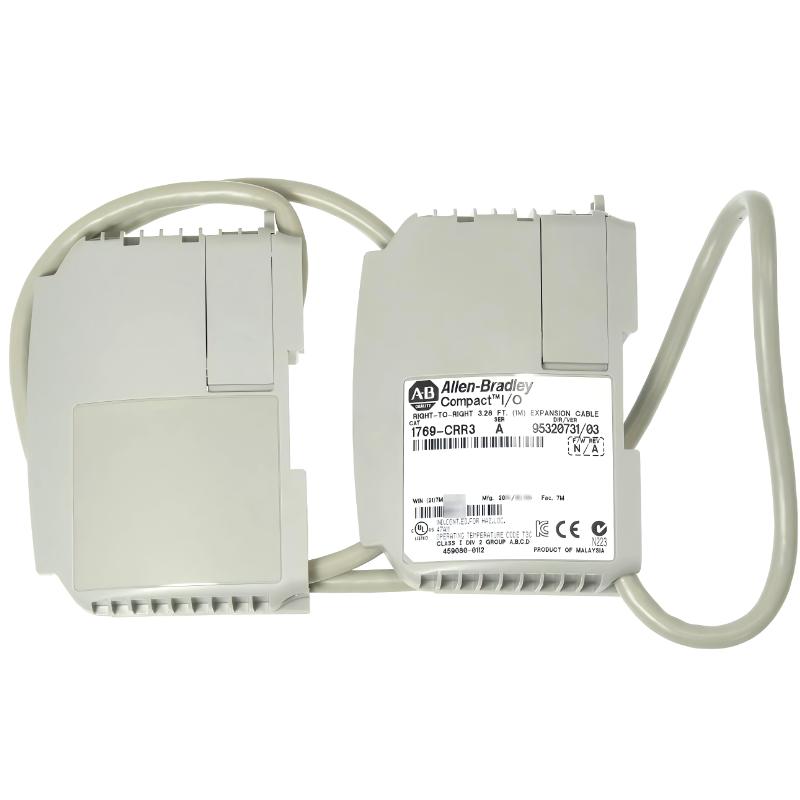

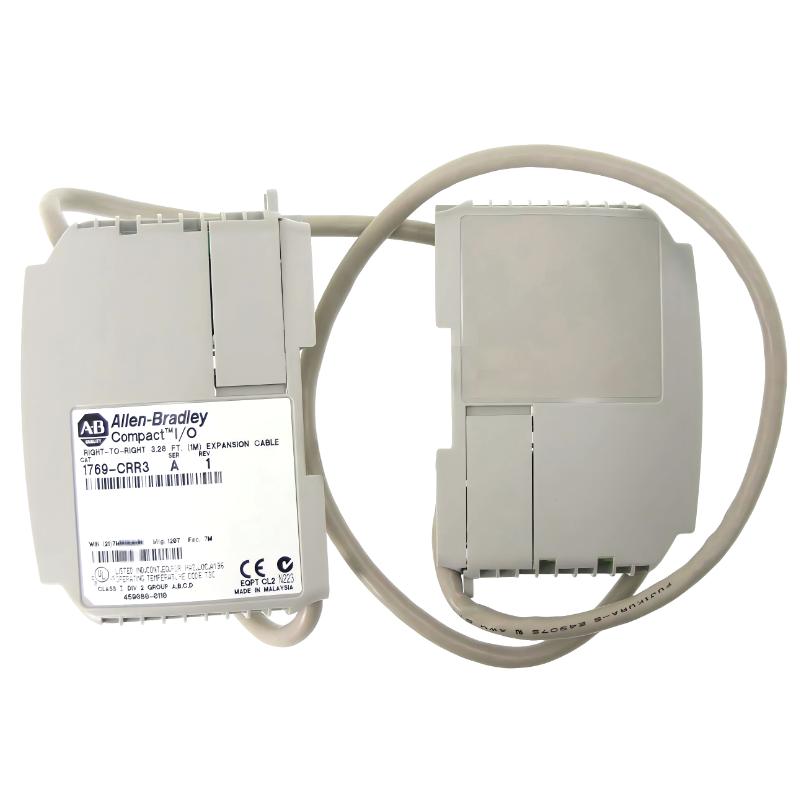

Allen Bradley 1769-CRR3 Industrial Equipment
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
1769-CRR3 Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 1769-CRR3 |
| Product Type | Industrial Equipment |
| Category | Compact I/O Communication Bus Expansion Cable |
| System Compatibility | CompactLogix 1769 / MicroLogix 1500 |
| Function | Extends 1769 I/O backplane communication (right-to-right expansion) |
| Cable Type | Right bank-to-right bank expansion cable |
| Cable Length | 0.9 m (3 ft) |
| Communication Role | Extends I/O communication only (no power transmission) |
| Power Extension | Not supported |
| Max System Configuration | Supports up to 3 I/O banks total (with CRR1/CRR3 combinations depending on layout) |
| Connector Type | 1769 backplane expansion connector |
| Installation Requirement | Power must be removed before installation/removal |
| ESD Protection | Required during handling |
| Mounting | Between 1769 I/O module banks |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5–95% non-condensing |
| Vibration | 10–500 Hz, 5G |
| Shock | Up to 30G (operating) |
| Dimensions | Cable assembly, approx. 0.9 m length |
| Weight | ~0.35–0.5 kg |
| Lifecycle Status | Discontinued / legacy product |
FAQ
What is the 1769-CRR3 used for?
It is an Industrial Equipment I/O expansion cable used to extend the CompactLogix 1769 backplane between remote I/O banks.
What does it do?
- Extends communication between I/O banks
- Enables multi-rack 1769 system configurations
- Allows distributed I/O layouts in one PLC system
Does it carry power?
No.
👉 It only carries backplane communication signals, not power.
What is the difference between 1769-CRR1 and 1769-CRR3?
| Model | Length | Typical Use |
|---|---|---|
| 1769-CRR1 | 0.3 m | Short distance between I/O banks |
| 1769-CRR3 | 0.9 m | Longer distance between I/O banks |
How many can be used in one system?
System supports up to 3 I/O banks total, depending on configuration rules.
Where is it used?
- Modular PLC cabinet systems
- Distributed CompactLogix I/O architectures
- Multi-rack industrial automation systems
What is its main limitation?
- No power transmission
- Limited system expansion topology
- Requires strict installation rules
Is it still in production?
No, it is a discontinued legacy accessory, still used in existing systems.
Allen Bradley 1769-CRR3 Industrial Equipment is in stock. Please contact us for a quick quote and competitive pricing.
